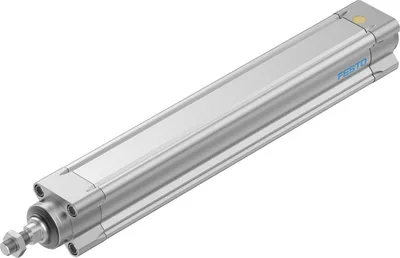

Festo ESBF-...-32- -

Photo may not represent actual item. Refer to name and product specs for all details.

Festo ESBF-...-32- -

Electric cylinder. Available with ball screw drive (size 32 … 100) or lead screw (size 32 … 50). Ball screw: with three spindle pitches for selecting the optimal force-speed ratio. Optional: high corrosion protection, degree of protection IP65, food-safe (see www.festo.com/certificates/ESBF), piston rod extension. Axial or parallel motor mounting. 68 types in stock with short delivery times and modular products for custom variants. Variants recommended for production systems for manufacturing lithium-ion batteries. Fits perfectly into our comprehensive product portfolio of electromechanical actuators, motors, servo drives and control systems. Sustainable thanks to extended life cycle and easier repairs

FestoMFR # ESBF-...-32- -SKU # YLSBOAAVGJPXZOS
Size32
Stroke30, 800
Piston rod threadM10x1.25
Spindle diameter12
Torsional backlash at piston rod +/-0.25
Based on standardISO 15552
Share
Have questions?Chat on WhatsApp

About This Product

Electric cylinder. Available with ball screw drive (size 32 … 100) or lead screw (size 32 … 50). Ball screw: with three spindle pitches for selecting the optimal force-speed ratio. Optional: high corrosion protection, degree of protection IP65, food-safe (see www.festo.com/certificates/ESBF), piston rod extension. Axial or parallel motor mounting. 68 types in stock with short delivery times and modular products for custom variants. Variants recommended for production systems for manufacturing lithium-ion batteries. Fits perfectly into our comprehensive product portfolio of electromechanical actuators, motors, servo drives and control systems. Sustainable thanks to extended life cycle and easier repairs

Festo ESBF-...-32- -

  • Genuine, certified Festo product
  • Fast sourcing through a worldwide supply network
  • Product selection and compatibility support from our technical team
  • Equivalent and alternative product suggestions
  • Quotation and lead time tailored to your request

Specifications

Size32
Stroke30, 800
Piston rod threadM10x1.25
Spindle diameter12
Torsional backlash at piston rod +/-0.25
Based on standardISO 15552
Mounting positionAny
Type of motorStepper motor, Servo motor
Position detectionVia proximity switch
DesignElectric cylinder with ball screw, Electric cylinder with lead screw spindle
Symbol00991941
VariantsMetals with copper, zinc or nickel by mass as main constituent are excluded from use. Exceptions are nickel in steel, chemically nickel-plated surfaces, printed circuit boards, cables, electrical plug
Protection against torque/guideWith plain-bearing guide
Duty cycle100%
Corrosion resistance class CRC2 - Moderate corrosion stress, 3 - high corrosion stress
LABS (PWIS) conformityVDMA24364 zone III
Suitability for the production of Li-ion batteriesSuitable for battery production with reduced Cu/Zn/Ni values (F1a)
Cleanroom suitability, measured according to ISO 14644-14Class 7 according to ISO 14644-1
Storage temperature-20, 60
Suitable for use with foodSee supplementary material information
Relative air humidity0 - 95%
Degree of protectionIP40, IP65
Ambient temperature0, 60
Max. radial force at drive shaft115
Max. feed force Fx1000
Frictional torque independent of load0.1
Type of mountingWith female thread, Or accessories
Interface code, actuatorD32
Note on materialsRoHS compliant
Material coverWrought aluminium alloy, smooth anodised
Material piston rodHigh-alloy stainless steel
Material screwsGalvanised steel
Material ball screw nutBearing steel
Material spindleBearing steel
Material cylinder barrelSmooth-anodised wrought aluminium alloy

Accessories 196

Genuine accessories that can be used with the Festo ESBF-...-32- - motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part noDescriptionCompatible motors
SGS-M10X1,25Rod eye · Mounting accessories
EAHF-V2-32/40-PProfile mounting · Mounting accessories
DAMT-V1-32-ATrunnion mounting kit · Mounting accessories
SMT-8M-A-PS-24V-E-0,3-M8DProximity sensor · Position sensing
SMT-8M-A-NS-24V-E-0,3-M8DProximity sensor · Position sensing
SMT-8M-A-PO-24V-E-7,5-OEProximity sensor · Position sensing
EMMT-AS-60-Servo motor · Motors
EMMT-ST-42-L-RSStepper motor · Motors
SMB-8-FENG-32/40Mounting kit · Position sensing
SMT-8M-A-NO-24V-E-7,5-OEProximity sensor · Position sensing
NEBA-M8G3-U-2.5-N-LE3Connecting cable · Connecting cables
NEBA-M8G3-U-5-N-LE3Connecting cable · Connecting cables
NEBA-M8W3-U-2.5-N-LE3Connecting cable · Connecting cables
NEBA-M8W3-U-5-N-LE3Connecting cable · Connecting cables
NEBA-M8G3-U-2.5-N-M8G3Connecting cable · Connecting cables
NEBA-M8G3-U-5-N-M8G3Connecting cable · Connecting cables
LNZG-32Trunnion support · Mounting accessories
EAMM-A-D32-42AAxial kit · Mounting accessories
EAMM-U-50-D32-42A-78Parallel kit · Mounting accessories
EAMM-U-70-D32-60P-96Parallel kit · Mounting accessories
FK-M10X1,25Self-aligning rod coupler · Piston rod attachments
SG-M10X1,25Rod clevis · Piston rod attachments
CRSG-M10X1,25Rod clevis · Stainless-steel piston-rod attachments
KSG-M10X1,25Coupling piece · Piston rod attachments
KSZ-M10X1,25Coupling piece · Piston rod attachments
QSH-16-12Push-in sleeve · Push-in fittings
HNC-32Foot mounting · Cylinder mountings
SNC-32Swivel flange · Cylinder mountings
SNCB-32Swivel flange · Cylinder mountings
SNCS-32Swivel flange · Cylinder mountings
SNCL-32Swivel flange · Cylinder mountings
ZNCF-32Trunnion flange · Cylinder mountings
CRHNC-32Foot mounting · Cylinder mountings
SNCB-32-R3Swivel flange · Cylinder mountings
QS-G1/4-10Push-in fitting · Push-in fittings
QS-G1/4-12Push-in fitting · Push-in fittings
CRSGS-M10X1,25Rod eye · Stainless-steel piston-rod attachments
CRSMB-8-32/100Mounting kit · Mounting kits for proximity sensors, other sensors
EAMF-A-44A/B-55AMotor flange · Mounting accessories
EAMF-A-44A/B-57AMotor flange · Mounting accessories
EAMM-A-D32-40AAxial kit · Mounting accessories
EAMC-16-20-5-6Coupling · Mounting accessories
EAMC-16-20-6-6Coupling · Mounting accessories
EMGA-40-P-G3-SST-42Gear unit · Mounting accessories
EMGA-40-P-G5-SST-42Gear unit · Mounting accessories
EMGA-60-P-G3-SST-57Gear unit · Mounting accessories
EMGA-60-P-G5-SST-57Gear unit · Mounting accessories
EAMM-A-D32-55AAxial kit · Mounting accessories
EAMM-A-D32-57AAxial kit · Mounting accessories
EAMC-30-32-6-6.35Coupling · Mounting accessories
EAMC-30-32-6-9Coupling · Mounting accessories
EAMK-A-D32-44A/CCoupling housing · Mounting accessories
EAMK-A-D32-28BCoupling housing · Mounting accessories
EAMF-A-28B-40AMotor flange · Mounting accessories
EAMF-A-28B-42AMotor flange · Mounting accessories
EAMM-A-D32-35A-40AAxial kit · Mounting accessories
EAMC-30-32-6-10Coupling · Mounting accessories
SMT-8M-A-PS-24V-E-2,5-OEProximity sensor · Cylinder sensors for direct mounting
SMT-8M-A-PS-24V-E-0,3-M12Proximity sensor · Cylinder sensors for direct mounting
SMT-8M-A-NS-24V-E-2,5-OEProximity sensor · Cylinder sensors for direct mounting
CRSMT-8M-PS-24V-K-5,0-OE-EX2Proximity sensor · Cylinder sensors for direct mounting
CRSMT-8M-PS-24V-K-0,3-M12-EX2Proximity sensor · Cylinder sensors for direct mounting
CRSMT-8M-PS-24V-K-0,3-M8D-EX2Proximity sensor · Cylinder sensors for direct mounting
EAMM-U-50-D32-40A-78-S1Parallel kit · Mounting accessories
EAMM-U-50-D32-42A-78-S1Parallel kit · Mounting accessories
EAMM-U-60-D32-55A-91Parallel kit · Mounting accessories
EAMM-U-60-D32-57A-91Parallel kit · Mounting accessories
EAMM-U-60-D32-55A-91-S1Parallel kit · Mounting accessories
EAMM-U-60-D32-57A-91-S1Parallel kit · Mounting accessories
EAMC-16-20-6-8Coupling · Mounting accessories
EAMC-30-32-6-14Coupling · Mounting accessories
EAMM-A-D32-40A-S1Axial kit · Mounting accessories
EAMM-A-D32-42A-S1Axial kit · Mounting accessories
EAMM-A-D32-55A-S1Axial kit · Mounting accessories
EAMM-A-D32-57A-S1Axial kit · Mounting accessories
DAMD-PS-M6-12-R1Plug screw · Mounting accessories
EAMM-A-D32-40GAxial kit · Mounting accessories
EAMF-A-44C-40G-S1Motor flange · Mounting accessories
EAMF-A-44C-60G/H-S1Motor flange · Mounting accessories
EADS-F-D32-40ASeal-SET · General accessories
EAMM-U-50-D32-32B-78Parallel kit · Mounting accessories
EAMM-U-60-D32-40G-91-S1Parallel kit · Mounting accessories
EAMM-U-60-D32-40G-91Parallel kit · Mounting accessories
SAMH-N8-SR-50Sensor rail · Mounting kits for proximity sensors, other sensors
SAMH-N8-SR-100Sensor rail · Mounting kits for proximity sensors, other sensors
EAMM-A-D32-40PAxial kit · Mounting accessories
EAMF-A-28B-40PMotor flange · Mounting accessories
EAMM-U-50-D32-40P-78Parallel kit · Mounting accessories
EAMM-U-50-D32-40P-78-S1Parallel kit · Mounting accessories
EADS-F-D32-40PSeal-SET · General accessories
EAMM-A-D32-40P-S1Axial kit · Mounting accessories
EAMM-A-D32-35A-40PAxial kit · Mounting accessories
EADS-F-D32-40GSeal-SET · General accessories
EAMM-A-D32-40G-S1Axial kit · Mounting accessories
EMGA-40-P-G3-EAS-40Gear unit · Mounting accessories
EMGA-40-P-G5-EAS-40Gear unit · Mounting accessories
EMGA-60-P-G3-EAS-60Gear unit · Mounting accessories
EMGA-60-P-G5-EAS-60Gear unit · Mounting accessories
CRFK-M10X1,25Self-aligning rod coupler · Stainless-steel piston-rod attachments
EAMM-U-70-D32-60P-96-S1Parallel kit · Mounting accessories
EAMM-U-70-D32-60G-96Parallel kit · Mounting accessories
EAMM-U-70-D32-70A-96Parallel kit · Mounting accessories
EAMM-U-70-D32-60G-96-S1Parallel kit · Mounting accessories
EAMM-U-70-D32-60H-96Parallel kit · Mounting accessories
EAMM-U-70-D32-60H-96-S1Parallel kit · Mounting accessories
EAMM-U-70-D32-70A-96-S1Parallel kit · Mounting accessories
EAHH-V2-32-R1Flange mounting · Cylinder mountings
EADB-V2-32-S10-100Bellows kit · General accessories
EADB-V2-32-S101-200Bellows kit · General accessories
EADB-V2-32-S201-300Bellows kit · General accessories
EADB-V2-32-S301-400Bellows kit · General accessories
EAMM-A-D32-60GAxial kit · Mounting accessories
EAMM-A-D32-60G-S1Axial kit · Mounting accessories
EAMM-A-D32-60HAxial kit · Mounting accessories
EAMM-A-D32-60H-S1Axial kit · Mounting accessories
EAGF-V2-KF-32-Guide unit · Mounting accessories
EAMC-30-32-6-11Coupling · Mounting accessories
EAHH-P2-32Flange mounting · Cylinder mountings
EMMT-AS-60-S-LS-RSServo motor · Electrical accessories
EMMT-AS-60-S-LS-RMServo motor · Electrical accessories
EMMT-AS-60-S-LS-RSBServo motor · Electrical accessories
EMMT-AS-60-S-LS-RMBServo motor · Electrical accessories
EMMT-AS-60-S-HS-RSServo motor · Electrical accessories
EMMT-AS-60-S-HS-RMServo motor · Electrical accessories
EMMT-AS-60-S-HS-RSBServo motor · Electrical accessories
EMMT-AS-60-S-HS-RMBServo motor · Electrical accessories
EMMT-AS-60-M-LS-RSServo motor · Electrical accessories
EMMT-AS-60-M-LS-RMServo motor · Electrical accessories
EMMT-AS-60-M-LS-RSBServo motor · Electrical accessories
EMMT-AS-60-M-LS-RMBServo motor · Electrical accessories
EMMT-AS-60-M-HS-RSServo motor · Electrical accessories
EMMT-AS-60-M-HS-RMServo motor · Electrical accessories
EMMT-AS-60-M-HS-RSBServo motor · Electrical accessories
EMMT-AS-60-M-HS-RMBServo motor · Electrical accessories
EMMT-AS-60-L-LS-RSServo motor · Electrical accessories
EMMT-AS-60-L-LS-RMServo motor · Electrical accessories
EMMT-AS-60-L-LS-RSBServo motor · Electrical accessories
EMMT-AS-60-L-LS-RMBServo motor · Electrical accessories
EMMT-AS-60-L-HS-RSServo motor · Electrical accessories
EMMT-AS-60-L-HS-RMServo motor · Electrical accessories
EMMT-AS-60-L-HS-RSBServo motor · Electrical accessories
EMMT-AS-60-L-HS-RMBServo motor · Electrical accessories
EADS-F-D32-60G/HSeal-SET · General accessories
EAMM-U-50-D32-38AA-78Parallel kit · Mounting accessories
EAMM-U-50-D32-40RA-78Parallel kit · Mounting accessories
EAMM-U-60-D32-57AC-91Parallel kit · Mounting accessories
EAMM-U-60-D32-58AA-91Parallel kit · Mounting accessories
EAMM-U-60-D32-60RB-91Parallel kit · Mounting accessories
EAMM-U-70-D32-68GA-96Parallel kit · Mounting accessories
NEBA-M12G5-U-2.5-N-LE3Connecting cable · Connecting cables
NEBA-M12G5-U-5-N-LE3Connecting cable · Connecting cables
NEBA-M12W5-U-2.5-N-LE3Connecting cable · Connecting cables
NEBA-M12W5-U-5-N-LE3 Connecting cable · Connecting cables
EMGA-40-A-G3-40PGear unit · Mounting accessories
EMGA-40-A-G5-40PGear unit · Mounting accessories
EAMM-A-D32-40RAxial kit · Mounting accessories
EAMM-A-D32-58AAAxial kit · Mounting accessories
EAMM-A-D32-60AAAxial kit · Mounting accessories
EAMM-A-D32-60RAAxial kit · Mounting accessories
EAMM-A-D32-60RAxial kit · Mounting accessories
EAMM-A-D32-50GAAxial kit · Mounting accessories
EAMM-U-60-D32-60RA-91Parallel kit · Mounting accessories
EAMM-U-60-D32-60AA-91Parallel kit · Mounting accessories
EAMM-U-70-D32-70AA-96Parallel kit · Mounting accessories
EAMM-U-60-D32-60P-91Parallel kit · Mounting accessories
EAMM-A-D32-40RAAxial kit · Mounting accessories
SMT-8M-A-NO-24V-E-2,5-OEProximity sensor · Cylinder sensors for direct mounting
EMGA-40-P-G8-EAS-40Gear unit · Mounting accessories
EMGA-40-P-G12-EAS-40Gear unit · Mounting accessories
EMGA-40-P-G20-EAS-40Gear unit · Mounting accessories
EMGA-40-A-G8-40PGear unit · Mounting accessories
EMGA-40-A-G12-40PGear unit · Mounting accessories
EMGA-40-A-G20-40PGear unit · Mounting accessories
EMGA-60-P-G8-EAS-60Gear unit · Mounting accessories
EMGA-60-P-G12-EAS-60Gear unit · Mounting accessories
EMGA-60-P-G20-EAS-60Gear unit · Mounting accessories
EMGA-40-P-G8-SST-42Gear unit · Mounting accessories
EMGA-40-P-G12-SST-42Gear unit · Mounting accessories
EMGA-60-P-G8-SST-57Gear unit · Mounting accessories
EMGA-60-P-G12-SST-57Gear unit · Mounting accessories
EMMT-AS-60-S-LS-RMYServo motor · Electrical accessories
EMMT-AS-60-S-LS-RMYBServo motor · Electrical accessories
EMMT-AS-60-S-HS-RMYServo motor · Electrical accessories
EMMT-AS-60-S-HS-RMYBServo motor · Electrical accessories
EMMT-AS-60-M-LS-RMYServo motor · Electrical accessories
EMMT-AS-60-M-LS-RMYBServo motor · Electrical accessories
EMMT-AS-60-M-HS-RMYServo motor · Electrical accessories
EMMT-AS-60-M-HS-RMYBServo motor · Electrical accessories
EMMT-AS-60-L-LS-RMYServo motor · Electrical accessories
EMMT-AS-60-L-LS-RMYBServo motor · Electrical accessories
EMMT-AS-60-L-HS-RMYServo motor · Electrical accessories
EMMT-AS-60-L-HS-RMYBServo motor · Electrical accessories
EAMM-U-50-D32-40P-48Parallel kit · Mounting accessories
DARP-M10P-FSelf-aligning rod coupler · Stainless-steel piston-rod attachments
EAMM-A-D32-60P-S1-G2Axial kit · Mounting accessories
EAMM-A-D32-60P-G2Axial kit · Mounting accessories

Related Products

YXCF-1
Festo YXCF-1
View Details

Festo

YXCF-1

MFR #YXCF-1

SKU #YLSBOLBVXXHTEQR

YXCF-2
Festo YXCF-2
View Details

Festo

YXCF-2

MFR #YXCF-2

SKU #YLSL6U6NTXCKHGD

YXCF-3
Festo YXCF-3
View Details

Festo

YXCF-3

MFR #YXCF-3

SKU #YLSZVSBYGKJ08DU

YXCF-4
Festo YXCF-4
View Details

Festo

YXCF-4

MFR #YXCF-4

SKU #YLSIOSKDCAW31TC

YXCF-1-B
Festo YXCF-1-B
View Details

Festo

YXCF-1-B

MFR #YXCF-1-B

SKU #YLS8M1FM2JHSBU

YXCF-2-B
Festo YXCF-2-B
View Details

Festo

YXCF-2-B

MFR #YXCF-2-B

SKU #YLSAJENB5OIQWGN

YXCL-1-D
Festo YXCL-1-D
View Details

Festo

YXCL-1-D

MFR #YXCL-1-D

SKU #YLS74NKJF7W65BZ

YXCL-2-D
Festo YXCL-2-D
View Details

Festo

YXCL-2-D

MFR #YXCL-2-D

SKU #YLS1RJGPTBKRKVF

YXCL-1
Festo YXCL-1
View Details

Festo

YXCL-1

MFR #YXCL-1

SKU #YLSFPVVOW7GENV

YXCR-1
Festo YXCR-1
View Details

Festo

YXCR-1

MFR #YXCR-1

SKU #YLSW4HQHDBEYOQG

Featured Products

MY1M20-200AH
SMC MY1M20-200AH
View Details

SMC

MY1M20-200AH

MFR #MY1M20-200AH

SKU #YLSIZ8K8N4KBPBQ

VQC2101R-51
SMC VQC2101R-51
View Details

SMC

VQC2101R-51

MFR #VQC2101R-51

SKU #YLSSEY6NT0YLZ8G

NCMC150-0600-X103US
SMC NCMC150-0600-X103US
View Details

SMC

NCMC150-0600-X103US

MFR #NCMC150-0600-X103US

SKU #YLS468HQT0B65QG

AW20-N02CG-6CZ-B
SMC AW20-N02CG-6CZ-B
View Details

SMC

AW20-N02CG-6CZ-B

MFR #AW20-N02CG-6CZ-B

SKU #YLSNOOF0IBCZ3J3

BC8M12
Brush Research Mfg BC8M12
View Details

Brush Research Mfg

BC8M12

MFR #BC8M12

SKU #YLSA0P5BE6ZJCIW

MXQ25L-40B-M9NZ
SMC MXQ25L-40B-M9NZ
View Details

SMC

MXQ25L-40B-M9NZ

MFR #MXQ25L-40B-M9NZ

SKU #YLSD1VANMRI726Z

NCDMC150-0600-X155US
SMC NCDMC150-0600-X155US
View Details

SMC

NCDMC150-0600-X155US

MFR #NCDMC150-0600-X155US

SKU #YLS8ICKGSKYC93L

NCDGFN25-0100
SMC NCDGFN25-0100
View Details

SMC

NCDGFN25-0100

MFR #NCDGFN25-0100

SKU #YLST0TDV975HLIN

ZCUKQ25-50D
SMC ZCUKQ25-50D
View Details

SMC

ZCUKQ25-50D

MFR #ZCUKQ25-50D

SKU #YLSQ684QXTNN958

MDBB63-100Z
SMC MDBB63-100Z
View Details

SMC

MDBB63-100Z

MFR #MDBB63-100Z

SKU #YLSNBPQBGLI90UX

Related Searches

Festo ESBF-...-32- - priceFesto ESBF-...-32- - quotebuy Festo ESBF-...-32- -ESBF-...-32- - priceESBF-...-32- - stock availabilityFesto spare partsFesto ESBF-...-32- - equivalentFesto ESBF-...-32- - specifications
