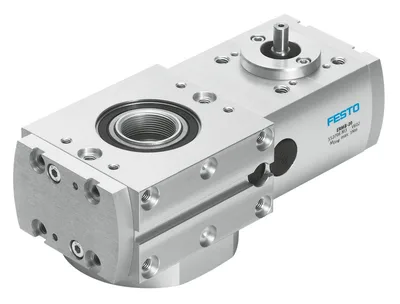

FESTO ERMB-20
Rotary module. Electromechanical rotary module with toothed belt. Compact design. Mounting interfaces on all sides. Stable output shaft bearings. Unlimited and flexible rotation angle. Fits perfectly into our comprehensive product portfolio of electromechanical actuators, motors, servo drives and control systems
Size20
DesignWith toothed belt
Mounting positionAny
Rotation angleInfinite
Gear unit ratio4.5:1
Repetition accuracy±0.03 °
About This Product
Rotary module. Electromechanical rotary module with toothed belt. Compact design. Mounting interfaces on all sides. Stable output shaft bearings. Unlimited and flexible rotation angle. Fits perfectly into our comprehensive product portfolio of electromechanical actuators, motors, servo drives and control systems
FESTO ERMB-20
- Genuine, certified FESTO product
- Fast sourcing through a worldwide supply network
- Product selection and compatibility support from our technical team
- Equivalent and alternative product suggestions
- Quotation and lead time tailored to your request
Specifications
Size20
DesignWith toothed belt
Mounting positionAny
Rotation angleInfinite
Gear unit ratio4.5:1
Repetition accuracy±0.03 °
Position detectionFor inductive sensors
Permissible mass moment of inertia0.1
Product weight850
Drive pinion diameter6
Toothed-belt pitch2
Max. drive output speed300
Max. drive input speed1350
Max. output torque3.15
Max. drive torque0.7
Frictional torque independent of load0.07
Degree of protectionIP20
Sound pressure level32
Ambient temperature-10, 60
LABS (PWIS) conformityVDMA24364 zone III
Note on materialsRoHS compliant
Material housinganodised
Material drive shaftWrought aluminium alloy, anodised
Material drive shaftHigh-alloy stainless steel
Material coverWrought aluminium alloy, anodised
Material toothed beltPolychloroprene with glass fibre
Accessories 65
Genuine accessories that can be used with the FESTO ERMB-20 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.
| Part no | Description | Compatible motors |
|---|---|---|
| EAPS-R1-20-S | Sensing kit · Retainer for proximity sensor | |
| EAMM-A-D32-42A | Axial kit · Mounting accessories | |
| EAMM-A-D32-57A | Axial kit · Mounting accessories | |
| EAPS-R1-20-S-WH | Sensing kit · Retainer for proximity sensor | |
| SIEN-M8B-NO-K-L | Proximity sensor · Proximity sensors | |
| SIEN-M8B-NO-S-L | Proximity sensor · Proximity sensors | |
| SIEN-M8B-PO-K-L | Proximity sensor · Proximity sensors | |
| SIEN-M8B-PO-S-L | Proximity sensor · Proximity sensors | |
| NEBA-M8G3-U-5-N-M8G3 | Connecting cable · Connecting cables | |
| NEBA-M8G3-U-2.5-N-LE3 | Connecting cable · Connecting cables | |
| NEBA-M8G3-U-5-N-LE3 | Connecting cable · Connecting cables | |
| NEBA-M8W3-U-2.5-N-LE3 | Connecting cable · Connecting cables | |
| NEBA-M8W3-U-5-N-LE3 | Connecting cable · Connecting cables | |
| SIEN-M8B-PS-K-L | Proximity sensor · Cylinder sensors for direct mounting | |
| SIEN-M8B-PS-S-L | Proximity sensor · Cylinder sensors for direct mounting | |
| EAMC-30-32-6-8 | Coupling · Mounting accessories | |
| EAMC-30-32-6-6.35 | Coupling · Mounting accessories | |
| EAMK-A-D32-44A/C | Coupling housing · Mounting accessories | |
| EAMK-A-D32-28B | Coupling housing · Mounting accessories | |
| EAMF-A-28B-42A | Motor flange · Mounting accessories | |
| EAMC-30-32-6-6 | Coupling · Mounting accessories | |
| EAMM-A-D32-42A-S1 | Axial kit · Mounting accessories | |
| EAMM-A-D32-57A-S1 | Axial kit · Mounting accessories | |
| EAMM-A-D32-40G | Axial kit · Mounting accessories | |
| EAMM-A-D32-40G-S1 | Axial kit · Mounting accessories | |
| EAMM-A-D32-60G | Axial kit · Mounting accessories | |
| EAMM-A-D32-60G-S1 | Axial kit · Mounting accessories | |
| EMMT-AS-60- | Servo motor · Electrical accessories | |
| EMMT-AS-60-S-LS-RS | Servo motor · Electrical accessories | |
| EMMT-AS-60-S-LS-RM | Servo motor · Electrical accessories | |
| EMMT-AS-60-S-LS-RSB | Servo motor · Electrical accessories | |
| EMMT-AS-60-S-LS-RMB | Servo motor · Electrical accessories | |
| EMMT-AS-60-S-HS-RS | Servo motor · Electrical accessories | |
| EMMT-AS-60-S-HS-RM | Servo motor · Electrical accessories | |
| EMMT-AS-60-S-HS-RSB | Servo motor · Electrical accessories | |
| EMMT-AS-60-S-HS-RMB | Servo motor · Electrical accessories | |
| EMMT-AS-60-M-LS-RS | Servo motor · Electrical accessories | |
| EMMT-AS-60-M-LS-RM | Servo motor · Electrical accessories | |
| EMMT-AS-60-M-LS-RSB | Servo motor · Electrical accessories | |
| EMMT-AS-60-M-LS-RMB | Servo motor · Electrical accessories | |
| EMMT-AS-60-M-HS-RS | Servo motor · Electrical accessories | |
| EMMT-AS-60-M-HS-RM | Servo motor · Electrical accessories | |
| EMMT-AS-60-M-HS-RSB | Servo motor · Electrical accessories | |
| EMMT-AS-60-M-HS-RMB | Servo motor · Electrical accessories | |
| EMMT-AS-60-L-LS-RS | Servo motor · Electrical accessories | |
| EMMT-AS-60-L-LS-RM | Servo motor · Electrical accessories | |
| EMMT-AS-60-L-LS-RSB | Servo motor · Electrical accessories | |
| EMMT-AS-60-L-LS-RMB | Servo motor · Electrical accessories | |
| EMMT-AS-60-L-HS-RS | Servo motor · Electrical accessories | |
| EMMT-AS-60-L-HS-RM | Servo motor · Electrical accessories | |
| EMMT-AS-60-L-HS-RSB | Servo motor · Electrical accessories | |
| EMMT-AS-60-L-HS-RMB | Servo motor · Electrical accessories | |
| ZBH-7-B | Centring sleeve · Mounting accessories | |
| EMMT-AS-60-S-LS-RMY | Servo motor · Electrical accessories | |
| EMMT-AS-60-S-LS-RMYB | Servo motor · Electrical accessories | |
| EMMT-AS-60-S-HS-RMY | Servo motor · Electrical accessories | |
| EMMT-AS-60-S-HS-RMYB | Servo motor · Electrical accessories | |
| EMMT-AS-60-M-LS-RMY | Servo motor · Electrical accessories | |
| EMMT-AS-60-M-LS-RMYB | Servo motor · Electrical accessories | |
| EMMT-AS-60-M-HS-RMY | Servo motor · Electrical accessories | |
| EMMT-AS-60-M-HS-RMYB | Servo motor · Electrical accessories | |
| EMMT-AS-60-L-LS-RMY | Servo motor · Electrical accessories | |
| EMMT-AS-60-L-LS-RMYB | Servo motor · Electrical accessories | |
| EMMT-AS-60-L-HS-RMY | Servo motor · Electrical accessories | |
| EMMT-AS-60-L-HS-RMYB | Servo motor · Electrical accessories |
Related Products
View Details
Festo
YXCF-2
MFR #YXCF-2
SKU #YLSL6U6NTXCKHGD
View Details
Festo
YXCF-3
MFR #YXCF-3
SKU #YLSZVSBYGKJ08DU
View Details
Festo
YXCF-4
MFR #YXCF-4
SKU #YLSIOSKDCAW31TC
View Details
Festo

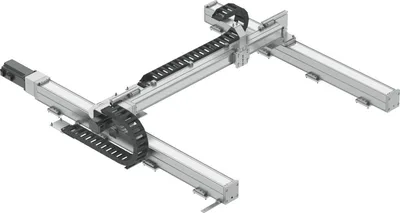

YXCF-1-B
MFR #YXCF-1-B
SKU #YLS8M1FM2JHSBU
View Details
Festo
YXCF-2-B
MFR #YXCF-2-B
SKU #YLSAJENB5OIQWGN
View Details
Festo

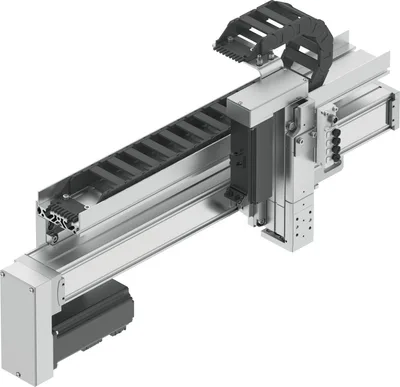

YXCL-1-D
MFR #YXCL-1-D
SKU #YLS74NKJF7W65BZ
View Details
Festo
YXCL-2-D
MFR #YXCL-2-D
SKU #YLS1RJGPTBKRKVF
View Details
Festo

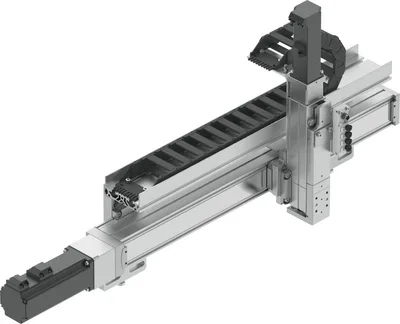

YXCL-1
MFR #YXCL-1
SKU #YLSFPVVOW7GENV
View Details
Festo

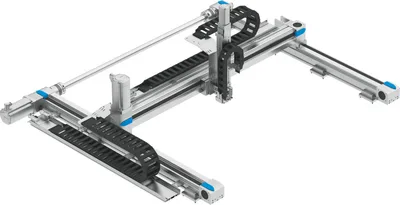

YXCR-1
