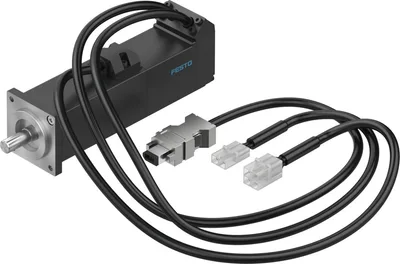

Festo EMMB-AS-40-01-S30SB

Servo motor. Basic series - for cost-sensitive, simple positioning tasks. A selection of 3 motor sizes in up to 2 lengths. Brushless, permanently magnetized synchronous servo motor. Digital absolute displacement encoder, single turn; multi-turn optional. Sturdy, dynamic, accurate. Optimised connection technology. Degree of protection IP65 (for motor housing and cable connections (without plug connectors)) and up to IP54 (on the motor shaft with shaft seal). Optionally with holding brake. Fits perfectly into our comprehensive product portfolio of electromechanical actuators, motors, servo drives and control systems

FestoMFR # EMMB-AS-40-01-S30SBSKU # YLSINZLFOMLRCPX

Ambient temperature-15, 40

Max. installation height4000

Storage temperature-20, 55

Relative air humidity0 - 90%

Conforms to standardIEC 60034

Temperature class as per EN 60034-1F

Have questions?Chat on WhatsApp

About This Product

Festo EMMB-AS-40-01-S30SB

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Ambient temperature-15, 40

Note on ambient temperatureUp to 60°C with derating of -1.5% per degree Celsius

Max. installation height4000

Note on max. installation heightAs of 1,000 m: only with derating of -1.0% per 100 m

Storage temperature-20, 55

Relative air humidity0 - 90%

Conforms to standardIEC 60034

Temperature class as per EN 60034-1F

Max. winding temperature155

Rating class as per EN 60034-1S1

Temperature monitoringDigital motor temperature transmission via Nikon A format

Motor type to EN 60034-7IM V1, IM V3

Mounting positionAny

Degree of protectionIP65

Note on degree of protectionIP40 for motor shaft without rotary shaft seal, IP54 for motor shaft with rotary shaft seal, IP65 for motor housing without connection technology

Concentricity, coaxiality, axial runout to DIN SPEC 42955N

Balance qualityG 2.5

Bearing lifetime under nominal conditions20000

Electrical connection 1, connection typePlug

Electrical connection 1, connector systemConnection pattern RE

Electrical connection 1, number of connections/cores6

Electrical connection 1, connection pattern00995792

Pollution degree2

Note on materialsRoHS compliant

Corrosion resistance class CRC0 - No corrosion stress

LABS (PWIS) conformityVDMA24364 zone III

Vibration resistanceTransport application test with severity level 2 to FN 942017-4 and EN 60068-2-6

Shock resistanceShock test with severity level 2 to FN 942017-5 and EN 60068-2-27

Approvalc UL us - Recognised (Oil)

CE mark (see declaration of conformity)To EU EMC Directive, To EU Low Voltage Directive, In accordance with EU RoHS Directive

UKCA marking (see declaration of conformity)To UK RoHS instructions, To UK regulations for electrical equipment

Certificate issuing authorityUL E342973

Nominal operating voltage DC300

Nominal voltage DC300

Type of winding switchStar inside

Number of pole pairs5

Standstill torque0.352

Nominal torque0.32

Peak torque0.96

Nominal rotary speed3000

Max. rotational speed6000

Max. mechanical speed10000

Nominal power rating of motor100

Continuous stall current1.43

Nominal motor current1.3

Peak current3.9

Motor constant0.268

Voltage constant, phase-to-phase16.2

Phase-phase winding resistance7.9

Phase-phase winding inductance10.5

Electric time constant1.33

Measuring flange175 x 200 x 10 mm, aluminium

Total mass moment of inertia of output0.063

Product weight770

Permissible axial shaft load60

Permissible radial shaft load120

Rotor position sensorAbsolute encoder, single turn

rotor position sensor, manufacturer designationSAR-ML50AJC00

rotor position sensor, absolute detectable revolutions1

Rotor position encoder interfaceNikon A-format

Rotor position sensor, encoder measuring principleOptical

rotor position sensor, DC operating voltage5

rotor position sensor, DC operating voltage range4.75, 5.25

rotor position sensor, position values per revolution1048576

Rotor position transducer resolution20

rotor position sensor, system accuracy of angle measurement-120, 120

Brake holding torque0.32

Operating voltage DC for brake24

Power consumption, brake5.9

Accessories 68

Genuine accessories that can be used with the Festo EMMB-AS-40-01-S30SB motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
NEBM-REG6-E-2.5-Q14N-REG6	Encoder cable · Connecting cables
NEBM-REG6-E-5-Q14N-REG6	Encoder cable · Connecting cables
NEBM-REG6-E-7.5-Q14N-REG6	Encoder cable · Connecting cables
NEBM-H6G4-E-5-Q13N-LE4	Motor cable · Connecting cables
NEBM-H6G4-E-7.5-Q13N-LE4	Motor cable · Connecting cables
NEFM-REG6-K-0.5-B-R3G8	Adapter · Connecting cables
NEBM-H6G4-E-10-Q13N-LE4	Motor cable · Connecting cables
NEFM-REG6-K-0.5-R3G8	Adapter · Connecting cables
EMGA-40-P-G3-EAS-40	Gear unit · Gear unit
EMGA-40-P-G5-EAS-40	Gear unit · Gear unit
NEFM-REG6-K-0.5-B-REG6	Adapter · Connecting cables
EAMM-A-D32-40G	Axial kit · Mounting accessories
EAMM-A-D32-40P	Axial kit · Mounting accessories
EAMM-A-T42-40G	Axial kit · Mounting accessories
EAMM-A-T42-40P	Axial kit · Mounting accessories
EAMM-U-50-D32-40P-78	Parallel kit · Mounting accessories
EAMM-U-50-D32-40P-78-S1	Parallel kit · Mounting accessories
EAMM-U-50-S38-40P-78	Parallel kit · Mounting accessories
EAMM-A-D32-40P-S1	Axial kit · Mounting accessories
EAMM-A-V25-40P	Axial kit · Mounting accessories
EAMM-A-V32-40P	Axial kit · Mounting accessories
EAMM-A-S38-40G-G2	Axial kit · Mounting accessories
EAMM-A-S48-40G-G2	Axial kit · Mounting accessories
EAMM-A-D19-40P	Axial kit · Mounting accessories
EAMM-A-P5-28B-40P	Axial kit · Mounting accessories
EAMM-A-L48-40G	Axial kit · Mounting accessories
EAMM-A-M43-40G	Axial kit · Mounting accessories
EAMM-A-M48-40G	Axial kit · Mounting accessories
EAMM-A-N38-40G	Axial kit · Mounting accessories
EAMM-A-D40-40G-G2	Axial kit · Mounting accessories
EAMM-A-D40-40G-S1	Axial kit · Mounting accessories
EAMM-A-S38-40P-G2	Axial kit · Mounting accessories
EAMM-A-L27-40G	Axial kit · Mounting accessories
EAMD-19-15-10-8X10	Coupling · Mounting accessories
EAMF-A-L27-40G	Motor flange · Mounting accessories
EAMM-A-P8-38A-40P	Axial kit · Mounting accessories
EAMM-A-D32-35A-40P	Axial kit · Mounting accessories
NEBM-H6G4-K-2.5-Q13N-LE4	Motor cable · Electrical accessories
NEBM-H6G4-K-5-Q13N-LE4	Motor cable · Electrical accessories
NEBM-H6G4-K-7.5-Q13N-LE4	Motor cable · Electrical accessories
NEBM-H6G4-K-10-Q13N-LE4	Motor cable · Electrical accessories
NEBM-H6G4-E-2.5-Q13N-LE4	Motor cable · Electrical accessories
NEBM-H7G2-K-2.5-Q14N-LE2	Connecting cable · Connecting cables
NEBM-H7G2-K-5-Q14N-LE2	Connecting cable · Connecting cables
NEBM-H7G2-K-7.5-Q14N-LE2	Connecting cable · Connecting cables
NEBM-H7G2-K-10-Q14N-LE2	Connecting cable · Connecting cables
NEBM-H7G2-E-2.5-Q14N-LE2	Connecting cable · Connecting cables
NEBM-H7G2-E-5-Q14N-LE2	Connecting cable · Connecting cables
NEBM-H7G2-E-7.5-Q14N-LE2	Connecting cable · Connecting cables
NEBM-H7G2-E-10-Q14N-LE2	Connecting cable · Connecting cables
NEBM-REG6-K-2.5-Q14N-REG6	Encoder cable · Electrical accessories
NEBM-REG6-K-5-Q14N-REG6	Encoder cable · Electrical accessories
NEBM-REG6-K-7.5-Q14N-REG6	Encoder cable · Electrical accessories
NEBM-REG6-K-10-Q14N-REG6	Encoder cable · Electrical accessories
NEBM-REG6-E-10-Q14N-REG6	Encoder cable · Electrical accessories
NEBM-REG6-E-15-Q14N-REG6	Encoder cable · Electrical accessories
NEBM-REG6-E-20-Q14N-REG6	Encoder cable · Electrical accessories
NEBM-REG6-E-25-Q14N-REG6	Encoder cable · Electrical accessories
NEBM-H6G4-E-15-Q13N-LE4	Motor cable · Electrical accessories
NEBM-H6G4-E-20-Q13N-LE4	Motor cable · Electrical accessories
NEBM-H6G4-E-25-Q13N-LE4	Motor cable · Electrical accessories
NEBM-H7G2-E-15-Q14N-LE2	Connecting cable · Connecting cables
NEBM-H7G2-E-20-Q14N-LE2	Connecting cable · Connecting cables
NEBM-H7G2-E-25-Q14N-LE2	Connecting cable · Connecting cables
EMGA-40-P-G8-EAS-40	Gear unit · Mounting accessories
EMGA-40-P-G12-EAS-40	Gear unit · Mounting accessories
EMGA-40-P-G20-EAS-40	Gear unit · Mounting accessories
EAMM-U-50-D32-40P-48	Parallel kit · Mounting accessories
