How can I get a price quote for Festo NEFM-REG6-K-0.5-B-R3G8?

You can request a fast quote for Festo NEFM-REG6-K-0.5-B-R3G8 from Yılsa Engineering. Reference part number YLSHCBMVXF3UXUL. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Festo NEFM-REG6-K-0.5-B-R3G8 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Festo NEFM-REG6-K-0.5-B-R3G8 genuine and new?

Yes. This Festo product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Festo NEFM-REG6-K-0.5-B-R3G8?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

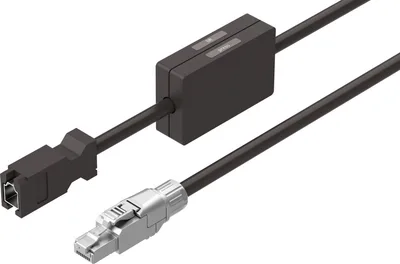

Festo NEFM-REG6-K-0.5-B-R3G8

Adapter. Pre-assembled. Adapter for encoder cable. With PVC cable. Ambient temperature -40 ... +80 °C

FestoMFR # NEFM-REG6-K-0.5-B-R3G8SKU # YLSHCBMVXF3UXUL

Additional functionsfor battery

Product weight64

Electrical connection 1, functionField device side

Electrical connection 1, designSquare

Electrical connection 1, connection typeSocket

Electrical connection 1, cable outletStraight

Have questions?Chat on WhatsApp

About This Product

Adapter. Pre-assembled. Adapter for encoder cable. With PVC cable. Ambient temperature -40 ... +80 °C

Festo NEFM-REG6-K-0.5-B-R3G8

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Additional functionsfor battery

Product weight64

Electrical connection 1, functionField device side

Electrical connection 1, designSquare

Electrical connection 1, connection typeSocket

Electrical connection 1, cable outletStraight

Electrical connection 1, connector systemConnection pattern RE

Electrical connection 1, number of connections/cores6

Electrical connection 1, used connections/cores4

Electrical connection 1, connection pattern00995793

Electrical connection 2, functionControl side

Electrical connection 2, designSquare

Electrical connection 2, connection typePlug

Electrical connection 2, cable outletStraight

Electrical connection 2, connector systemRJ45

Electrical connection 2, number of connections/cores8

Electrical connection 2, used connections/cores6

Electrical connection 2, connection pattern00995653

Operational voltage range DC0, 30

Operational voltage range AC0, 30

Current rating at 40° C1.6

Immunity to surge2

ShieldingYes

Cable length0.5

Cable characteristicStandard

Test conditions cableTest conditions on request

Bending radius, fixed cable68

Cable diameter6.8

Cable structure4 x (2 x 0.081 mm²) + 1 x (2 x 0.205 mm²)

Nominal cross section conductor0.205

Conductor nominal cross sectionAWG24, AWG28

Degree of protectionIP20

Note on degree of protectionIn mounted state

Ambient temperature-40, 80

CE mark (see declaration of conformity)In accordance with EU RoHS Directive

UKCA marking (see declaration of conformity)To UK RoHS instructions

LABS (PWIS) conformityVDMA24364 zone III

Note on materialsRoHS compliant

Pollution degree3

Corrosion resistance class CRC0 - No corrosion stress

Material cable sheathPVC

Cable sheath colourBlack

Material housingPVC

Housing colourGrey

Material insulating sheathPVC
