How can I get a price quote for Festo NEBM-H7G2-E-20-Q14N-LE2?

You can request a fast quote for Festo NEBM-H7G2-E-20-Q14N-LE2 from Yılsa Engineering. Reference part number YLSNYCAAFNZJC58. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Festo NEBM-H7G2-E-20-Q14N-LE2 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Festo NEBM-H7G2-E-20-Q14N-LE2 genuine and new?

Yes. This Festo product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Festo NEBM-H7G2-E-20-Q14N-LE2?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

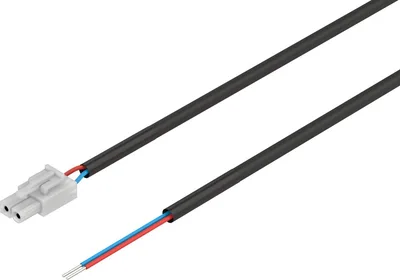

Festo NEBM-H7G2-E-20-Q14N-LE2

Connecting cable. For stepper and servo motors. For motor controllers. For servo drive. Can be used in a wide temperature range. Suitable for energy chains. Fits perfectly into our comprehensive product portfolio of electromechanical actuators, motors, servo drives and control systems

FestoMFR # NEBM-H7G2-E-20-Q14N-LE2SKU # YLSNYCAAFNZJC58

Cable designationWithout inscription label holder

Electrical connection 1, functionField device side

Electrical connection 1, designSquare

Electrical connection 1, connection typeSocket

Electrical connection 1, cable outletStraight

Electrical connection 2, functionControl side

Have questions?Chat on WhatsApp

About This Product

Festo NEBM-H7G2-E-20-Q14N-LE2

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Cable designationWithout inscription label holder

Electrical connection 1, functionField device side

Electrical connection 1, designSquare

Electrical connection 1, connection typeSocket

Electrical connection 1, cable outletStraight

Electrical connection 1, connector systemConnection pattern H7, coded for motor brake

Electrical connection 1, number of connections/cores2

Electrical connection 1, used connections/cores2

Electrical connection 1, connection pattern00995791

Electrical connection 2, functionControl side

Electrical connection 2, connection typeCable

Electrical connection 2, connector systemOpen end

Electrical connection 2, number of connections/cores2

Electrical connection 2, used connections/cores2

Operational voltage range DC0, 30

Operational voltage range AC0, 30

Current rating at 40° C5

Immunity to surge2

Cable length20

Cable characteristicSuitable for energy chains

Test conditions cableTest conditions on request

Bending radius, fixed cable27

Bending radius, moving cable55

Cable diameter5.1

Cable structure2 x 0.51 mm²

Nominal cross section conductor0.51

Conductor nominal cross sectionAWG20

Wire endsWire ferrule

Degree of protectionIP20

Note on degree of protectionIn mounted state

Ambient temperature-40, 80

Ambient temperature with moving cable-10, 80

CE mark (see declaration of conformity)In accordance with EU RoHS Directive

UKCA marking (see declaration of conformity)To UK RoHS instructions

LABS (PWIS) conformityVDMA24364 zone III

Note on materialsRoHS compliant

Pollution degree3

Corrosion resistance class CRC0 - No corrosion stress

Material cable sheathPVC

Cable sheath colourBlack

Material housingPA

Housing colourWhite

Material insulating sheathPVC
