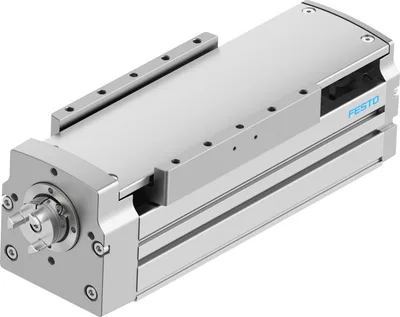

Festo ELGT-BS-90- -

Ball screw axis. Great resilience and rigidity due to double-acting guide. Compact design. With ball screw drive. Optimal ratio between installation space and working space due to the optimised axis design. Simple integration of motors with mounting kits. Optimised for use in the electronics and automotive industry. Fits perfectly into our comprehensive product portfolio of electromechanical actuators, motors, servo drives and control systems

FestoMFR # ELGT-BS-90- -SKU # YLS5WE5PE0IXUS0
Working stroke50, 1000
Size90
Stroke reserve0
Reversing backlash theoretical150
Spindle diameter15, 16
Spindle pitch10, 20
Share
Have questions?Chat on WhatsApp

About This Product

Ball screw axis. Great resilience and rigidity due to double-acting guide. Compact design. With ball screw drive. Optimal ratio between installation space and working space due to the optimised axis design. Simple integration of motors with mounting kits. Optimised for use in the electronics and automotive industry. Fits perfectly into our comprehensive product portfolio of electromechanical actuators, motors, servo drives and control systems

Festo ELGT-BS-90- -

  • Genuine, certified Festo product
  • Fast sourcing through a worldwide supply network
  • Product selection and compatibility support from our technical team
  • Equivalent and alternative product suggestions
  • Quotation and lead time tailored to your request

Specifications

Working stroke50, 1000
Size90
Stroke reserve0
Reversing backlash theoretical150
Spindle diameter15, 16
Spindle pitch10, 20
Mounting positionAny
GuideRecirculating ball bearing guide
DesignElectromechanical linear axis, With ball screw
Type of motorStepper motor, Servo motor
Spindle typeBall screw
Symbol00991211
VariantsMetals with copper, zinc or nickel by mass as main constituent are excluded from use. Exceptions are nickel in steel, chemically nickel-plated surfaces, printed circuit boards, cables, electrical plug
Max. acceleration15
Max. rotational speed3000
Max. speed0.5, 1
Repetition accuracy±0.02 mm
Duty cycle100%
LABS (PWIS) conformityVDMA24364 zone III
Suitability for the production of Li-ion batteriesSuitable for battery production with reduced Cu/Zn/Ni values (F1a)
Cleanroom suitability, measured according to ISO 14644-14Class 6 according to ISO 14644-1
Degree of protectionIP20
Ambient temperature0, 50
Continuous feed force810, 1054
2nd moment of area Iy631000
2nd moment of area Iz1948000
Idle torque at vmax0.2, 0.3
Idle torque at vmin0.04, 0.08
Max. force Fy4710
Max. force Fz5600
Fy at theoretical life value of 100 km (only guide consideration)17352
Fz at theoretical life value of 100 km (only guide consideration)20631
Max. moment Mx65
Max. moment My51
Max. moment Mz51
Mx at theoretical life value of 100 km (only guide consideration)239
My at theoretical life value of 100 km (only guide consideration)188
Mz at theoretical life value of 100 km (only guide consideration)188
Max. radial force at drive shaft290
Max. feed force Fx810, 1054
Torsional mass moment of inertia It151000
Mass moment of inertia JH per metre of stroke0.2522, 0.3453
Mass moment of inertia JL per kg of working load0.0253, 0.1013
Mass moment of inertia JO0.1252, 0.2291
Mass moment of inertia JW for additional slide0.0358, 0.1435
Feed constant10, 20
Moving mass1628, 1645
Product weight4865, 14802
Weight of additional slide1416
Basic weight for 0 mm stroke4353, 4380
Additional weight per 10 mm stroke104
Dynamic deflection (moving load)0.05% of the axis length, max. 0.5 mm
Static deflection (load in standstill)0.1% of the axis length
Interface code, actuatorT46
Material end capPainted die cast aluminium
Material profileAnodised wrought aluminium alloy
Note on materialsRoHS compliant
Material drive coverPainted die cast aluminium
Material guide slideSteel
Material guide railSteel
Material slideAnodised wrought aluminium alloy
Material ball screw nutSteel
Material spindleSteel
