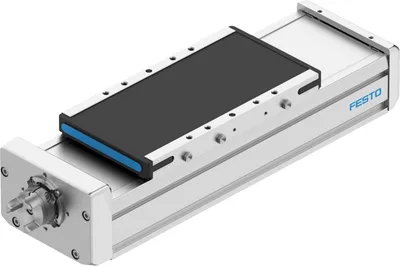

Festo ELGD-BS-KF-WD-100-100-0H-20P-L
Ball screw axis. Reduced profile heights offer smaller installation dimensions for handling systems and applications that do not require such high feed forces. For applications requiring precision. High reliability and long service life. For high loads. 30% lighter, while rigidity and guide load capacity are still similar to the axis in the standard design. Fits perfectly into our comprehensive product portfolio of electromechanical actuators, motors, servo drives and control systems
Working stroke100
Size100
Stroke reserve0
Ball screw reversing backlash±0.02 mm
Spindle diameter10
Spindle pitch20
About This Product
Ball screw axis. Reduced profile heights offer smaller installation dimensions for handling systems and applications that do not require such high feed forces. For applications requiring precision. High reliability and long service life. For high loads. 30% lighter, while rigidity and guide load capacity are still similar to the axis in the standard design. Fits perfectly into our comprehensive product portfolio of electromechanical actuators, motors, servo drives and control systems
Festo ELGD-BS-KF-WD-100-100-0H-20P-L
- Genuine, certified Festo product
- Fast sourcing through a worldwide supply network
- Product selection and compatibility support from our technical team
- Equivalent and alternative product suggestions
- Quotation and lead time tailored to your request
Specifications
Working stroke100
Size100
Stroke reserve0
Ball screw reversing backlash±0.02 mm
Spindle diameter10
Spindle pitch20
Mounting positionAny
GuideRecirculating ball bearing guide
DesignElectromechanical linear axis, With ball screw
Type of motorStepper motor, Servo motor
Spindle typeBall screw
Symbol00991211
Functional principle of measuring systemIncremental
Position detectionFor inductive sensors
Max. acceleration15
Max. rotational speed8000
Max. speed2.67
Repetition accuracy±0.01 mm
Duty cycle100%
LABS (PWIS) conformityVDMA24364-C1-L
Suitability for the production of Li-ion batteriesSuitable for battery production with reduced Cu/Zn/Ni values (F1a)
Cleanroom suitability, measured according to ISO 14644-14Class 4 according to ISO 14644-1 (with vacuum extraction), Class 7 according to ISO 14644-1
Storage temperature-20, 60
Degree of protectionIP40
Ambient temperature0, 60
Impact energy in end positions0.001
Note on the impact energy in the end positionsAt maximum homing speed of 0.01 m/s
2nd moment of area Iy347100
2nd moment of area Iz2268000
Idle torque at vmax0.262
Idle torque at vmin0.089
Max. force Fy4400
Max. force Fz4400
Max. force Fy total axis4092
Max. force Fz total axis2250
Fy at theoretical life value of 100 km (only guide consideration)18415
Fz at theoretical life value of 100 km (only guide consideration)18415
Max. moment Mx140
Max. moment My230
Max. moment Mz220
Max. moment Mx total axis160
Max. moment My total axis191
Max. moment Mz total axis191
Mx at theoretical life value of 100 km (only guide consideration)645
My at theoretical life value of 100 km (only guide consideration)720
Mz at theoretical life value of 100 km (only guide consideration)720
Distance between slide surface and guide centre47
Max. radial force at drive shaft180
Max. feed force Fx1100
Torsional mass moment of inertia It108900
Mass moment of inertia JH per metre of stroke0.07554
Mass moment of inertia JL per kg of working load0.101
Mass moment of inertia JO0.05632
Feed constant20
Reference service life5000
Maintenance intervalLifetime lubrication
Moving mass1185
Product weight3569
Basic weight for 0 mm stroke2979
Additional weight per 10 mm stroke59
Dynamic deflection (moving load)0.05% of the axis length, max. 0.5 mm
Static deflection (load in standstill)0.1% of the axis length
Interface code, actuatorT42
Material end capAluminium gravity die-cast, painted
Material profileAnodised wrought aluminium alloy
Note on materialsRoHS compliant
Material cover tapeHigh-alloy stainless steel
Material drive coverAluminium gravity die-cast, painted
Material guide slideSteel
Material guide railSteel
Material slideWrought aluminium alloy
Material ball screw nutSteel
Material spindleSteel
Accessories 124
Genuine accessories that can be used with the Festo ELGD-BS-KF-WD-100-100-0H-20P-L motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.
| Part no | Description | Compatible motors |
|---|---|---|
| SIEN-M8B-NS-K-L | Proximity sensor · Position sensing | |
| SIEN-M8B-PS-K-L | Proximity sensor · Position sensing | |
| SIEN-M8B-NS-S-L | Proximity sensor · Position sensing | |
| SIEN-M8B-PS-S-L | Proximity sensor · Position sensing | |
| SIEN-M8B-NO-K-L | Proximity sensor · Position sensing | |
| SIEN-M8B-NO-S-L | Proximity sensor · Position sensing | |
| SIEN-M8B-PO-K-L | Proximity sensor · Position sensing | |
| SIEN-M8B-PO-S-L | Proximity sensor · Position sensing | |
| NEBA- | Connecting cable · Connecting cables | |
| NEBA-M8G3-U-1-N-LE3 | Connecting cable · Connecting cables | |
| NEBA-M8G3-U-2.5-N-LE3 | Connecting cable · Connecting cables | |
| NEBA-M8G3-U-5-N-LE3 | Connecting cable · Connecting cables | |
| NEBA-M8G3-U-10-N-LE3 | Connecting cable · Connecting cables | |
| NEBA-M8G3-U-20-N-LE3 | Connecting cable · Connecting cables | |
| NEBA-M8W3-U-2.5-N-LE3 | Connecting cable · Connecting cables | |
| NEBA-M8W3-U-5-N-LE3 | Connecting cable · Connecting cables | |
| NEBA-M8W3-U-10-N-LE3 | Connecting cable · Connecting cables | |
| NEBA-M8W3P-U-2.5-N-LE3 | Connecting cable · Connecting cables | |
| NEBA-M8W3P-U-5-N-LE3 | Connecting cable · Connecting cables | |
| NEBA-M8W3N-U-2.5-N-LE3 | Connecting cable · Connecting cables | |
| NEBA-M8W3N-U-5-N-LE3 | Connecting cable · Connecting cables | |
| NEBA-M8G3-U-0.5-N-M12G3 | Connecting cable · Connecting cables | |
| NEBA-M8G3-U-1-N-M12G3 | Connecting cable · Connecting cables | |
| NEBA-M8G3-U-2.5-N-M12G3 | Connecting cable · Connecting cables | |
| NEBA-M8G3-U-5-N-M8G3 | Connecting cable · Connecting cables | |
| NEBA-M8G3-U-5-N-M12G3 | Connecting cable · Connecting cables | |
| NEBA-M8G3-U-10-N-M8G3 | Connecting cable · Connecting cables | |
| NEBA-M8G3-U-0.5-N-M8G3 | Connecting cable · Connecting cables | |
| NEBA-M8G3-U-1-N-M8G3 | Connecting cable · Connecting cables | |
| NEBA-M8G3-U-1.5-N-M8G3 | Connecting cable · Connecting cables | |
| NEBA-M8G3-U-2-N-M8G3 | Connecting cable · Connecting cables | |
| NEBA-M8G3-U-2.5-N-M8G3 | Connecting cable · Connecting cables | |
| NEBA-M8W3-U-0.5-N-M8G3 | Connecting cable · Connecting cables | |
| NEBA-M8W3-U-1-N-M8G3 | Connecting cable · Connecting cables | |
| NEBA-M8W3-U-2.5-N-M8G3 | Connecting cable · Connecting cables | |
| NEBA-M8W3-U-5-N-M8G3 | Connecting cable · Connecting cables | |
| EAMM-A-T42-55A | Axial kit · Mounting accessories | |
| EAMM-A-T42-60RA | Axial kit · Mounting accessories | |
| EAMM-A-T42-60AA | Axial kit · Mounting accessories | |
| EAMM-A-T42-60R | Axial kit · Mounting accessories | |
| EAMM-A-T42-58AA | Axial kit · Mounting accessories | |
| EAMM-A-T42-60AB | Axial kit · Mounting accessories | |
| EMMT-AS-60-S-LS-RMY | Servo motor · Motors | |
| EMMT-AS-60-M-HS-RMYB | Servo motor · Motors | |
| EMMT-AS-60-S-LS-RMYB | Servo motor · Motors | |
| EMMT-AS-60-L-LS-RMY | Servo motor · Motors | |
| EMMT-AS-60-S-HS-RMY | Servo motor · Motors | |
| EMMT-AS-60-L-LS-RMYB | Servo motor · Motors | |
| EMMT-AS-60-S-HS-RMYB | Servo motor · Motors | |
| EMMT-AS-60-M-LS-RMY | Servo motor · Motors | |
| EMMT-AS-60-M-LS-RMYB | Servo motor · Motors | |
| EMMT-AS-60-M-HS-RMY | Servo motor · Motors | |
| EMMT-AS-60-L-HS-RMY | Servo motor · Motors | |
| EMMT-AS-60-L-HS-RMYB | Servo motor · Motors | |
| EAPM-E24-60-SHO | Sensor bracket · Position sensing | |
| EAHF-E24-60-P-S | Profile mounting · Mounting accessories | |
| EAPM-E24-60-SHE | Sensor bracket · Position sensing | |
| EAPM-E24-60-SLS | Switch lug · Position sensing | |
| EAPM-E24-60-SLE | Switch lug · Position sensing | |
| EAHF-E24-60-P-D6 | Profile mounting · Mounting accessories | |
| EAHF-E24-60-P | Profile mounting · Mounting accessories | |
| EAMM-U-65-T42-60P-114 | Parallel kit · Mounting accessories | |
| EAMM-U-65-T42-55A-114 | Parallel kit · Mounting accessories | |
| EAMM-U-65-T42-57A-114 | Parallel kit · Mounting accessories | |
| EAMM-U-65-T42-40G-114 | Parallel kit · Mounting accessories | |
| EAMM-U-65-T42-40P-114 | Parallel kit · Mounting accessories | |
| EAMM-U-65-T42-40R-114 | Parallel kit · Mounting accessories | |
| EAMM-U-87-T42-87A-114 | Parallel kit · Mounting accessories | |
| EAMM-U-65-T42-40P-87 | Parallel kit · Mounting accessories | |
| EAMM-U-65-T42-40R-87 | Parallel kit · Mounting accessories | |
| EAMM-U-87-T42-80P-114 | Parallel kit · Mounting accessories | |
| EAMM-U-87-T42-82AA-147 | Parallel kit · Mounting accessories | |
| EAMM-U-65-T42-55A-147 | Parallel kit · Mounting accessories | |
| EAMM-U-87-T42-80P-147 | Parallel kit · Mounting accessories | |
| EAMM-U-87-T42-84AA-147 | Parallel kit · Mounting accessories | |
| EAMM-U-87-T42-87A-147 | Parallel kit · Mounting accessories | |
| EAMM-U-65-T42-40G-147 | Parallel kit · Mounting accessories | |
| EAMM-A-T42-40G | Axial kit · Mounting accessories | |
| EAMM-A-T42-82AA | Axial kit · Mounting accessories | |
| EAMM-A-T42-84AA | Axial kit · Mounting accessories | |
| EAMM-A-T42-40P | Axial kit · Mounting accessories | |
| EAMM-A-T42-40R | Axial kit · Mounting accessories | |
| EAMM-A-T42-80PA | Axial kit · Mounting accessories | |
| EAMM-A-T42-80P | Axial kit · Mounting accessories | |
| EAMM-A-T42-87A | Axial kit · Mounting accessories | |
| EAMM-U-65-T42-60P-87 | Parallel kit · Mounting accessories | |
| EMMT-AS-60- | Servo motor · Motors | |
| EAMM-A-T42-60P | Axial kit · Mounting accessories | |
| EAMM-A-T42-57A | Axial kit · Mounting accessories | |
| EAMM-U-65-T42-57A-87 | Parallel kit · Mounting accessories | |
| SIES-8M-PS-24V-K-7,5-OE | Proximity sensor · Position sensing | |
| SIES-8M-PS-24V-K-0,3-M8D | Proximity sensor · Position sensing | |
| SIES-8M-PO-24V-K-0,3-M8D | Proximity sensor · Position sensing | |
| SIES-8M-PO-24V-K-7,5-OE | Proximity sensor · Position sensing | |
| SIES-8M-NS-24V-K-7,5-OE | Proximity sensor · Position sensing | |
| SIES-8M-NS-24V-K-0,3-M8D | Proximity sensor · Position sensing | |
| SIES-8M-NO-24V-K-0,3-M8D | Proximity sensor · Position sensing | |
| SIES-8M-NO-24V-K-7,5-OE | Proximity sensor · Position sensing | |
| ABP-5-S1 | Slot cover · General accessories | |
| EMMT-AS-60-S-LS-RM | Servo motor · Motors | |
| EMMT-AS-60-S-LS-RSB | Servo motor · Motors | |
| EMMT-AS-60-S-LS-RMB | Servo motor · Motors | |
| EMMT-AS-60-S-LS-RS | Servo motor · Motors | |
| EMMT-AS-60-S-HS-RS | Servo motor · Motors | |
| EMMT-AS-60-M-LS-RMB | Servo motor · Motors | |
| EMMT-AS-60-S-HS-RM | Servo motor · Motors | |
| EMMT-AS-60-M-HS-RS | Servo motor · Motors | |
| EMMT-AS-60-S-HS-RSB | Servo motor · Motors | |
| EMMT-AS-60-M-HS-RM | Servo motor · Motors | |
| EMMT-AS-60-S-HS-RMB | Servo motor · Motors | |
| EMMT-AS-60-M-LS-RS | Servo motor · Motors | |
| EMMT-AS-60-M-LS-RM | Servo motor · Motors | |
| EMMT-AS-60-M-LS-RSB | Servo motor · Motors | |
| EMMT-AS-60-M-HS-RSB | Servo motor · Motors | |
| EMMT-AS-60-L-HS-RM | Servo motor · Motors | |
| EMMT-AS-60-M-HS-RMB | Servo motor · Motors | |
| EMMT-AS-60-L-HS-RSB | Servo motor · Motors | |
| EMMT-AS-60-L-LS-RS | Servo motor · Motors | |
| EMMT-AS-60-L-HS-RMB | Servo motor · Motors | |
| EMMT-AS-60-L-LS-RM | Servo motor · Motors | |
| EMMT-AS-60-L-LS-RSB | Servo motor · Motors | |
| EMMT-AS-60-L-LS-RMB | Servo motor · Motors | |
| EMMT-AS-60-L-HS-RS | Servo motor · Motors | |
| SMBK-8 | Clip · General accessories |
Related Products
View Details
Festo
YXCF-2
MFR #YXCF-2
SKU #YLSL6U6NTXCKHGD
View Details
Festo
YXCF-3
MFR #YXCF-3
SKU #YLSZVSBYGKJ08DU
View Details
Festo
YXCF-4
MFR #YXCF-4
SKU #YLSIOSKDCAW31TC
View Details
Festo
YXCF-1-B
MFR #YXCF-1-B
SKU #YLS8M1FM2JHSBU
View Details
Festo
YXCF-2-B
MFR #YXCF-2-B
SKU #YLSAJENB5OIQWGN
View Details
Festo
YXCL-1-D
MFR #YXCL-1-D
SKU #YLS74NKJF7W65BZ
View Details
Festo
YXCL-2-D
MFR #YXCL-2-D
SKU #YLS1RJGPTBKRKVF
View Details
Festo
YXCL-1
MFR #YXCL-1
SKU #YLSFPVVOW7GENV
View Details
Festo
YXCR-1
MFR #YXCR-1
SKU #YLSW4HQHDBEYOQG
Featured Products
View Details
SMC
MGPM25-100Z-XC4
MFR #MGPM25-100Z-XC4
SKU #YLSH71U0VZZBO5I
View Details
SMC
VQZ2121-5LO1-N3T
MFR #VQZ2121-5LO1-N3T
SKU #YLSEL35MGGQ9FOL
View Details
Brush Research Mfg
BC8M12
MFR #BC8M12
SKU #YLSA0P5BE6ZJCIW
View Details
SMC
NCDMC150-0600-X155US
MFR #NCDMC150-0600-X155US
SKU #YLS8ICKGSKYC93L
View Details
SMC
AL30-03-8-A
MFR #AL30-03-8-A
SKU #YLS6GDABZE4BN7A
View Details
Danfoss Aeroquip LLC
EH22512
MFR #EH22512
SKU #YLSRZ91UGVO64DG
View Details
Baldor
VFSWDM3546T-5E
MFR #VFSWDM3546T-5E
SKU #YLSRYYEFOOW6J5E
View Details
SMC
MXS-AS16L
MFR #MXS-AS16L
SKU #YLSAP0XXFGFSWY6
View Details
SMC
ZCUKQ25-50D
MFR #ZCUKQ25-50D
SKU #YLSQ684QXTNN958
View Details
SMC
VQ1200-51-Q
MFR #VQ1200-51-Q
SKU #YLSOVA6N31QD04G
Related Searches
Festo ELGD-BS-KF-WD-100-100-0H-20P-L priceFesto ELGD-BS-KF-WD-100-100-0H-20P-L quotebuy Festo ELGD-BS-KF-WD-100-100-0H-20P-LELGD-BS-KF-WD-100-100-0H-20P-L priceELGD-BS-KF-WD-100-100-0H-20P-L stock availabilityFesto spare partsFesto ELGD-BS-KF-WD-100-100-0H-20P-L equivalentFesto ELGD-BS-KF-WD-100-100-0H-20P-L specifications
