How can I get a price quote for Festo EGSC-BS-KF-25-50-2P?

You can request a fast quote for Festo EGSC-BS-KF-25-50-2P from Yılsa Engineering. Reference part number YLSEI958HOCCY5P. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Festo EGSC-BS-KF-25-50-2P in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Festo EGSC-BS-KF-25-50-2P genuine and new?

Yes. This Festo product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Festo EGSC-BS-KF-25-50-2P?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

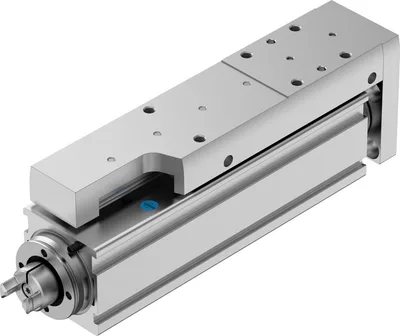

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

Festo EGSC-BS-KF-25-50-2P

Mini slide. Precise guide and ball screw drive. Compact dimensions. Flexible motor mounting. The toothed belt axes, spindle axes ELGC and mini slides EGSC form a scalable modular system for compact automation. Variants recommended for production systems for manufacturing lithium-ion batteries. Fits perfectly into our comprehensive product portfolio of electromechanical actuators, motors, servo drives and control systems

FestoMFR # EGSC-BS-KF-25-50-2PSKU # YLSEI958HOCCY5P

Working stroke50

Size25

Stroke reserve0

Reversing backlash theoretical150

Spindle diameter6

Spindle pitch2

Have questions?Chat on WhatsApp

About This Product

Festo EGSC-BS-KF-25-50-2P

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Working stroke50

Size25

Stroke reserve0

Reversing backlash theoretical150

Spindle diameter6

Spindle pitch2

Mounting positionAny

GuideRecirculating ball bearing guide

DesignWith ball screw

Type of motorStepper motor, Servo motor

ReferencingPositive fixed stop block, Negative fixed stop block, Reference switch

Spindle typeBall screw

Symbol00992069

Position detectionVia proximity switch

Max. acceleration5

Max. rotational speed4000

Max. speed0.133

Repetition accuracy±0.015 mm

Duty cycle100%

Corrosion resistance class CRC0 - No corrosion stress

LABS (PWIS) conformityVDMA24364 zone III

Suitability for the production of Li-ion batteriesSuitable for battery production with reduced Cu/Zn/Ni values (F1a)

Cleanroom suitability, measured according to ISO 14644-14Class 9 according to ISO 14644-1

Sound pressure level45

Degree of protectionIP40

Ambient temperature0, 50

Impact energy in end positions5.0E-6

Note on the impact energy in the end positionsAt maximum homing speed of 0.01 m/s

Dynamic basic load rating fixed bearing2810

Dynamic basic load rating linear guide1310

Dynamic basic load rating ball screw1900

Idle torque at vmax0.015

Idle torque at vmin0.005

Max. force Fy669

Max. force Fz669

Fy at theoretical life value of 100 km (only guide consideration)1310

Fz at theoretical life value of 100 km (only guide consideration)1310

Max. moment Mx2

Max. moment My2.1

Max. moment Mz2.1

Mx at theoretical life value of 100 km (only guide consideration)5

My at theoretical life value of 100 km (only guide consideration)4

Mz at theoretical life value of 100 km (only guide consideration)4

Max. radial force at drive shaft30

Max. feed force Fx20

Reference value effective load, horizontal2

Reference value effective load, vertical2

Static basic load rating ball screw2800

Static basic load rating linear guide2440

Mass moment of inertia JH per metre of stroke0.00529

Mass moment of inertia JL per kg of working load0.00101

Mass moment of inertia JO8.7E-4

Feed constant2

Static basic load rating fixed bearing1340

Reference service life5000

Maintenance intervalLifetime lubrication

Moving mass for 0 mm stroke83

Additional moving mass per 10 mm stroke9

Product weight269

Basic weight for 0 mm stroke176

Additional weight per 10 mm stroke19

Type of mountingWith female thread, With centring sleeve, With accessories, Via cylindrical dowel pin

Interface code, actuatorV20

Note on materialsRoHS compliant

Material guide slideBearing steel

Material guide railBearing steel

Material housingAnodised wrought aluminium alloy

Material yoke plateAnodised wrought aluminium alloy

Material piston rodHigh-alloy stainless steel

Material slideAnodised wrought aluminium alloy

Material ball screw nutBearing steel

Material spindleBearing steel

Accessories 73

Genuine accessories that can be used with the Festo EGSC-BS-KF-25-50-2P motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
GASA-MIE-CTR-12M-1	AX Industrial App · Digital services
GASA-MIE-CTR-12M-10	AX Industrial App · Digital services
GASA-MIE-CTR-12M-100	AX Industrial App · Digital services
GASA-MIE-CTR-12M-50	AX Industrial App · Digital services
EMMS-ST-28-L-SE	Stepper motor · Motors
NEBA-M8G3-U-2.5-N-LE3	Connecting cable · Connecting cables
NEBA-M8G3-U-5-N-LE3	Connecting cable · Connecting cables
NEBA-M8W3-U-2.5-N-LE3	Connecting cable · Connecting cables
NEBA-M8W3-U-5-N-LE3	Connecting cable · Connecting cables
NEBA-M8G3-U-5-N-M8G3	Connecting cable · Connecting cables
NEBA-M8G3-U-2.5-N-M8G3	Connecting cable · Connecting cables
SMT-8M-A-NO-24V-E-7,5-OE	Proximity sensor · Proximity sensors
EAMM-A-V20-28A	Axial kit · Mounting accessories
EAMM-U-30-V20-28A-44	Parallel kit · Mounting accessories
EAPM-L2-SH	Sensor bracket · Mounting accessories
EAHF-L2-25-P	Profile mounting · Mounting accessories
SMT-8M-A-PO-24V-E-7,5-OE	Proximity sensor · Proximity sensors
SMT-8M-A-PS-24V-E-0,3-M8D	Proximity sensor · Proximity sensors
SMT-8M-A-NS-24V-E-0,3-M8D	Proximity sensor · Proximity sensors
QSML-M5-3-100	Push-in L-fitting · Push-in fittings
QSML-M5-4-100	Push-in L-fitting · Push-in fittings
QSML-M5-6-100	Push-in L-fitting · Push-in fittings
QSM-M5-3-100	Push-in fitting · Push-in fittings
QSM-M5-4-100	Push-in fitting · Push-in fittings
QSM-M5-6-100	Push-in fitting · Push-in fittings
QSM-M5-3-I-R-100	Push-in fitting · Push-in fittings
QSM-M5-4-I-R-100	Push-in fitting · Push-in fittings
QSM-M5-6-I-R-100	Push-in fitting · Push-in fittings
QSM-M5-3-I-R	Push-in fitting · Push-in fittings
QSM-M5-4-I-R	Push-in fitting · Push-in fittings
QSM-M5-6-I-R	Push-in fitting · Push-in fittings
ZBS-5	Centring pin · Mounting accessories
QSM-M5-3	Push-in fitting · Push-in fittings
QSM-M5-4	Push-in fitting · Push-in fittings
QSM-M5-6	Push-in fitting · Push-in fittings
QSM-M5-3-I	Push-in fitting · Push-in fittings
QSM-M5-4-I	Push-in fitting · Push-in fittings
QSM-M5-6-I	Push-in fitting · Push-in fittings
QSML-M5-3	Push-in L-fitting · Push-in fittings
QSML-M5-4	Push-in L-fitting · Push-in fittings
QSML-M5-6	Push-in L-fitting · Push-in fittings
ZBS-2	Centring pin · Mounting accessories
SIES-8M-PS-24V-K-7,5-OE	Proximity sensor · Cylinder sensor for mounting kit
SIES-8M-PS-24V-K-0,3-M8D	Proximity sensor · Cylinder sensor for mounting kit
SIES-8M-PS-24V-K-2,5-M8D	Proximity sensor · Cylinder sensor for mounting kit
SIES-8M-PS-24V-K-5,0-M8D	Proximity sensor · Cylinder sensor for mounting kit
SIES-8M-PS-24V-K-10-M8D	Proximity sensor · Cylinder sensor for mounting kit
SIES-8M-PO-24V-K-7,5-OE	Proximity sensor · Cylinder sensor for mounting kit
SIES-8M-PO-24V-K-0,3-M8D	Proximity sensor · Cylinder sensor for mounting kit
SIES-8M-PO-24V-K-2,5-M8D	Proximity sensor · Cylinder sensor for mounting kit
SIES-8M-PO-24V-K-5,0-M8D	Proximity sensor · Cylinder sensor for mounting kit
SIES-8M-PO-24V-K-10-M8D	Proximity sensor · Cylinder sensor for mounting kit
SIES-8M-NS-24V-K-7,5-OE	Proximity sensor · Cylinder sensor for mounting kit
SIES-8M-NS-24V-K-0,3-M8D	Proximity sensor · Cylinder sensor for mounting kit
SIES-8M-NS-24V-K-2,5-M8D	Proximity sensor · Cylinder sensor for mounting kit
SIES-8M-NS-24V-K-5,0-M8D	Proximity sensor · Cylinder sensor for mounting kit
SIES-8M-NS-24V-K-10-M8D	Proximity sensor · Cylinder sensor for mounting kit
SIES-8M-NO-24V-K-7,5-OE	Proximity sensor · Cylinder sensor for mounting kit
SIES-8M-NO-24V-K-0,3-M8D	Proximity sensor · Cylinder sensor for mounting kit
SIES-8M-NO-24V-K-2,5-M8D	Proximity sensor · Cylinder sensor for mounting kit
SIES-8M-NO-24V-K-5,0-M8D	Proximity sensor · Cylinder sensor for mounting kit
SIES-8M-NO-24V-K-10-M8D	Proximity sensor · Cylinder sensor for mounting kit
SMT-8M-A-PS-24V-E-2,5-OE	Proximity sensor · Cylinder sensor for mounting kit
EMMS-ST-28-L-SEB	Stepper motor · Electrical accessories
EMMS-ST-28-L-SB	Stepper motor · Electrical accessories
EMMS-ST-28-L-S	Stepper motor · Electrical accessories
EAHF-L2-25-P-S	Profile mounting · Cylinder mountings
EAPM-E19-25-SLS	Switch lug · Mounting accessories
EAMM-A-V20-28AA	Axial kit · Mounting accessories
EAMM-U-30-V20-28AA-44	Parallel kit · Mounting accessories
EHAM-MA-E19-25-C11	Adapter plate kit · Mounting accessories
EHAM-MA-E19-25-C14	Adapter plate kit · Mounting accessories
EHAM-MA-E19-25-V3	Adapter plate kit · Mounting accessories
