How can I get a price quote for FESTO EMMS-ST-28-L-SEB?

You can request a fast quote for FESTO EMMS-ST-28-L-SEB from Yılsa Engineering. Reference part number CEY-937FC781B620. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is FESTO EMMS-ST-28-L-SEB in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is FESTO EMMS-ST-28-L-SEB genuine and new?

Yes. This FESTO product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for FESTO EMMS-ST-28-L-SEB?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

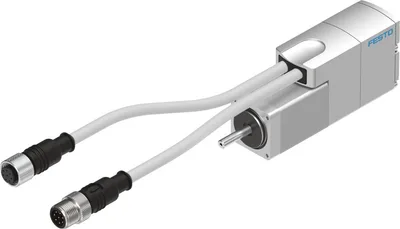

FESTO EMMS-ST-28-L-SEB

Stepper motor. Small increments and high driving torques thanks to 2-phase hybrid technology. Optimised connection technology. With incremental encoder for closed-loop operation. Protection class IP40 (motor shaft) and IP65 (motor housing and push-in connector). Optionally with holding brake

FESTOMFR # EMMS-ST-28-L-SEBSKU # CEY-937FC781B620

Ambient temperature-10, 50

Storage temperature-20, 70

Relative air humidity0 - 85%

Conforms to standardIEC 60034

Insulation protection classB

Temperature class as per EN 60034-1B

Have questions?Chat on WhatsApp

About This Product

FESTO EMMS-ST-28-L-SEB

Genuine, certified FESTO product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Ambient temperature-10, 50

Storage temperature-20, 70

Relative air humidity0 - 85%

Conforms to standardIEC 60034

Insulation protection classB

Temperature class as per EN 60034-1B

Rating class as per EN 60034-1S1

Degree of protectionIP65

Electrical connector systemPlug

Note on materialsRoHS compliant

Corrosion resistance class CRC1 - Low corrosion stress

LABS (PWIS) conformityVDMA24364-B2-L

ApprovalRCM, c UL us - Recognised (Oil)

CE mark (see declaration of conformity)To EU EMC Directive, In accordance with EU RoHS Directive

UKCA marking (see declaration of conformity)To UK RoHS instructions

Nominal operating voltage DC48

Motor holding torque0.09

Max. rotational speed6000

Stepper angle for complete step1.8

Stepping angle tolerance±5%

Nominal motor current1.4

Voltage constant, phase6

Phase winding resistance2.3

Phase winding inductance1.4

Mass moment of inertia of rotor0.018

Total mass moment of inertia of output0.025

Product weight383

Permissible axial shaft load7

Permissible radial shaft load20

Rotor position sensorIncremental encoder

Rotor position encoder interfaceRS422 TTL AB channels + zero index

Rotor position sensor, encoder measuring principleOptical

Brake holding torque0.2

Operating voltage DC for brake24

Power consumption, brake8

Mass moment of inertia of brake0.007

Accessories 24

Genuine accessories that can be used with the FESTO EMMS-ST-28-L-SEB motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
NEBM-M12G8-E-5-LE8	Encoder cable · Connecting cables
NEBM-SM12G8-E-2.5-Q5-LE6	Motor cable · Connecting cables
NEBM-SM12G8-E-5-Q5-LE6	Motor cable · Connecting cables
NEBM-M12G8-E-2.5-LE8	Encoder cable · Connecting cables
NEBM-M12G8-E-10-LE8	Encoder cable · Connecting cables
NEBM-SM12G8-E-10-Q5-LE6	Motor cable · Connecting cables
CMMT-ST-C8-1C-MP-S0	Servo drive · Motor controller
NEBM-M12G8-E-5-S1G9	Encoder cable · Electrical accessories
NEBM-M12G8-E-10-S1G9	Encoder cable · Electrical accessories
NEBM-M12G8-E-15-S1G9	Encoder cable · Electrical accessories
NEBM-M12G8-E- -S1G9	Encoder cable · Electrical accessories
EAMM-A-D19-28A	Axial kit · Mounting accessories
NEBM-SM12G8-E-1.5-Q5-LE6	Motor cable · Electrical accessories
NEBM-SM12G8-E-7-Q5-LE6	Motor cable · Electrical accessories
NEBM-SM12G8-E- -Q5-LE6	Motor cable · Electrical accessories
NEBM-M12G8-E-1.5-LE8	Encoder cable · Electrical accessories
NEBM-M12G8-E-7-LE8	Encoder cable · Electrical accessories
NEBM-M12G8-E- -LE8	Encoder cable · Electrical accessories
EAMM-A-P3-28D-28A	Axial kit · Mounting accessories
EAMM-A-P4-28B-28A	Axial kit · Mounting accessories
EAMM-A-P5-28B-28A	Axial kit · Mounting accessories
EAMM-A-V20-28A	Axial kit · Mounting accessories
NEBM-M12G8-E-20-S1G9	Encoder cable · Electrical accessories
NEBM-M12G8-E-25-S1G9	Encoder cable · Electrical accessories
