Festo EGC-HD-160- -BS

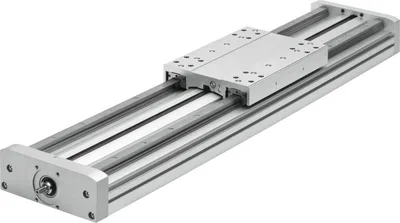

Photo may not represent actual item. Refer to name and product specs for all details.

Festo EGC-HD-160- -BS

Ball screw axis. With heavy-duty guide. Axis for high repeat accuracy. With integrated ball screw. For maximum loads and torques. Precise and resilient DUO guide rail. For maximum lateral load up to 900 Nm. Ideal as a basic axis for linear gantries and cantilever axes. The optional spindle support enables maximum travel speed. Fits perfectly into our comprehensive product portfolio of electromechanical actuators, motors, servo drives and control systems

FestoMFR # EGC-HD-160- -BSSKU # YLSUNZNS39BERM9
Working stroke50, 1900
Size160
Spindle diameter15
Mounting positionAny
GuideRecirculating ball bearing guide
DesignWith ball screw
Share
Have questions?Chat on WhatsApp

About This Product

Ball screw axis. With heavy-duty guide. Axis for high repeat accuracy. With integrated ball screw. For maximum loads and torques. Precise and resilient DUO guide rail. For maximum lateral load up to 900 Nm. Ideal as a basic axis for linear gantries and cantilever axes. The optional spindle support enables maximum travel speed. Fits perfectly into our comprehensive product portfolio of electromechanical actuators, motors, servo drives and control systems

Festo EGC-HD-160- -BS

  • Genuine, certified Festo product
  • Fast sourcing through a worldwide supply network
  • Product selection and compatibility support from our technical team
  • Equivalent and alternative product suggestions
  • Quotation and lead time tailored to your request

Specifications

Working stroke50, 1900
Size160
Spindle diameter15
Mounting positionAny
GuideRecirculating ball bearing guide
DesignWith ball screw
Type of motorStepper motor, Servo motor
Spindle typeBall screw
Symbol00991211
Functional principle of measuring systemIncremental
Max. acceleration15
Max. speed1
Repetition accuracy±0.02 mm
Duty cycle100%
LABS (PWIS) conformityVDMA24364 zone III
Degree of protectionIP40
Ambient temperature-10, 60
2nd moment of area Iy1350000
2nd moment of area Iz1.01E7
Max. force Fy5600
Max. force Fz5600
Max. force Fy total axis5600
Max. force Fz total axis5600
Fy at theoretical life value of 100 km (only guide consideration)20630
Fz at theoretical life value of 100 km (only guide consideration)20630
Max. moment Mx300
Max. moment My500
Max. moment Mz500
Max. moment Mx total axis300
Max. moment My total axis500
Max. moment Mz total axis500
Mx at theoretical life value of 100 km (only guide consideration)1105
My at theoretical life value of 100 km (only guide consideration)1842
Mz at theoretical life value of 100 km (only guide consideration)1842
Max. radial force at drive shaft250
Max. feed force Fx650
Torsional mass moment of inertia It666000
Mass moment of inertia JH per metre of stroke0.0346
Reference service life5000
Weight of slide2080
Weight of additional slide1963
Basic weight for 0 mm stroke7210
Additional weight per 10 mm stroke138
Material end capWrought aluminium alloy, anodised
Material driverWrought aluminium alloy, anodised
Material profileWrought aluminium alloy, anodised
Note on materialsRoHS compliant
Material drive coverWrought aluminium alloy, anodised
Material guide slideSteel
Material guide railSteel
Material slideWrought aluminium alloy, anodised
Material ball screw nutSteel
Material spindleSteel

Accessories 156

Genuine accessories that can be used with the Festo EGC-HD-160- -BS motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part noDescriptionCompatible motors
SF-EGC-HD-1-160Switch lug · Position sensing
MUE-70/80Profile mounting · Mounting accessories
SIES-8M-NO-24V-K-7,5-OEProximity sensor · Position sensing
SIES-8M-PO-24V-K-0,3-M8DProximity sensor · Position sensing
SIES-8M-NO-24V-K-0,3-M8DProximity sensor · Position sensing
SIES-8M-PO-24V-K-7,5-OEProximity sensor · Position sensing
NEBA-M8W3-U-5-N-LE3Connecting cable · Connecting cables
NEBA-M8G3-U-5-N-LE3Connecting cable · Connecting cables
NEBA-M8G3-U-5-N-M8G3Connecting cable · Connecting cables
EAMM-A-S48-57A-G2Axial kit · Mounting accessories
NEBA-M8W3-U-2.5-N-LE3Connecting cable · Connecting cables
ZBH-9-BCentring sleeve · Mounting accessories
NEBA-M8G3-U-2.5-N-M8G3Connecting cable · Connecting cables
EMMT-AS-60-Servo motor · Motors
NEBA-M8G3-U-2.5-N-LE3Connecting cable · Connecting cables
EMMT-ST-57-M-RSStepper motor · Motors
NST-8-M6-1Slot nut · Cylinder mountings
ABP-5Slot cover · Mounting accessories
ABP-8Slot cover · Mounting accessories
SMBK-8Clip · Mounting accessories
HMIA-E07- -Support profile · Mounting accessories
EAMC-30-32-6.35-8Coupling · Mounting accessories
EAMC-30-32-8-9Coupling · Mounting accessories
EMGA-60-P-G3-SST-57Gear unit · Mounting accessories
EMGA-60-P-G5-SST-57Gear unit · Mounting accessories
SIES-8M-PS-24V-K-7,5-OEProximity sensor · Cylinder sensors for direct mounting
SIES-8M-PS-24V-K-0,3-M8DProximity sensor · Cylinder sensors for direct mounting
SIES-8M-PS-24V-K-2,5-M8DProximity sensor · Cylinder sensors for direct mounting
SIES-8M-PS-24V-K-5,0-M8DProximity sensor · Cylinder sensors for direct mounting
SIES-8M-PS-24V-K-10-M8DProximity sensor · Cylinder sensors for direct mounting
SIES-8M-PO-24V-K-2,5-M8DProximity sensor · Cylinder sensors for direct mounting
SIES-8M-PO-24V-K-5,0-M8DProximity sensor · Cylinder sensors for direct mounting
SIES-8M-PO-24V-K-10-M8DProximity sensor · Cylinder sensors for direct mounting
SIES-8M-NS-24V-K-7,5-OEProximity sensor · Cylinder sensors for direct mounting
SIES-8M-NS-24V-K-0,3-M8DProximity sensor · Cylinder sensors for direct mounting
SIES-8M-NS-24V-K-2,5-M8DProximity sensor · Cylinder sensors for direct mounting
SIES-8M-NS-24V-K-5,0-M8DProximity sensor · Cylinder sensors for direct mounting
SIES-8M-NS-24V-K-10-M8DProximity sensor · Cylinder sensors for direct mounting
SIES-8M-NO-24V-K-2,5-M8DProximity sensor · Cylinder sensors for direct mounting
SIES-8M-NO-24V-K-5,0-M8DProximity sensor · Cylinder sensors for direct mounting
SIES-8M-NO-24V-K-10-M8DProximity sensor · Cylinder sensors for direct mounting
HWS-EGC-M5Sensor bracket · Mounting accessories
EAMF-A-48B-55AMotor flange · Mounting accessories
EAMF-A-48B-57AMotor flange · Mounting accessories
EAMF-A-48A-87AMotor flange · Mounting accessories
DHAM-ME-N1-CLAdapter kit · Mounting accessories
EAMC-30-32-8-14Coupling · Mounting accessories
ABP-5-S1Slot cover · Mounting accessories
EAHM-L2-M5-50Screw kit · Mounting accessories
EAHM-L2-M5-55Screw kit · Mounting accessories
DHAM-ME-N1-50-CLAdapter kit · Mounting accessories
EAMF-A-48C-80GMotor flange · Mounting accessories
EAMM-U-86-S48-87A-177Parallel kit · Mounting accessories
EAMM-U-86-S48-70A-102Parallel kit · Mounting accessories
EAMM-U-60-S48-55A-91Parallel kit · Mounting accessories
EAMM-U-60-S48-57A-91Parallel kit · Mounting accessories
EAMM-A-S48-40G-G2Axial kit · Mounting accessories
EAMM-U-86-S48-60G-102Parallel kit · Mounting accessories
EAMM-U-86-S48-60H-102Parallel kit · Mounting accessories
NEBM-M12G8-E-5-S1G9-V3Encoder cable · Electrical accessories
NEBM-M12G8-E-10-S1G9-V3Encoder cable · Electrical accessories
NEBM-M12G8-E-15-S1G9-V3Encoder cable · Electrical accessories
NEBM-M12G8-E- -S1G9-V3Encoder cable · Electrical accessories
SF-EGC-HD-2-160Switch lug · Mounting accessories
EAMM-U-60-S48-40G-91Parallel kit · Mounting accessories
EMGA-40-P-G3-EAS-40Gear unit · Mounting accessories
EMGA-40-P-G5-EAS-40Gear unit · Mounting accessories
EMGA-60-P-G3-EAS-60Gear unit · Mounting accessories
EMGA-60-P-G5-EAS-60Gear unit · Mounting accessories
EAMM-U-70-S48-60P-96Parallel kit · Mounting accessories
EAMM-U-70-S48-70A-96Parallel kit · Mounting accessories
EAMM-U-70-S48-60G-96Parallel kit · Mounting accessories
EAMM-U-70-S48-60H-96Parallel kit · Mounting accessories
EAMM-A-S48-70A-G2Axial kit · Mounting accessories
EAMM-A-S48-55A-G2Axial kit · Mounting accessories
EAMM-A-S48-87A-G2Axial kit · Mounting accessories
EMMT-AS-60-S-LS-RSServo motor · Electrical accessories
EMMT-AS-60-S-LS-RMServo motor · Electrical accessories
EMMT-AS-60-S-LS-RSBServo motor · Electrical accessories
EMMT-AS-60-S-LS-RMBServo motor · Electrical accessories
EMMT-AS-60-S-HS-RSServo motor · Electrical accessories
EMMT-AS-60-S-HS-RMServo motor · Electrical accessories
EMMT-AS-60-S-HS-RSBServo motor · Electrical accessories
EMMT-AS-60-S-HS-RMBServo motor · Electrical accessories
EMMT-AS-60-M-LS-RSServo motor · Electrical accessories
EMMT-AS-60-M-LS-RMServo motor · Electrical accessories
EMMT-AS-60-M-LS-RSBServo motor · Electrical accessories
EMMT-AS-60-M-LS-RMBServo motor · Electrical accessories
EMMT-AS-60-M-HS-RSServo motor · Electrical accessories
EMMT-AS-60-M-HS-RMServo motor · Electrical accessories
EMMT-AS-60-M-HS-RSBServo motor · Electrical accessories
EMMT-AS-60-M-HS-RMBServo motor · Electrical accessories
EMMT-AS-60-L-LS-RSServo motor · Electrical accessories
EMMT-AS-60-L-LS-RMServo motor · Electrical accessories
EMMT-AS-60-L-LS-RSBServo motor · Electrical accessories
EMMT-AS-60-L-LS-RMBServo motor · Electrical accessories
EMMT-AS-60-L-HS-RSServo motor · Electrical accessories
EMMT-AS-60-L-HS-RMServo motor · Electrical accessories
EMMT-AS-60-L-HS-RSBServo motor · Electrical accessories
EMMT-AS-60-L-HS-RMBServo motor · Electrical accessories
EAMM-U-60-S48-40R-91Parallel kit · Mounting accessories
EAMM-U-60-S48-58AA-91Parallel kit · Mounting accessories
EAMM-U-70-S48-60RA-96Parallel kit · Mounting accessories
EAMM-U-70-S48-70AA-96Parallel kit · Mounting accessories
EAMM-U-86-S48-58AA-102Parallel kit · Mounting accessories
EAMM-U-86-S48-60P-102Parallel kit · Mounting accessories
EAMM-U-86-S48-60RB-102Parallel kit · Mounting accessories
EAMM-U-86-S48-70AA-102Parallel kit · Mounting accessories
EAMM-U-86-S48-70GA-102Parallel kit · Mounting accessories
EAMM-U-86-S48-82AA-102Parallel kit · Mounting accessories
EAMM-U-86-S48-84AA-102Parallel kit · Mounting accessories
EAMM-U-86-S48-87A-102Parallel kit · Mounting accessories
EAMM-U-86-S48-58AA-177Parallel kit · Mounting accessories
EAMM-U-86-S48-60G-177Parallel kit · Mounting accessories
EAMM-U-86-S48-60P-177Parallel kit · Mounting accessories
EAMM-U-86-S48-60PA-177Parallel kit · Mounting accessories
EAMM-U-86-S48-60RB-177Parallel kit · Mounting accessories
EAMM-U-86-S48-70A-177Parallel kit · Mounting accessories
EAMM-U-86-S48-70AA-177Parallel kit · Mounting accessories
EAMM-U-86-S48-70GA-177Parallel kit · Mounting accessories
EAMM-U-86-S48-82AA-177Parallel kit · Mounting accessories
EAMM-U-86-S48-84AA-177Parallel kit · Mounting accessories
EAMM-U-70-S48-60R-96Parallel kit · Mounting accessories
EAMM-U-60-S48-60AA-91Parallel kit · Mounting accessories
EAMM-U-60-S48-50GA-91Parallel kit · Mounting accessories
EAMM-A-S48-50GAAxial kit · Mounting accessories
EAMM-A-S48-58AAAxial kit · Mounting accessories
EAMM-A-S48-60AAAxial kit · Mounting accessories
EAMM-A-S48-70AAAxial kit · Mounting accessories
NEFM-S1G9-K-0,5-R3G8Adapter · Electrical accessories
EMGA-40-P-G8-EAS-40Gear unit · Mounting accessories
EMGA-40-P-G12-EAS-40Gear unit · Mounting accessories
EMGA-40-P-G20-EAS-40Gear unit · Mounting accessories
EMGA-60-P-G8-EAS-60Gear unit · Mounting accessories
EMGA-60-P-G12-EAS-60Gear unit · Mounting accessories
EMGA-60-P-G20-EAS-60Gear unit · Mounting accessories
EMGA-60-P-G8-SST-57Gear unit · Mounting accessories
EMGA-60-P-G12-SST-57Gear unit · Mounting accessories
EMMT-AS-60-S-LS-RMYServo motor · Electrical accessories
EMMT-AS-60-S-LS-RMYBServo motor · Electrical accessories
EMMT-AS-60-S-HS-RMYServo motor · Electrical accessories
EMMT-AS-60-S-HS-RMYBServo motor · Electrical accessories
EMMT-AS-60-M-LS-RMYServo motor · Electrical accessories
EMMT-AS-60-M-LS-RMYBServo motor · Electrical accessories
EMMT-AS-60-M-HS-RMYServo motor · Electrical accessories
EMMT-AS-60-M-HS-RMYBServo motor · Electrical accessories
EMMT-AS-60-L-LS-RMYServo motor · Electrical accessories
EMMT-AS-60-L-LS-RMYBServo motor · Electrical accessories
EMMT-AS-60-L-HS-RMYServo motor · Electrical accessories
EMMT-AS-60-L-HS-RMYBServo motor · Electrical accessories
EAMM-A-S48-60RA-G2Axial kit · Mounting accessories
EAMM-A-S48-60G-G3Axial kit · Mounting accessories
EAMM-A-S48-80PAxial kit · Mounting accessories
EAMM-A-S48-60P-G3Axial kit · Mounting accessories
EAMM-A-S48-60H-G3Axial kit · Mounting accessories
EAMM-A-S48-80PBAxial kit · Mounting accessories

Related Products

YXCF-1
Festo YXCF-1
View Details

Festo

YXCF-1

MFR #YXCF-1

SKU #YLSBOLBVXXHTEQR

YXCF-2
Festo YXCF-2
View Details

Festo

YXCF-2

MFR #YXCF-2

SKU #YLSL6U6NTXCKHGD

YXCF-3
Festo YXCF-3
View Details

Festo

YXCF-3

MFR #YXCF-3

SKU #YLSZVSBYGKJ08DU

YXCF-4
Festo YXCF-4
View Details

Festo

YXCF-4

MFR #YXCF-4

SKU #YLSIOSKDCAW31TC

YXCF-1-B
Festo YXCF-1-B
View Details

Festo

YXCF-1-B

MFR #YXCF-1-B

SKU #YLS8M1FM2JHSBU

YXCF-2-B
Festo YXCF-2-B
View Details

Festo

YXCF-2-B

MFR #YXCF-2-B

SKU #YLSAJENB5OIQWGN

YXCL-1-D
Festo YXCL-1-D
View Details

Festo

YXCL-1-D

MFR #YXCL-1-D

SKU #YLS74NKJF7W65BZ

YXCL-2-D
Festo YXCL-2-D
View Details

Festo

YXCL-2-D

MFR #YXCL-2-D

SKU #YLS1RJGPTBKRKVF

YXCL-1
Festo YXCL-1
View Details

Festo

YXCL-1

MFR #YXCL-1

SKU #YLSFPVVOW7GENV

YXCR-1
Festo YXCR-1
View Details

Festo

YXCR-1

MFR #YXCR-1

SKU #YLSW4HQHDBEYOQG

Featured Products

SY5420-5DZ-01
SMC SY5420-5DZ-01
View Details

SMC

SY5420-5DZ-01

MFR #SY5420-5DZ-01

SKU #YLSQW9MERWL033X

CM2B40-75Z
SMC CM2B40-75Z
View Details

SMC

CM2B40-75Z

MFR #CM2B40-75Z

SKU #YLSOGLJ512KWTEJ

MTS32-150M
SMC MTS32-150M
View Details

SMC

MTS32-150M

MFR #MTS32-150M

SKU #YLSSJCSBTRLX2P7

MXS-AS16L
SMC MXS-AS16L
View Details

SMC

MXS-AS16L

MFR #MXS-AS16L

SKU #YLSAP0XXFGFSWY6

AW20-N02CG-6CZ-B
SMC AW20-N02CG-6CZ-B
View Details

SMC

AW20-N02CG-6CZ-B

MFR #AW20-N02CG-6CZ-B

SKU #YLSNOOF0IBCZ3J3

VQ1200-51-Q
SMC VQ1200-51-Q
View Details

SMC

VQ1200-51-Q

MFR #VQ1200-51-Q

SKU #YLSOVA6N31QD04G

EH22512
Danfoss Aeroquip LLC EH22512
View Details

Danfoss Aeroquip LLC

EH22512

MFR #EH22512

SKU #YLSRZ91UGVO64DG

CG5EN50SV-150
SMC CG5EN50SV-150
View Details

SMC

CG5EN50SV-150

MFR #CG5EN50SV-150

SKU #YLST11TLVYPVP7H

BM3615T W/ 2-1/4" LONG SHAFT
Baldor BM3615T W/ 2-1/4" LONG SHAFT
View Details

Baldor

BM3615T W/ 2-1/4" LONG SHAFT

MFR #BM3615T W/ 2-1/4" LONG SHAFT

SKU #YLSUV0OKQIKNTRJ

BC8M12
Brush Research Mfg BC8M12
View Details

Brush Research Mfg

BC8M12

MFR #BC8M12

SKU #YLSA0P5BE6ZJCIW

Related Searches

Festo EGC-HD-160- -BS priceFesto EGC-HD-160- -BS quotebuy Festo EGC-HD-160- -BSEGC-HD-160- -BS priceEGC-HD-160- -BS stock availabilityFesto spare partsFesto EGC-HD-160- -BS equivalentFesto EGC-HD-160- -BS specifications
