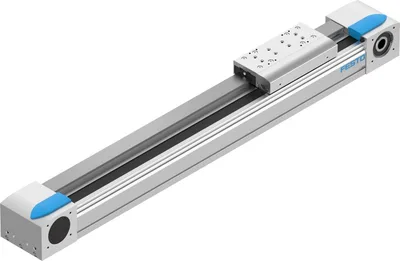

Festo EGC-120-600-TB-KF-0H-GK

Photo may not represent actual item. Refer to name and product specs for all details.

Festo EGC-120-600-TB-KF-0H-GK

Toothed belt axis. Axis for high speeds and acceleration. Recirculating ball bearing guide for high loads and torques. Optionally with clamping unit, at one or both ends. Profile with optimised rigidity. The motor can be flexibly mounted on 4 sides. 22 types in stock with short delivery times and modular products for custom variants. Long strokes of up to 8.5 m possible. Fits perfectly into our comprehensive product portfolio of electromechanical actuators, motors, servo drives and control systems. Sustainable thanks to extended life cycle and easier repairs

FestoMFR # EGC-120-600-TB-KF-0H-GKSKU # YLSTF2UIMVR4ARL
Effective diameter of drive pinion39.79
Working stroke600
Size120
Stroke reserve0
Toothed-belt pitch5
Mounting positionAny
Share
Have questions?Chat on WhatsApp

About This Product

Toothed belt axis. Axis for high speeds and acceleration. Recirculating ball bearing guide for high loads and torques. Optionally with clamping unit, at one or both ends. Profile with optimised rigidity. The motor can be flexibly mounted on 4 sides. 22 types in stock with short delivery times and modular products for custom variants. Long strokes of up to 8.5 m possible. Fits perfectly into our comprehensive product portfolio of electromechanical actuators, motors, servo drives and control systems. Sustainable thanks to extended life cycle and easier repairs

Festo EGC-120-600-TB-KF-0H-GK

  • Genuine, certified Festo product
  • Fast sourcing through a worldwide supply network
  • Product selection and compatibility support from our technical team
  • Equivalent and alternative product suggestions
  • Quotation and lead time tailored to your request

Specifications

Effective diameter of drive pinion39.79
Working stroke600
Size120
Stroke reserve0
Toothed-belt pitch5
Mounting positionAny
GuideRecirculating ball bearing guide
DesignElectromechanical linear axis, With toothed belt
Type of motorStepper motor, Servo motor
Symbol00991212
Max. acceleration50
Max. speed5
Repetition accuracy±0.08 mm
Duty cycle100%
LABS (PWIS) conformityVDMA24364 zone III
Degree of protectionIP40
Ambient temperature-10, 60
2nd moment of area Iy4620000
2nd moment of area Iz5650000
Max. force Fy6890
Max. force Fz6890
Max. force Fy total axis6890
Max. force Fz total axis6890
Fy at theoretical life value of 100 km (only guide consideration)25383
Fz at theoretical life value of 100 km (only guide consideration)25383
Max. idle running transfer resistance70
Max. moment Mx144
Max. moment My380
Max. moment Mz380
Max. moment Mx total axis144
Max. moment My total axis380
Max. moment Mz total axis380
Mx at theoretical life value of 100 km (only guide consideration)531
My at theoretical life value of 100 km (only guide consideration)1400
Mz at theoretical life value of 100 km (only guide consideration)1400
Max. feed force Fx800
Torsional mass moment of inertia It2680000
Mass moment of inertia JH per metre of stroke0.93
Mass moment of inertia JL per kg of working load3.96
Feed constant125
Reference service life5000
Material end capWrought aluminium alloy, anodised
Material profileWrought aluminium alloy, anodised
Note on materialsRoHS compliant
Material drive coverWrought aluminium alloy, anodised
Material guide slideSteel
Material guide railSteel
Material pulleysHigh-alloy stainless steel
Material slideWrought aluminium alloy, anodised
Material toothed belt clamping pieceCast stainless steel
Material toothed beltPolychloroprene or nitrile rubber (NBR) with glass cord and nylon coating

Accessories 176

Genuine accessories that can be used with the Festo EGC-120-600-TB-KF-0H-GK motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part noDescriptionCompatible motors
SIES-8M-NO-24V-K-7,5-OEProximity sensor · Position sensing
SIES-8M-NO-24V-K-0,3-M8DProximity sensor · Position sensing
MUE-120/185Profile mounting · Mounting accessories
SF-EGC-1-120Switch lug · Position sensing
SIES-8M-PO-24V-K-7,5-OEProximity sensor · Position sensing
SIES-8M-PO-24V-K-0,3-M8DProximity sensor · Position sensing
NEBA-M8W3-U-5-N-LE3Connecting cable · Connecting cables
EMMT-AS-100-Servo motor · Motors
NEBA-M8G3-U-2.5-N-LE3Connecting cable · Connecting cables
NEBA-M8G3-U-5-N-LE3Connecting cable · Connecting cables
NEBA-M8W3-U-2.5-N-LE3Connecting cable · Connecting cables
NEBA-M8G3-U-2.5-N-M8G3Connecting cable · Connecting cables
NEBA-M8G3-U-5-N-M8G3Connecting cable · Connecting cables
ZBH-9-BCentring sleeve · Mounting accessories
GASA-MIE-CTR-12M-1 AX Industrial App · Digital services
GASA-MIE-CTR-12M-10 AX Industrial App · Digital services
GASA-MIE-CTR-12M-100 AX Industrial App · Digital services
GASA-MIE-CTR-12M-50 AX Industrial App · Digital services
SIEN-M8B-PS-K-LProximity sensor · Cylinder sensors for direct mounting
SIEN-M8B-PS-S-LProximity sensor · Cylinder sensors for direct mounting
SIEN-M8B-PO-K-LProximity sensor · Cylinder sensors for direct mounting
SIEN-M8B-PO-S-LProximity sensor · Cylinder sensors for direct mounting
NST-8-M6-1Slot nut · Mounting accessories
ABP-8Slot cover · Mounting accessories
SMBK-8Clip · Mounting accessories
HMIA-E07- -Support profile · Mounting accessories
SMM-8Positioning element · Mounting accessories
SIES-8M-PS-24V-K-7,5-OEProximity sensor · Cylinder sensors for direct mounting
SIES-8M-PS-24V-K-0,3-M8DProximity sensor · Cylinder sensors for direct mounting
SIES-8M-PS-24V-K-2,5-M8DProximity sensor · Cylinder sensors for direct mounting
SIES-8M-PS-24V-K-5,0-M8DProximity sensor · Cylinder sensors for direct mounting
SIES-8M-PS-24V-K-10-M8DProximity sensor · Cylinder sensors for direct mounting
SIES-8M-PO-24V-K-2,5-M8DProximity sensor · Cylinder sensors for direct mounting
SIES-8M-PO-24V-K-5,0-M8DProximity sensor · Cylinder sensors for direct mounting
SIES-8M-PO-24V-K-10-M8DProximity sensor · Cylinder sensors for direct mounting
SIES-8M-NS-24V-K-7,5-OEProximity sensor · Cylinder sensors for direct mounting
SIES-8M-NS-24V-K-0,3-M8DProximity sensor · Cylinder sensors for direct mounting
SIES-8M-NS-24V-K-2,5-M8DProximity sensor · Cylinder sensors for direct mounting
SIES-8M-NS-24V-K-5,0-M8DProximity sensor · Cylinder sensors for direct mounting
SIES-8M-NS-24V-K-10-M8DProximity sensor · Cylinder sensors for direct mounting
SIES-8M-NO-24V-K-2,5-M8DProximity sensor · Cylinder sensors for direct mounting
SIES-8M-NO-24V-K-5,0-M8DProximity sensor · Cylinder sensors for direct mounting
SIES-8M-NO-24V-K-10-M8DProximity sensor · Cylinder sensors for direct mounting
EMGA-80-P-G3-SAS-100Gear unit · Mounting accessories
EMGA-80-P-G5-SAS-100Gear unit · Mounting accessories
KYE-120Shock absorber retainer · Mounting accessories
EAMD-56-46-19-23X27Coupling · Mounting accessories
EAMD-56-46-20-23X27Coupling · Mounting accessories
EAMD-56-46-24-23X27Coupling · Mounting accessories
EAMK-A-L62-62ACoupling housing · Mounting accessories
EAMF-A-62A-80GMotor flange · Mounting accessories
EAMF-A-62A-140AMotor flange · Mounting accessories
EAMF-A-62A-100AMotor flange · Mounting accessories
EAMB-34-6-25X26-23X27Drive shaft adapter · Mounting accessories
SF-EGC-2-120Switch lug · Mounting accessories
HPE-120Foot mounting · Cylinder mountings
DHAA-D-L-40-H2Adapter kit · Mounting accessories
DHAA-D-L-40-G7-25Adapter kit · Mounting accessories
DHAM-ME-N2-CLAdapter kit · Mounting accessories
KSK-120-Connecting shaft · Mounting accessories
NPE-120Emergency buffer · Mounting accessories
ABP-5-S1Slot cover · Mounting accessories
EAHM-L2-M6-65Screw kit · Mounting accessories
EAHM-L2-M6-65-LScrew kit · Mounting accessories
EAHM-L2-M6-70Screw kit · Mounting accessories
DHAM-ME-N2-50-CLAdapter kit · Mounting accessories
EMMT-AS-80-H-HS-RSBServo motor · Electrical accessories
EMMT-AS-80-H-HS-RSServo motor · Electrical accessories
NEBM-M12G8-E-5-S1G9-V3Encoder cable · Electrical accessories
NEBM-M12G8-E-10-S1G9-V3Encoder cable · Electrical accessories
NEBM-M12G8-E-15-S1G9-V3Encoder cable · Electrical accessories
NEBM-M12G8-E- -S1G9-V3Encoder cable · Electrical accessories
EMGA-80-P-G3-EAS-80Gear unit · Mounting accessories
EMGA-80-P-G5-EAS-80Gear unit · Mounting accessories
EAHF-L5-120-PCentral support · Cylinder mountings
EMMT-AS-80-Servo motor · Electrical accessories
EMMT-AS-80-S-LS-RSServo motor · Electrical accessories
EMMT-AS-80-S-LS-RMServo motor · Electrical accessories
EMMT-AS-80-S-LS-RSBServo motor · Electrical accessories
EMMT-AS-80-S-LS-RMBServo motor · Electrical accessories
EMMT-AS-80-S-HS-RSServo motor · Electrical accessories
EMMT-AS-80-S-HS-RMServo motor · Electrical accessories
EMMT-AS-80-S-HS-RSBServo motor · Electrical accessories
EMMT-AS-80-S-HS-RMBServo motor · Electrical accessories
EMMT-AS-80-M-LS-RSServo motor · Electrical accessories
EMMT-AS-80-M-LS-RMServo motor · Electrical accessories
EMMT-AS-80-M-LS-RSBServo motor · Electrical accessories
EMMT-AS-80-M-LS-RMBServo motor · Electrical accessories
EMMT-AS-80-M-HS-RSServo motor · Electrical accessories
EMMT-AS-80-M-HS-RMServo motor · Electrical accessories
EMMT-AS-80-M-HS-RSBServo motor · Electrical accessories
EMMT-AS-80-M-HS-RMBServo motor · Electrical accessories
EMMT-AS-80-L-LS-RSServo motor · Electrical accessories
EMMT-AS-80-L-LS-RMServo motor · Electrical accessories
EMMT-AS-80-L-LS-RSBServo motor · Electrical accessories
EMMT-AS-80-L-LS-RMBServo motor · Electrical accessories
EMMT-AS-80-L-HS-RSServo motor · Electrical accessories
EMMT-AS-80-L-HS-RMServo motor · Electrical accessories
EMMT-AS-80-L-HS-RSBServo motor · Electrical accessories
EMMT-AS-80-L-HS-RMBServo motor · Electrical accessories
EMMT-AS-100-S-HS-RSServo motor · Electrical accessories
EMMT-AS-100-S-HS-RMServo motor · Electrical accessories
EMMT-AS-100-S-HS-RSBServo motor · Electrical accessories
EMMT-AS-100-S-HS-RMBServo motor · Electrical accessories
EMMT-AS-100-M-HS-RSServo motor · Electrical accessories
EMMT-AS-100-M-HS-RMServo motor · Electrical accessories
EMMT-AS-100-M-HS-RSBServo motor · Electrical accessories
EMMT-AS-100-M-HS-RMBServo motor · Electrical accessories
EMMT-AS-100-L-HS-RSServo motor · Electrical accessories
EMMT-AS-100-L-HS-RMServo motor · Electrical accessories
EMMT-AS-100-L-HS-RSBServo motor · Electrical accessories
EMMT-AS-100-L-HS-RMBServo motor · Electrical accessories
EAMM-A-L62-88AAxial kit · Mounting accessories
EAMM-A-L62-84AAAxial kit · Mounting accessories
EAMM-A-L62-108AAAxial kit · Mounting accessories
EAMM-A-L62-56GAAxial kit · Mounting accessories
EAMM-A-L62-60HAxial kit · Mounting accessories
EAMM-A-L62-70GAAxial kit · Mounting accessories
EAMM-A-L62-75GAAxial kit · Mounting accessories
EAMM-A-L62-68GAAxial kit · Mounting accessories
EAMM-A-L62-72GAAxial kit · Mounting accessories
EAMM-A-L62-90GBAxial kit · Mounting accessories
EAMM-A-L62-90GAAxial kit · Mounting accessories
EAMM-A-L62-115GAAxial kit · Mounting accessories
EAMM-A-L62-120GAxial kit · Mounting accessories
EAMM-A-L62-120GAAxial kit · Mounting accessories
EAMM-A-L62-120GBAxial kit · Mounting accessories
EAMM-A-L62-120GCAxial kit · Mounting accessories
NEBA-M8G3-U-10-N-LE3 Connecting cable · Connecting cables
NEBA-M8W3-U-10-N-LE3 Connecting cable · Connecting cables
NEBA-M8G3-U-0.5-N-M12G3Connecting cable · Connecting cables
NEBA-M8G3-U-0.5-N-M8G3Connecting cable · Connecting cables
NEBA-M8G3-U-1-N-M8G3Connecting cable · Connecting cables
NEBA-M8G3-U-1.5-N-M8G3Connecting cable · Connecting cables
NEBA-M8G3-U-10-N-M8G3Connecting cable · Connecting cables
NEFM-S1G9-K-0,5-R3G8Adapter · Electrical accessories
EMGA-80-P-G8-EAS-80Gear unit · Mounting accessories
EMGA-80-P-G12-EAS-80Gear unit · Mounting accessories
EMGA-80-P-G20-EAS-80Gear unit · Mounting accessories
EMGA-80-P-G8-SAS-100Gear unit · Mounting accessories
EMGA-80-P-G12-SAS-100Gear unit · Mounting accessories
EMGA-80-P-G20-SAS-100Gear unit · Mounting accessories
EAMF-A-62A-150AMotor flange · Mounting accessories
EAMF-A-95A-150AMotor flange · Mounting accessories
EAMM-A-L62-150AAxial kit · Mounting accessories
EAMM-A-K62-150AAxial kit · Mounting accessories
EMMT-AS-80-S-LS-RMY Servo motor · Electrical accessories
EMMT-AS-80-S-LS-RMYBServo motor · Electrical accessories
EMMT-AS-80-S-HS-RMYServo motor · Electrical accessories
EMMT-AS-80-S-HS-RMYBServo motor · Electrical accessories
EMMT-AS-80-M-LS-RMYServo motor · Electrical accessories
EMMT-AS-80-M-LS-RMYBServo motor · Electrical accessories
EMMT-AS-80-M-HS-RMYServo motor · Electrical accessories
EMMT-AS-80-M-HS-RMYBServo motor · Electrical accessories
EMMT-AS-80-L-LS-RMYServo motor · Electrical accessories
EMMT-AS-80-L-LS-RMYBServo motor · Electrical accessories
EMMT-AS-80-L-HS-RMYServo motor · Electrical accessories
EMMT-AS-80-L-HS-RMYBServo motor · Electrical accessories
EMMT-AS-100-S-HS-RMYServo motor · Electrical accessories
EMMT-AS-100-S-HS-RMYBServo motor · Electrical accessories
EMMT-AS-100-M-HS-RMYServo motor · Electrical accessories
EMMT-AS-100-M-HS-RMYBServo motor · Electrical accessories
EMMT-AS-100-L-HS-RMYServo motor · Electrical accessories
EMMT-AS-100-L-HS-RMYBServo motor · Electrical accessories
EMMT-AS-100-H-HS-RMYServo motor · Electrical accessories
EMMT-AS-100-H-HS-RMYBServo motor · Electrical accessories
EAMM-A-L62-100A-G2Axial kit · Mounting accessories
EMMT-AS-80-H-HS-RMBServo motor · Electrical accessories
EMMT-AS-80-H-HS-RMServo motor · Electrical accessories
EMMT-AS-100-H-HS-RMBServo motor · Electrical accessories
EMMT-AS-100-H-HS-RSBServo motor · Electrical accessories
EMMT-AS-100-H-HS-RMServo motor · Electrical accessories
EMMT-AS-100-H-HS-RSServo motor · Electrical accessories
EMMT-AS-80-H-HS-RMYServo motor · Electrical accessories
EMMT-AS-80-H-HS-RMYBServo motor · Electrical accessories
EAMM-A-L62-80G-G2Axial kit · Mounting accessories

Related Products

YXCF-1
Festo YXCF-1
View Details

Festo

YXCF-1

MFR #YXCF-1

SKU #YLSBOLBVXXHTEQR

YXCF-2
Festo YXCF-2
View Details

Festo

YXCF-2

MFR #YXCF-2

SKU #YLSL6U6NTXCKHGD

YXCF-3
Festo YXCF-3
View Details

Festo

YXCF-3

MFR #YXCF-3

SKU #YLSZVSBYGKJ08DU

YXCF-4
Festo YXCF-4
View Details

Festo

YXCF-4

MFR #YXCF-4

SKU #YLSIOSKDCAW31TC

YXCF-1-B
Festo YXCF-1-B
View Details

Festo

YXCF-1-B

MFR #YXCF-1-B

SKU #YLS8M1FM2JHSBU

YXCF-2-B
Festo YXCF-2-B
View Details

Festo

YXCF-2-B

MFR #YXCF-2-B

SKU #YLSAJENB5OIQWGN

YXCL-1-D
Festo YXCL-1-D
View Details

Festo

YXCL-1-D

MFR #YXCL-1-D

SKU #YLS74NKJF7W65BZ

YXCL-2-D
Festo YXCL-2-D
View Details

Festo

YXCL-2-D

MFR #YXCL-2-D

SKU #YLS1RJGPTBKRKVF

YXCL-1
Festo YXCL-1
View Details

Festo

YXCL-1

MFR #YXCL-1

SKU #YLSFPVVOW7GENV

YXCR-1
Festo YXCR-1
View Details

Festo

YXCR-1

MFR #YXCR-1

SKU #YLSW4HQHDBEYOQG

Featured Products

MDBB63-100Z
SMC MDBB63-100Z
View Details

SMC

MDBB63-100Z

MFR #MDBB63-100Z

SKU #YLSNBPQBGLI90UX

ZCUKQ25-50D
SMC ZCUKQ25-50D
View Details

SMC

ZCUKQ25-50D

MFR #ZCUKQ25-50D

SKU #YLSQ684QXTNN958

NCMC150-0600-X103US
SMC NCMC150-0600-X103US
View Details

SMC

NCMC150-0600-X103US

MFR #NCMC150-0600-X103US

SKU #YLS468HQT0B65QG

MXS-AS16L
SMC MXS-AS16L
View Details

SMC

MXS-AS16L

MFR #MXS-AS16L

SKU #YLSAP0XXFGFSWY6

AL30-03-8-A
SMC AL30-03-8-A
View Details

SMC

AL30-03-8-A

MFR #AL30-03-8-A

SKU #YLS6GDABZE4BN7A

SY5420-5DZ-01
SMC SY5420-5DZ-01
View Details

SMC

SY5420-5DZ-01

MFR #SY5420-5DZ-01

SKU #YLSQW9MERWL033X

NCDJ2L10-300-B
SMC NCDJ2L10-300-B
View Details

SMC

NCDJ2L10-300-B

MFR #NCDJ2L10-300-B

SKU #YLSRRDWPL50RWQ2

AW20-N02CG-6CZ-B
SMC AW20-N02CG-6CZ-B
View Details

SMC

AW20-N02CG-6CZ-B

MFR #AW20-N02CG-6CZ-B

SKU #YLSNOOF0IBCZ3J3

NCDMC150-0600-X155US
SMC NCDMC150-0600-X155US
View Details

SMC

NCDMC150-0600-X155US

MFR #NCDMC150-0600-X155US

SKU #YLS8ICKGSKYC93L

Related Searches

Festo EGC-120-600-TB-KF-0H-GK priceFesto EGC-120-600-TB-KF-0H-GK quotebuy Festo EGC-120-600-TB-KF-0H-GKEGC-120-600-TB-KF-0H-GK priceEGC-120-600-TB-KF-0H-GK stock availabilityFesto spare partsFesto EGC-120-600-TB-KF-0H-GK equivalentFesto EGC-120-600-TB-KF-0H-GK specifications
