How can I get a price quote for Festo DRRS-25-180-FH-PA?

You can request a fast quote for Festo DRRS-25-180-FH-PA from Yılsa Engineering. Reference part number YLS2LWRKDRWDWAO. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Festo DRRS-25-180-FH-PA in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Festo DRRS-25-180-FH-PA genuine and new?

Yes. This Festo product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Festo DRRS-25-180-FH-PA?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

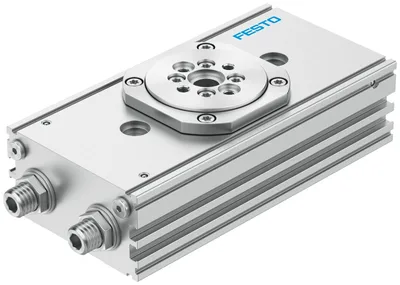

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

Festo DRRS-25-180-FH-PA

Semi-rotary drive. Twin-piston drive, power transmission via rack and pinion principle. Attractively priced best-fit semi-rotary drive for universal use. For torque requirements up to 33 Nm at 0.6 MPa. Recommended for production plants for the manufacture of Li-ion batteries (F1A)

FestoMFR # DRRS-25-180-FH-PASKU # YLS2LWRKDRWDWAO

Size25

Cushioning angle25.5

Axial eccentricity poppet valve0.07

Swivel angle180

Min. swivel angle45

Max. swivel angle200

Have questions?Chat on WhatsApp

About This Product

Festo DRRS-25-180-FH-PA

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Size25

Cushioning angle25.5

Setting range of swivel angle for each end position+10 /-100 deg

Axial eccentricity poppet valve0.07

Swivel angle180

Min. swivel angle45

Max. swivel angle200

CushioningElastic cushioning rings/plates at both ends

Mounting positionAny

DesignRack and pinion

Position detectionVia proximity switch

Symbol00991265

Operating pressure0.3, 0.8

Operating pressure3, 8

Repetition accuracy0.07

Mode of operationDouble-acting

Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]

Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)

Corrosion resistance class CRC1 - Low corrosion stress

LABS (PWIS) conformityVDMA24364-C1-L

Suitability for the production of Li-ion batteriesSuitable for battery production with reduced Cu/Zn/Ni values (F1a)

Cleanroom suitability, measured according to ISO 14644-14Class 9 according to ISO 14644-1

Storage temperature-20, 60

Ambient temperature0, 60

Theoretical torque at 0.6 MPa (6 bar, 87 psi)6.6

Permissible mass moment of inertia0.04

Max. bending moment10

Max. axial load static450

Product weight1240

Type of mountingWith mounting kit, With through-hole, With female thread

Pneumatic connectionM5

Note on materialsRoHS compliant

Material sealsNBR, TPE-U(PU)

Material housingAnodised aluminium

Flange shaft materialWrought aluminium alloy

Pinion materialTempered steel

Accessories 47

Genuine accessories that can be used with the Festo DRRS-25-180-FH-PA motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
DARF-Q13-25	Drive shaft adapter · Mounting accessories
GRLA-M5-QS-3-LF-C	One-way flow control valve · Function fittings
GRLA-M5-QS-4-LF-C	One-way flow control valve · Function fittings
GRLA-M5-QS-3-D	One-way flow control valve · Function fittings
GRLA-M5-QS-4-D	One-way flow control valve · Function fittings
GRLA-M5-QS-6-D	One-way flow control valve · Function fittings
GRLA-M5-QS-3-RS-D	One-way flow control valve · Function fittings
GRLA-M5-QS-4-RS-D	One-way flow control valve · Function fittings
GRLA-M5-QS-6-RS-D	One-way flow control valve · Function fittings
SMT-8M-A	Proximity sensor · Cylinder sensors for direct mounting
SMT-8M-A-PS-24V-E-0,3-M8D	Proximity sensor · Proximity sensors
SMT-8M-A-PS-24V-E-2,5-OE	Proximity sensor · Proximity sensors
SMT-8M-A-PS-24V-E-5,0-OE	Proximity sensor · Cylinder sensors for direct mounting
SMT-8M-A-PS-24V-E-0,3-M12	Proximity sensor · Cylinder sensors for direct mounting
SMT-8M-A-NS-24V-E-2,5-OE	Proximity sensor · Proximity sensors
SMT-8M-A-NS-24V-E-0,3-M8D	Proximity sensor · Proximity sensors
SMT-8M-A-PO-24V-E-7,5-OE	Proximity sensor · Cylinder sensors for direct mounting
EAHF-L2-25-P	Profile mounting · Cylinder mountings
EAHF-L2-25-P-S	Profile mounting · Cylinder mountings
ZBH-9-B	Centring sleeve · Mounting accessories
ZBH-12-B	Centring sleeve · Mounting accessories
SMT-8M-A-NO-24V-E-2,5-OE	Proximity sensor · Cylinder sensors for direct mounting
SMT-8M-A-NO-24V-E-7,5-OE	Proximity sensor · Cylinder sensors for direct mounting
SDBT-MSB-1L-PU-K-2-LE	Proximity switch · Cylinder sensors for direct mounting
SDBT-MSB-1L-NU-K-2-LE	Proximity switch · Cylinder sensors for direct mounting
SDBT-MSB-1L-PU-K-0.3-M8	Proximity switch · Cylinder sensors for direct mounting
SDBT-MSB-1L-NU-K-0.3-M8	Proximity switch · Cylinder sensors for direct mounting
SMT-8M-A-ZS-24V-E-5,0-OE	Proximity switch · Cylinder sensors for direct mounting
QSM-M5-4	Push-in fitting · Fittings
QSML-M5-4	Push-in L-fitting · Fittings
PUN-H-4X0,75-NT	Plastic tubing · Tubes
PUN-H-4X0,75-BL	Plastic tubing · Tubes
PUN-H-4X0,75-SW	Plastic tubing · Tubes
PUN-H-4X0,75-TBL	Plastic tubing · Tubes
VFOE-LE-T-M5-Q4	One-way flow control valve · Function fittings
SDBT-MSX-1L-PU-E-0.3-N-M8	Proximity sensor · Proximity sensors
SDBT-MSX-1L-PU-E-2.5-N-LE	Proximity sensor · Proximity sensors
SDBT-MSX-1L-NU-E-0.3-N-M8	Proximity sensor · Proximity sensors
SDBT-MSX-1L-NU-E-2.5-N-LE	Proximity sensor · Proximity sensors
NEBA-M8G3-U-2.5-N-LE3	Connecting cable · Connecting cables
NEBA-M8G3-U-5-N-LE3	Connecting cable · Connecting cables
NEBA-M8W3-U-2.5-N-LE3	Connecting cable · Connecting cables
NEBA-M12G5-U-5-N-LE3	Connecting cable · Connecting cables
NEBA-M8W3-U-5-N-LE3	Connecting cable · Connecting cables
NEBA-M12G5-U-2.5-N-LE3	Connecting cable · Connecting cables
NEBA-M12W5-U-2.5-N-LE3	Connecting cable · Connecting cables
NEBA-M12W5-U-5-N-LE3	Connecting cable · Connecting cables
