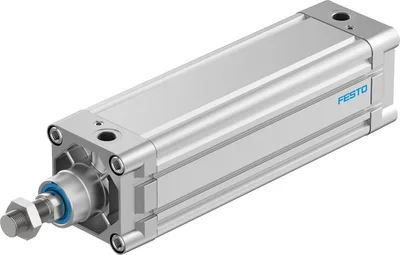

Festo DNC-125- -PPV

ISO cylinder. ISO 15552 (ISO 6431, VDMA 24562). Wide range of variants for customised applications. Comprehensive range of mounting accessories for just about every type of installation. For position sensing. Sustainable thanks to extended life cycle and easier repairs

FestoMFR # DNC-125- -PPVSKU # YLSUCSUUGHNKLLB

Stroke3, 2000

Piston diameter125 mm

Piston rod threadM27x2

Mounting positionAny

Conforms to standardISO 15552

Piston-rod endMale thread

Have questions?Chat on WhatsApp

About This Product

Festo DNC-125- -PPV

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Stroke3, 2000

Piston diameter125 mm

Piston rod threadM27x2

CushioningPneumatic cushioning, adjustable at both ends

Mounting positionAny

Conforms to standardISO 15552

Piston-rod endMale thread

DesignPiston, Piston rod, Profile barrel

Position detectionNone

Symbol00991232

VariantsPiston rod at one end

Operating pressure0.06, 1

Operating pressure0.6, 10

Mode of operationDouble-acting

Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]

Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)

Corrosion resistance class CRC2 - Moderate corrosion stress

LABS (PWIS) conformityVDMA24364-B1/B2-L

Ambient temperature-20, 80

Impact energy in end positions5

Cushioning length42

Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke6881

Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke7363

Moving mass for 0 mm stroke2809

Additional moving mass per 10 mm stroke63

Basic weight for 0 mm stroke6771

Additional weight per 10 mm stroke168

Type of mountingWith female thread, With accessories

Pneumatic connectionG1/2

Note on materialsRoHS compliant

Material coverDie-cast aluminium, coated

Material sealsTPE-U(PU)

Material piston rodHigh-alloy steel

Material cylinder barrelWrought aluminium alloy, Smooth-anodised

Accessories 118

Genuine accessories that can be used with the Festo DNC-125- -PPV motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
SGS-M27X2	Rod eye · Piston-rod attachments
SNCB-125	Swivel flange · Cylinder mountings
QS-G1/2-12	Push-in fitting · Fittings
QSL-G1/2-12	Push-in L-fitting · Fittings
GRLA-1/2-QS-12-D	One-way flow control valve · Function fittings
PUN-H-12X2-BL	Plastic tubing · Tubes
FK-M27X2	Self-aligning rod coupler · Piston-rod attachments
SG-M27X2-B	Rod clevis · Piston-rod attachments
QS-G1/2-12-I	Push-in fitting · Fittings
PUN-H-12X2-NT	Plastic tubing · Tubes
PUN-H-12X2-SW	Plastic tubing · Tubes
PUN-H-12X2-TBL	Plastic tubing · Tubes
HNC-125	Foot mounting · Cylinder mountings
SNC-125	Swivel flange · Cylinder mountings
SNCS-125	Swivel flange · Cylinder mountings
SNCL-125	Swivel flange · Cylinder mountings
ZNCF-125	Trunnion flange · Cylinder mountings
VFOE-LE-T-G12-Q12	One-way flow control valve · Function fittings
VFOE-LE-T-G12-Q12-P20	One-way flow control valve · Function fittings
CK-1/2-PK-13	Quick connector · Quick connectors
LCK-1/2-PK-13	Elbow quick connector · Quick connectors
TCK-1/2-PK-13	T quick connector · Quick connectors
GRU-1/2-B	Flow control/silencer · Function fittings
KSG-M27X2	Coupling piece · Piston rod attachments
QSW-1/2-12	Push-in fitting · Push-in fittings
QSW-1/2-16	Push-in fitting · Push-in fittings
QS-1/2-12-20	Push-in fitting · Push-in fittings
QS-1/2-16-20	Push-in fitting · Push-in fittings
QSL-1/2-12-20	Push-in L-fitting · Push-in fittings
QSL-1/2-16-20	Push-in L-fitting · Push-in fittings
QS-G1/2-12-20	Push-in fitting · Push-in fittings
QS-G1/2-16-20	Push-in fitting · Push-in fittings
QSL-G1/2-12-20	Push-in L-fitting · Push-in fittings
QSL-G1/2-16-20	Push-in L-fitting · Push-in fittings
QS-1/2-10-50	Push-in fitting · Push-in fittings
QSL-1/2-10-50	Push-in L-fitting · Push-in fittings
QSY-1/2-10	Push-in Y-fitting · Push-in fittings
GRLA-1/2-B	One-way flow control valve · Function fittings
QS-1/2-12	Push-in fitting · Push-in fittings
QS-1/2-16	Push-in fitting · Push-in fittings
QS-1/2-12-I	Push-in fitting · Push-in fittings
QSL-1/2-12	Push-in L-fitting · Push-in fittings
QSL-1/2-16	Push-in L-fitting · Push-in fittings
QSLL-1/2-12	Push-in L-fitting, long · Push-in fittings
QSLV-1/2-12	Push-in L-fitting · Push-in fittings
QSLV-1/2-16	Push-in L-fitting · Push-in fittings
QSLV-1/2-12-I	Push-in L-fitting · Push-in fittings
QST-1/2-12	Push-in T-fitting · Push-in fittings
QST-1/2-16	Push-in T-fitting · Push-in fittings
QSTL-1/2-12	Push-in T-fitting · Push-in fittings
QSTL-1/2-16	Push-in T-fitting · Push-in fittings
QSY-1/2-12	Push-in Y-fitting · Push-in fittings
QSYL-1/2-12	Push-in Y-fitting · Push-in fittings
QSTF-1/2-12-B	Push-in T-fitting · Push-in fittings
QSYLV-1/2-12	Push-in Y-fitting · Push-in fittings
QSYTF-1/2-12-B	Multiple distributor · Push-in fittings
QSLV2-1/2-12	Multiple distributor · Push-in fittings
QSLV3-1/2-12	Multiple distributor · Push-in fittings
QSLV4-1/2-12	Multiple distributor · Push-in fittings
QSLV6-1/2-12	Multiple distributor · Push-in fittings
QSR-1/2-12	Push-in fitting, rotatable · Push-in fittings
QSRL-1/2-12	Push-in L-fitting, rotatable · Push-in fittings
QSK-1/2-12	Push-in fitting, self-sealing · Push-in fittings
QSKL-1/2-12	Push-in L-fitting,self-sealing · Push-in fittings
QS-V0-1/2-10	Push-in fitting · Push-in fittings
QS-V0-1/2-12	Push-in fitting · Push-in fittings
QSL-V0-1/2-10	Push-in L-fitting · Push-in fittings
QSL-V0-1/2-12	Push-in L-fitting · Push-in fittings
QST-V0-1/2-10	Push-in T-fitting · Push-in fittings
QST-V0-1/2-12	Push-in T-fitting · Push-in fittings
DAMT-V7-125-A	Trunnion mounting kit · Cylinder mountings
FNC-125	Flange mounting · Cylinder mountings
DPNC-125	Multi-position kit · Mounting accessories
SNCB-125-R3	Swivel flange · Cylinder mountings
QS-1/2-3/8-I-U-M	Push-in fitting · Push-in fittings
QS-1/2-1/2-I-U-M	Push-in fitting · Push-in fittings
QS-G1/2-16	Push-in fitting · Push-in fittings
QSL-G1/2-16	Push-in L-fitting · Push-in fittings
QSLL-G1/2-12	Push-in L-fitting, long · Push-in fittings
QSLV-G1/2-12	Push-in L-fitting · Push-in fittings
QSLV-G1/2-16	Push-in L-fitting · Push-in fittings
QSLV-G1/2-12-I	Push-in L-fitting · Push-in fittings
QST-G1/2-12	Push-in T-fitting · Push-in fittings
QST-G1/2-16	Push-in T-fitting · Push-in fittings
QSTL-G1/2-12	Push-in T-fitting · Push-in fittings
QSTL-G1/2-16	Push-in T-fitting · Push-in fittings
QSY-G1/2-12	Push-in Y-fitting · Push-in fittings
QSYL-G1/2-12	Push-in Y-fitting · Push-in fittings
QSTF-G1/2-12	Push-in T-fitting · Push-in fittings
QSYLV-G1/2-12	Push-in Y-fitting · Push-in fittings
QSYTF-G1/2-12	Multiple distributor · Push-in fittings
QSLV2-G1/2-12	Multiple distributor · Push-in fittings
QSLV3-G1/2-12	Multiple distributor · Push-in fittings
QSLV4-G1/2-12	Multiple distributor · Push-in fittings
QSLV6-G1/2-12	Multiple distributor · Push-in fittings
QSR-G1/2-12	Push-in fitting, rotatable · Push-in fittings
QSRL-G1/2-12	Push-in L-fitting, rotatable · Push-in fittings
QSK-G1/2-12	Push-in fitting, self-sealing · Push-in fittings
QSKL-G1/2-12	Push-in L-fitting,self-sealing · Push-in fittings
QS-V0-G1/2-10	Push-in fitting · Push-in fittings
QS-V0-G1/2-12	Push-in fitting · Push-in fittings
QSL-V0-G1/2-10	Push-in L-fitting · Push-in fittings
QSL-V0-G1/2-12	Push-in L-fitting · Push-in fittings
QST-V0-G1/2-10	Push-in T-fitting · Push-in fittings
QST-V0-G1/2-12	Push-in T-fitting · Push-in fittings
QS-1/2-10	Push-in fitting · Push-in fittings
QS-1/2-10-I	Push-in fitting · Push-in fittings
QSL-1/2-10	Push-in L-fitting · Push-in fittings
QSLL-1/2-10	Push-in L-fitting, long · Push-in fittings
QSLL-G1/2-16	Push-in L-fitting, long · Push-in fittings
QST-1/2-10	Push-in T-fitting · Push-in fittings
HGL-1/2-B	Piloted check valve · Function fittings
HGL-1/2-QS-12	Piloted check valve · Function fittings
GRLA-1/2-QS-12-RS-D	One-way flow control valve · Function fittings
CK-1/2-PK-9	Quick connector · Quick connectors
SNCS-125-R3	Swivel flange · Cylinder mountings
NEAU-A-N8-1	Mounting · Mounting accessories
NEAU-A-N8-2	Mounting · Mounting accessories
