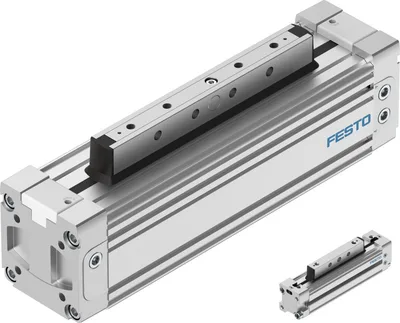

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

Festo DGC-K-80- -

Linear drive. Compact design: 30% smaller than basic design DGC-G. Basic drive without guide, for simple drive functions. Low moving dead weight. Symmetrical design. Sustainable in production thanks to reduced use of materials

FestoMFR # DGC-K-80- -SKU # YLSLKDIIAZ42XUN

Stroke1, 3000

Piston diameter80 mm

Mounting positionAny

Position detectionVia proximity switch

VariantsStandard piston

Operating pressure0.15, 0.8

Have questions?Chat on WhatsApp

About This Product

Festo DGC-K-80- -

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Stroke1, 3000

Piston diameter80 mm

CushioningPneumatic cushioning, adjustable at both ends

Mounting positionAny

Position detectionVia proximity switch

VariantsStandard piston

Operating pressure0.15, 0.8

Operating pressure1.5, 8

Mode of operationDouble-acting

CE mark (see declaration of conformity)To EU Explosion Protection Directive (ATEX)

UKCA marking (see declaration of conformity)To UK EX instructions

Explosion protectionZone 1 (ATEX), Zone 2 (ATEX), Zone 22 (ATEX)

ATEX category gasII 2G

ATEX category dustII 3D

Explosion ignition protection type for gasEx h IIC T4 Gb X

Explosion ignition protection type for dustEx h IIIC T120°C Dc X

Explosion ambient temperature-10°C <= Ta <= +60°C

Operating mediumCompressed air to ISO 8573-1:2010 [7:-:-]

Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)

Corrosion resistance class CRC1 - Low corrosion stress

LABS (PWIS) conformityVDMA24364-B1/B2-L

Suitable for use with foodSee supplementary material information

Ambient temperature-10, 60

Cushioning length83

Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke3016

Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke3016

alternative connectionsSee product drawing

Type of mountingWith accessories

Note on materialsRoHS compliant

Material coverGravity die-cast aluminium

Material sealsNBR, TPE-U(PU)

Accessories 121

Genuine accessories that can be used with the Festo DGC-K-80- - motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
HP-80	Foot mounting · Cylinder mountings
DAMF-80-FKP	Adapter plate · Cylinder mountings
MUP-80	Central support · Cylinder mountings
DARD-L1-80-S	Moment compensator · Cylinder mountings
QS-G1/2-12	Push-in fitting · Fittings
SMT-8M-A-PS-24V-E-0,3-M8D	Proximity sensor · Proximity sensors
DARD-L1-80-M	Moment compensator · Cylinder mountings
PUN-H-12X2-BL	Plastic tubing · Tubes
GRLA-1/2-QS-12-D	One-way flow control valve · Function fittings
SMT-8M-A-PS-24V-E-2,5-OE	Proximity sensor · Proximity sensors
PUN-H-12X2-NT	Plastic tubing · Tubes
SMT-8M-A-NS-24V-E-2,5-OE	Proximity sensor · Proximity sensors
PUN-H-12X2-SW	Plastic tubing · Tubes
SMT-8M-A-NS-24V-E-0,3-M8D	Proximity sensor · Proximity sensors
QS-G1/2-12-I	Push-in fitting · Fittings
PUN-H-12X2-TBL	Plastic tubing · Tubes
SDBT-MSX-1L-PU-E-0.3-N-M8	Proximity sensor · Proximity sensors
QSL-G1/2-12	Push-in L-fitting · Fittings
SDBT-MSX-1L-PU-E-2.5-N-LE	Proximity sensor · Proximity sensors
SDBT-MSX-1L-NU-E-2.5-N-LE	Proximity sensor · Proximity sensors
SDBT-MSX-1L-NU-E-0.3-N-M8	Proximity sensor · Proximity sensors
CK-1/2-PK-13	Quick connector · Quick connectors
LCK-1/2-PK-13	Elbow quick connector · Quick connectors
TCK-1/2-PK-13	T-quick connector · Quick connectors
GRU-1/2-B	Flow control/silencer · Function fittings
QSW-1/2-12	Push-in fitting · Push-in fittings
QSW-1/2-16	Push-in fitting · Push-in fittings
QS-1/2-12-20	Push-in fitting · Push-in fittings
QS-1/2-16-20	Push-in fitting · Push-in fittings
QSL-1/2-12-20	Push-in L-fitting · Push-in fittings
QSL-1/2-16-20	Push-in L-fitting · Push-in fittings
QS-G1/2-12-20	Push-in fitting · Push-in fittings
QS-G1/2-16-20	Push-in fitting · Push-in fittings
QSL-G1/2-12-20	Push-in L-fitting · Push-in fittings
QSL-G1/2-16-20	Push-in L-fitting · Push-in fittings
QS-1/2-10-50	Push-in fitting · Push-in fittings
QSL-1/2-10-50	Push-in L-fitting · Push-in fittings
QSY-1/2-10	Push-in Y-fitting · Push-in fittings
NST-8-M6-1	Slot nut · Mounting accessories
GRLA-1/2-B	One-way flow control valve · Function fittings
ABP-8	Slot cover · Mounting accessories
QS-1/2-12	Push-in fitting · Push-in fittings
QS-1/2-16	Push-in fitting · Push-in fittings
QS-1/2-12-I	Push-in fitting · Push-in fittings
QSL-1/2-12	Push-in L-fitting · Push-in fittings
QSL-1/2-16	Push-in L-fitting · Push-in fittings
QSLL-1/2-12	Push-in L-fitting, long · Push-in fittings
QSLV-1/2-12	Push-in L-fitting · Push-in fittings
QSLV-1/2-16	Push-in L-fitting · Push-in fittings
QSLV-1/2-12-I	Push-in L-fitting · Push-in fittings
QST-1/2-12	Push-in T-fitting · Push-in fittings
QST-1/2-16	Push-in T-fitting · Push-in fittings
QSTL-1/2-12	Push-in T-fitting · Push-in fittings
QSTL-1/2-16	Push-in T-fitting · Push-in fittings
QSY-1/2-12	Push-in Y-fitting · Push-in fittings
QSYL-1/2-12	Push-in Y-fitting · Push-in fittings
QSTF-1/2-12-B	Push-in T-fitting · Push-in fittings
QSYLV-1/2-12	Push-in Y-fitting · Push-in fittings
QSYTF-1/2-12-B	Multiple distributor · Push-in fittings
QSLV2-1/2-12	Multiple distributor · Push-in fittings
QSLV3-1/2-12	Multiple distributor · Push-in fittings
QSLV4-1/2-12	Multiple distributor · Push-in fittings
QSLV6-1/2-12	Multiple distributor · Push-in fittings
QSR-1/2-12	Push-in fitting, rotatable · Push-in fittings
QSRL-1/2-12	Push-in L-fitting, rotatable · Push-in fittings
QSK-1/2-12	Push-in fitting, self-sealing · Push-in fittings
QSKL-1/2-12	Push-in L-fitting,self-sealing · Push-in fittings
QS-V0-1/2-10	Push-in fitting · Push-in fittings
QS-V0-1/2-12	Push-in fitting · Push-in fittings
QSL-V0-1/2-10	Push-in L-fitting · Push-in fittings
QSL-V0-1/2-12	Push-in L-fitting · Push-in fittings
QST-V0-1/2-10	Push-in T-fitting · Push-in fittings
QST-V0-1/2-12	Push-in T-fitting · Push-in fittings
QS-1/2-3/8-I-U-M	Push-in fitting · Push-in fittings
QS-1/2-1/2-I-U-M	Push-in fitting · Push-in fittings
QS-G1/2-16	Push-in fitting · Push-in fittings
QSL-G1/2-16	Push-in L-fitting · Push-in fittings
QSLL-G1/2-12	Push-in L-fitting, long · Push-in fittings
QSLV-G1/2-12	Push-in L-fitting · Push-in fittings
QSLV-G1/2-16	Push-in L-fitting · Push-in fittings
QSLV-G1/2-12-I	Push-in L-fitting · Push-in fittings
QST-G1/2-12	Push-in T-fitting · Push-in fittings
QST-G1/2-16	Push-in T-fitting · Push-in fittings
QSTL-G1/2-12	Push-in T-fitting · Push-in fittings
QSTL-G1/2-16	Push-in T-fitting · Push-in fittings
QSY-G1/2-12	Push-in Y-fitting · Push-in fittings
QSYL-G1/2-12	Push-in Y-fitting · Push-in fittings
QSTF-G1/2-12	Push-in T-fitting · Push-in fittings
QSYLV-G1/2-12	Push-in Y-fitting · Push-in fittings
QSYTF-G1/2-12	Multiple distributor · Push-in fittings
QSLV2-G1/2-12	Multiple distributor · Push-in fittings
QSLV3-G1/2-12	Multiple distributor · Push-in fittings
QSLV4-G1/2-12	Multiple distributor · Push-in fittings
QSLV6-G1/2-12	Multiple distributor · Push-in fittings
QSR-G1/2-12	Push-in fitting, rotatable · Push-in fittings
QSRL-G1/2-12	Push-in L-fitting, rotatable · Push-in fittings
QSK-G1/2-12	Push-in fitting, self-sealing · Push-in fittings
QSKL-G1/2-12	Push-in L-fitting,self-sealing · Push-in fittings
QS-V0-G1/2-10	Push-in fitting · Push-in fittings
QS-V0-G1/2-12	Push-in fitting · Push-in fittings
QSL-V0-G1/2-10	Push-in L-fitting · Push-in fittings
QSL-V0-G1/2-12	Push-in L-fitting · Push-in fittings
QST-V0-G1/2-10	Push-in T-fitting · Push-in fittings
QST-V0-G1/2-12	Push-in T-fitting · Push-in fittings
QS-1/2-10	Push-in fitting · Push-in fittings
QS-1/2-10-I	Push-in fitting · Push-in fittings
QSL-1/2-10	Push-in L-fitting · Push-in fittings
QSLL-1/2-10	Push-in L-fitting, long · Push-in fittings
QSLL-G1/2-16	Push-in L-fitting, long · Push-in fittings
QST-1/2-10	Push-in T-fitting · Push-in fittings
HGL-1/2-B	Piloted check valve · Function fittings
HGL-1/2-QS-12	Piloted check valve · Function fittings
GRLA-1/2-QS-12-RS-D	One-way flow control valve · Function fittings
CK-1/2-PK-9	Quick connector · Quick connectors
ABP-5-S1	Slot cover · Mounting accessories
SDBT-MS-20NL-ZN-E-5-LE-EX6	Proximity sensor · Cylinder sensors for direct mounting
SDBT-MS-20NL-ZN-E-10-LE-EX6	Proximity sensor · Cylinder sensors for direct mounting
NEAU-A-N8-1	Mounting · Mounting accessories
NEAU-A-N8-2	Mounting · Mounting accessories
SDBT-MS-20NL-ZN-E-2.5-LE-EX6	Proximity switch · Cylinder sensors for direct mounting
SDBT-MS-20NL-ZN-E-20-LE-EX6	Proximity switch · Cylinder sensors for direct mounting
