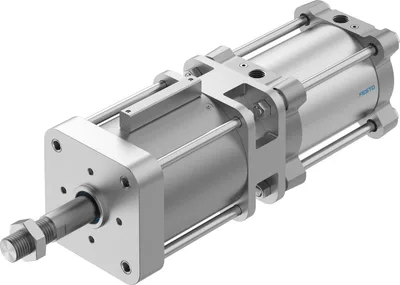

Festo DFLG-160- -

Cylinder with holding brake. Combination of holding brake and standards-based cylinder based on ISO 15552. Holding function: retains the piston rod by clamping with frictional locking. Emergency braking function: stops the movement of the piston rod by clamping with frictional locking. With safety functions. Variants to EU Explosion Protection Directive (ATEX). Optional: high level of corrosion protection. For position sensing

FestoMFR # DFLG-160- -SKU # YLSOQ0IVABEALJG

Stroke10, 2000

Piston diameter160 mm

Piston rod threadM36x2

Mounting positionAny

Piston-rod endMale thread

DesignPiston, Piston rod, Profile barrel

Have questions?Chat on WhatsApp

About This Product

Festo DFLG-160- -

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Stroke10, 2000

Piston diameter160 mm

Piston rod threadM36x2

Based on standardISO 15552 (previously also VDMA 24562, ISO 6431, NF E49 003.1, UNI 10290)

CushioningPneumatic cushioning, adjustable at both ends

Mounting positionAny

Type of clamping with direction of actionAt both ends, Clamping via spring force, released via compressed air

Piston-rod endMale thread

DesignPiston, Piston rod, Profile barrel

Position detectionVia proximity switch

Symbol00995696

VariantsPiston rod at one end

Safety functionHolding and stopping a movement

Performance Level (PL)Stopping, holding, blocking a movement/category 1, Performance Level c

Operating pressure0.06, 0.8

Operating pressure0.6, 8

Operating pressure8.7, 116

Max. permissible test pressure8

Min. release pressure3.8

Mode of operationDouble-acting

ApprovalGerman Technical Control Board (TÜV)

CE mark (see declaration of conformity)To EU Explosion Protection Directive (ATEX), To EC Machinery Directive

UKCA marking (see declaration of conformity)To UK regulations for machines

Explosion protectionZone 1 (ATEX), Zone 2 (ATEX), Zone 21 (ATEX), Zone 22 (ATEX)

Certificate issuing authorityGerman Technical Control Board (TÜV) CA 697

ATEX category gasII 2G

ATEX category dustII 2D

Explosion ignition protection type for gasEx h IIC T4 Gb

Explosion ignition protection type for dustEx h IIIC T120°C Db

Explosion ambient temperature-20°C <= Ta <= +60°C

Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]

Corrosion resistance class CRC1 - Low corrosion stress

LABS (PWIS) conformityVDMA24364 zone III

Ambient temperature-20, 80

Cushioning length48

Static holding force17000

Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke11310

Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke12064

Moving mass for 0 mm stroke7085

Additional moving mass per 10 mm stroke97

Basic weight for 0 mm stroke49660

Additional weight per 10 mm stroke208

Type of mountingWith female thread, With accessories

Release connection, clamping unitG3/8

Pneumatic connectionG3/4

Note on materialsRoHS compliant

Material coverDie-cast aluminium, Wrought aluminium alloy

Material sealsNBR, TPE-U(PU)

Material housingSteel

Material piston rodHard-chrome-plated steel

Material cylinder barrelSmooth-anodised wrought aluminium alloy

Accessories 50

Genuine accessories that can be used with the Festo DFLG-160- - motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
FK-M36X2	Self-aligning rod coupler · Mounting accessories
GRLA-3/4-B	One-way flow control valve · Mounting accessories
HNG-160	Foot mounting · Mounting accessories
SNGL-160	Swivel flange · Mounting accessories
SGS-M36X2	Rod eye · Mounting accessories
SMT-8M-A-PS-24V-E-0,3-M8D	Proximity sensor · Proximity sensors
PAN-R-22X2-SW	Plastic tubing · Tubes
SNG-160	Swivel flange · Mounting accessories
SNGB-160	Swivel flange · Mounting accessories
SG-M36X2	Rod clevis · Mounting accessories
SMT-8M-A-PS-24V-E-2,5-OE	Proximity sensor · Proximity sensors
DASP-M4-160-A	Sensor bracket · Retainer for proximity sensor
SMT-8M-A-NS-24V-E-0,3-M8D	Proximity sensor · Proximity sensors
SMT-8M-A-NS-24V-E-2,5-OE	Proximity sensor · Proximity sensors
CRSMT-8M-PS-24V-K-5,0-OE-EX2	Proximity sensor · Proximity sensors
SDBT-MS-20NL-ZN-E-10-LE-EX6	Proximity sensor · Proximity sensors
CRSMT-8M-PS-24V-K-0,3-M8D-EX2	Proximity sensor · Proximity sensors
SDBT-MS-20NL-ZN-E-5-LE-EX6	Proximity sensor · Proximity sensors
SDBT-MSX-1L-PU-E-0.3-N-M8	Proximity sensor · Proximity sensors
SDBT-MSX-1L-NU-E-0.3-N-M8	Proximity sensor · Proximity sensors
SDBT-MSX-1L-PU-E-2.5-N-LE	Proximity sensor · Proximity sensors
SDBT-MSX-1L-NU-E-2.5-N-LE	Proximity sensor · Proximity sensors
QS-G3/4-22	Push-in fitting · Fittings
N-3/4-P-13	Barbed hose fitting · Other connectors
N-3/4-P-19	Barbed hose fitting · Other connectors
GRU-3/4-B	Flow control/silencer · Function fittings
N-3/4-P-13-MS	Barbed hose fitting · Other connectors
N-3/4-P-19-MS	Barbed hose fitting · Other connectors
FNG-160	Flange mounting · Cylinder mountings
SME-8M-DS-24V-K-0,3-M8D	Proximity sensor · Cylinder sensors for direct mounting
SME-8M-DS-24V-K-2,5-OE	Proximity sensor · Cylinder sensors for direct mounting
SME-8M-DS-24V-K-5,0-OE	Proximity sensor · Cylinder sensors for direct mounting
SME-8M-ZS-24V-K-2,5-OE	Proximity sensor · Cylinder sensors for direct mounting
SME-8M-DS-24V-K-7,5-OE	Proximity sensor · Cylinder sensors for direct mounting
SME-8M-...-	Proximity sensor · Cylinder sensors for direct mounting
SME-8M-DO-24V-K-7,5-OE	Proximity sensor · Cylinder sensors for direct mounting
NPFC-D-R12-R34-M	Double nipple · Other connectors
NPFC-D-2R34-M	Double nipple · Other connectors
NEAU-A-N8-1	Mounting · Mounting accessories
NEAU-A-N8-2	Mounting · Mounting accessories
SDAS-MHS-M40-1L-PNLK-PN-E-0.3-M8	Position transmitter · Cylinder sensors for direct mounting
SDAS-MHS-M40-1L-PNLK-PN-E-2.5-LE	Position transmitter · Cylinder sensors for direct mounting
NPFC-D-G12-G34-M	Double nipple · Other connectors
NPFC-D-2G34-M	Double nipple · Other connectors
NPFC-R-G34-G14-MF	Reducing nipple · Other connectors
NPFC-R-G34-G38-MF	Reducing nipple · Other connectors
NPFC-R-G34-G12-MF-P50	Reducing nipple · Other connectors
DADG-D-F8-40	Proximity switch · Cylinder sensors for direct mounting
SDBT-MS-20NL-ZN-E-2.5-LE-EX6	Proximity switch · Cylinder sensors for direct mounting
SDBT-MS-20NL-ZN-E-20-LE-EX6	Proximity switch · Cylinder sensors for direct mounting
