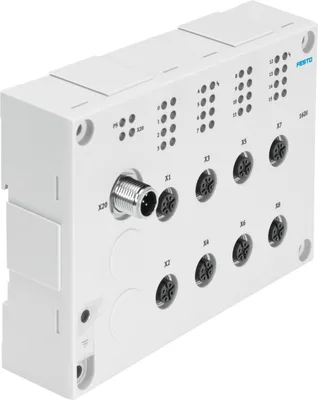

FESTO CTSL-D-16E-M12-5

Input module. For installation system CTEL. For recording sensor input signals. Display of the input statuses for each input signal via an assigned LED. Diagnostic LED for short circuit/overload in sensor supply

FESTOMFR # CTSL-D-16E-M12-5SKU # CEY-937FC781B66C

ProtocolI-Port, IO-Link®

Dimensions (W x L x H)143 mm x 103 mm x 32 mm

Type of mountingWith through-hole, via DIN rail

Product weight250

Ambient temperature-5, 50

Storage temperature-20, 70

Have questions?Chat on WhatsApp

About This Product

FESTO CTSL-D-16E-M12-5

Genuine, certified FESTO product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

ProtocolI-Port, IO-Link®

Dimensions (W x L x H)143 mm x 103 mm x 32 mm

Type of mountingWith through-hole, via DIN rail

Product weight250

Ambient temperature-5, 50

Storage temperature-20, 70

Degree of protectionIP65, IP67

Corrosion resistance class CRC2 - Moderate corrosion stress

LABS (PWIS) conformityVDMA24364-B2-L

CE mark (see declaration of conformity)To EU EMC Directive, In accordance with EU RoHS Directive

UKCA marking (see declaration of conformity)To UK RoHS instructions

KC markKC-EMV

ApprovalRCM, c UL us - Listed (Oil)

Certificate issuing authorityUL E239998

Note on materialsRoHS compliant

Material housingReinforced PA

Material coverReinforced PA

LED display, product-specific1 hp electrical operating voltage, 16 Channel status, 2 Group diagnostics

LED display, bus-specificX20: I-Port / IO-Link®

Max. number of inputs16

Baud rate38.4 kbps, 230.4 kbps

Electrical connectionM12

Operational voltage range DC18, 30

Nominal operating voltage DC24

Current consumption at nominal operating voltage, logic35

Reverse polarity protectionFor operating voltage

Characteristic for inputsIEC 1131-T2

Switching levelSignal 0: <= 5 V, Signal 1: ≥ 11 V

Switching logic for inputsPNP (positive switching)

Input debounce time0.5 ms (3 ms, 10 ms, 20 ms, parameterisable)

Max. total current per module1.2

Isolation channel - channelNo

Fuse protection (short circuit)Internal electronic fuse protection for each group

IO-Link, connection technologyDevice, 5-pin

IO-Link, Number of ports1

IO-Link, Port classB

IO-Link, Protocol versionDevice V 1.0

IO-Link, communication modeCOM2 (38.4 kBaud), COM3 (230.4 kBaud)

IO-Link, Process data length IN2 bytes

IO-Link, Min. cycle timeDevice 3.2 ms

Accessories 4

Genuine accessories that can be used with the FESTO CTSL-D-16E-M12-5 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
NECB-S-M12G4-C2	Plug · Electrical accessories
NECB-S-M12G4-C2-D	Plug · Electrical accessories
NECB-S-M12G5-C2	Plug · Electrical accessories
NECB-S-M12G5-C2-D	Plug · Electrical accessories
