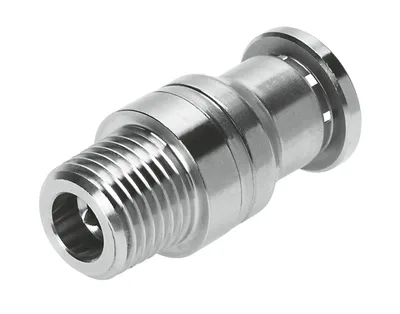

FESTO CRQS-1/8-8-I

Push-in fitting. Maximum corrosion resistance (corrosion resistance class CRC 4 to Festo standard 940 070) and chemical resistance. Food grade see www.festo.com/certificates/CRQS. Operating media: compressed air, vacuum, (water). Stainless steel. Straight shape, L-shape, T-shape, Y-shape, push-in bulkhead connector

FESTOMFR # CRQS-1/8-8-ISKU # CEY-937FC7825FBD

SizeStandard

Nominal size5.1

Tubing insertion depth21.5

Mounting positionAny

DesignStraight design

Size of pack1

Have questions?Chat on WhatsApp

About This Product

FESTO CRQS-1/8-8-I

Genuine, certified FESTO product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

SizeStandard

Nominal size5.1

Tubing insertion depth21.5

Mounting positionAny

DesignStraight design

Size of pack1

DesignPush-pull principle

Operating pressure complete temperature range-0.095, 1

Operating pressure complete temperature range-0.95, 10

Operating pressure complete temperature range-13.775, 145

Temperature-dependent operating pressure-0.095, 1

Temperature-dependent operating pressure-0.95, 10

Temperature-dependent operating pressure-13.775, 145

Note on operating pressureWater: max. 0.6 MPa at max. 50°C

Operating mediumCompressed air to ISO 8573-1:2010 [7:-:-], Water (liquid, ice-free)

Note on operating and pilot mediumLubricated operation possible

Corrosion resistance class CRC4 - Very high corrosion stress

LABS (PWIS) conformityVDMA24364-B1/B2-L

Suitable for use with foodSee supplementary material information

Ambient temperature-15, 120

Product weight12

Suitable cablesPFAN

Type of mountingInternal hexagon A/F 5

Pneumatic connection, port 1Male thread R1/8

Pneumatic connection, port 2For tubing outside diameter of 8 mm

Colour of release ringSilver

Material screwed plugHigh-alloy stainless steel

Note on materialsRoHS compliant

Material housingHigh-alloy stainless steel

Material release ringHigh-alloy stainless steel

Material tubing sealFluoro rubber

Material tubing clamp componentHigh-alloy stainless steel

Thrust ring materialHigh-alloy stainless steel

Accessories 37

Genuine accessories that can be used with the FESTO CRQS-1/8-8-I motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
PFAN-8X1,25-NT	Plastic tubing · Tubes
PLN-8X1,25-NT	Plastic tubing · Tubing
PLN-8X1,25-SW	Plastic tubing · Tubing
PUN-H-8X1,25-NT	Plastic tubing · Tubing
PUN-H-8X1,25-BL	Plastic tubing · Tubing
PUN-H-8X1,25-SW	Plastic tubing · Tubing
PUN-H-8X1,25-DUO	DUO tubing · Tubing
PLN-8X1,25-BL	Plastic tubing · Tubing
PLN-8X1,25-SI	Plastic tubing · Tubing
PLN-8X1,25-RT	Plastic tubing · Tubing
PUN-H-8X1,25-SW-400	Plastic tubing · Tubing
PUN-H-8X1,25-BL-400	Plastic tubing · Tubing
PUN-H-8X1,25-NT-400	Plastic tubing · Tubing
PUN-H-8X1,25-SI-400	Plastic tubing · Tubing
PUN-H-8X1,25-SI	Plastic tubing · Tubing
PUN-H-8X1,25-RT	Plastic tubing · Tubing
PUN-H-8X1,25-GN	Plastic tubing · Tubing
PUN-H-8X1,25-GE	Plastic tubing · Tubing
PUN-H-8X1,25-TBL	Plastic tubing · Tubing
PUN-H-8X1,25-TBL-400	Plastic tubing · Tubing
PUN-H-8X1,25-TSW	Plastic tubing · Tubing
PUN-H-8X1,25-TSW-400	Plastic tubing · Tubing
PUN-H-8X1,25-TRT	Plastic tubing · Tubing
PUN-H-8X1,25-TRT-400	Plastic tubing · Tubing
PUN-H-8X1,25-TGN	Plastic tubing · Tubing
PUN-H-8X1,25-TGN-400	Plastic tubing · Tubing
PUN-H-8X1,25-TGE	Plastic tubing · Tubing
PUN-H-8X1,25-TGE-400	Plastic tubing · Tubing
PUN-H-F-8X1,25-RT	Plastic tubing · Tubing
PUN-H-F-8X1,25-BL	Plastic tubing · Tubing
PUN-H-F-8X1,25-TBL	Plastic tubing · Tubing
PUN-H-F-8X1,25-GN	Plastic tubing · Tubing
PUN-H-F-8X1,25-GE	Plastic tubing · Tubing
PUN-H-F-8X1,25-SW	Plastic tubing · Tubing
PUN-H-F-8X1,25-NT	Plastic tubing · Tubing
PUN-H-SF-8X1,55-SW	Plastic tubing · Tubing
PUN-H-SF-8X1,55-BL	Plastic tubing · Tubing
