How can I get a price quote for Festo CRDSNU-12-25-P-A?

You can request a fast quote for Festo CRDSNU-12-25-P-A from Yılsa Engineering. Reference part number YLS46HRLEXTUHCC. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Festo CRDSNU-12-25-P-A in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Festo CRDSNU-12-25-P-A genuine and new?

Yes. This Festo product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Festo CRDSNU-12-25-P-A?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

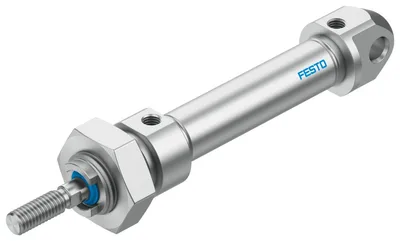

Festo CRDSNU-12-25-P-A

Standards-based cylinder. Corrosion resistant against aggressive ambient conditions. Easy-to-clean design. Long service life thanks to optional dry-running seal. Wide range of variants for customised applications. Self-adjusting pneumatic end-position cushioning saves time during commissioning and adapts optimally to load and speed changes. Suitable for direct contact with food according to European Regulation (EC) No. 1935/2004. FDA-compliant seal and NSF-H1 lubrication

FestoMFR # CRDSNU-12-25-P-ASKU # YLS46HRLEXTUHCC

Stroke25

Piston diameter12 mm

Piston rod threadM6

Mounting positionAny

Conforms to standardISO 6432

Piston-rod endMale thread

Have questions?Chat on WhatsApp

About This Product

Festo CRDSNU-12-25-P-A

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Stroke25

Piston diameter12 mm

Piston rod threadM6

CushioningElastic cushioning rings/plates at both ends

Mounting positionAny

Conforms to standardISO 6432

Piston-rod endMale thread

DesignPiston, Piston rod, Cylinder barrel

Position detectionVia proximity switch

Symbol00991217

Operating pressure0.1, 1

Operating pressure1, 10

Mode of operationDouble-acting

Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]

Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)

Corrosion resistance class CRC3 - high corrosion stress

LABS (PWIS) conformityVDMA24364-B2-L

Cleanroom suitability, measured according to ISO 14644-14Class 5 according to ISO 14644-1

Suitable for use with foodSee declaration of conformity

Ambient temperature-20, 80

Impact energy in end positions0.07

Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke51

Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke68

Moving mass for 0 mm stroke19

Additional moving mass per 10 mm stroke2

Basic weight for 0 mm stroke101

Additional weight per 10 mm stroke4

Type of mountingWith accessories

Pneumatic connectionM5

Note on materialsRoHS compliant

Material coverHigh-alloy stainless steel

Material piston rodHigh-alloy stainless steel

Material cylinder barrelHigh-alloy stainless steel

Accessories 34

Genuine accessories that can be used with the Festo CRDSNU-12-25-P-A motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
CRGRLA-M5-B	One-way flow control valve · Function fittings
SMBR-8-8/100-S6	Mounting kit · Retainer for proximity sensor
CRSG-M6	Rod clevis · Piston-rod attachments
CRSGS-M6	Rod eye · Piston-rod attachments
CRLBN-12/16	Clevis foot · Cylinder mountings
CRSMT-8M-PS-24V-K-5,0-OE-EX2	Proximity sensor · Proximity sensors
CRSMT-8M-PS-24V-K-0,3-M8D-EX2	Proximity sensor · Proximity sensors
NPQR-L-M5-Q4	Push-in fitting · Fittings
NPQR-DK-M5-Q4	Push-in fitting · Fittings
PTFEN-4X0,5-NT-100	Plastic tubing · Tubes
CRHBN-12/16X1	Foot mounting · Cylinder mountings
GASA-MIP-CTR-12M-10	AX Industrial App · Digital services
GASA-MIP-CTR-12M-100	AX Industrial App · Digital services
GASA-MIP-CTR-12M-1000	AX Industrial App · Digital services
CRCN-M5-PK-3	Barbed fitting · Stainless-steel fittings
CRCN-M5-PK-4	Barbed fitting · Stainless-steel fittings
CRCN-M5-PK-2	Barbed fitting · Stainless-steel fittings
CRQS-M5-4-I	Push-in fitting · Stainless-steel fittings
CRQS-M5-6-I	Push-in fitting · Stainless-steel fittings
CRFBN-12/16	Flange mounting · Cylinder mountings
CRQS-M5-4	Push-in fitting · Stainless-steel fittings
CRQS-M5-6	Push-in fitting · Stainless-steel fittings
CRQSL-M5-4	Push-in L-fitting · Stainless-steel fittings
CRQSL-M5-6	Push-in L-fitting · Stainless-steel fittings
CRHBN-12/16X2	Foot mounting · Cylinder mountings
CRQST-M5-4	Push-in T-fitting · Stainless-steel fittings
CRQST-M5-6	Push-in T-fitting · Stainless-steel fittings
CRSMBR-12	Mounting kit · Mounting kits for proximity sensors, other sensors
NPFC-D-2M5-M	Double nipple · Other connectors
NPFC-R-G18-M5-FM	Reducing nipple · Other connectors
NPFC-E1-2M5-FM	Extension · Other connectors
NPFC-R-M5-M3-MF	Reducing nipple · Other connectors
NPFC-DS-M5-M5-M	Double nipple · Other connectors
DARP-M6-F	Self-aligning rod coupler · Stainless-steel piston-rod attachments
