How can I get a price quote for FESTO CRQS-M5-4-I?

You can request a fast quote for FESTO CRQS-M5-4-I from Yılsa Engineering. Reference part number CEY-937FC7825FC0. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is FESTO CRQS-M5-4-I in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is FESTO CRQS-M5-4-I genuine and new?

Yes. This FESTO product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for FESTO CRQS-M5-4-I?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

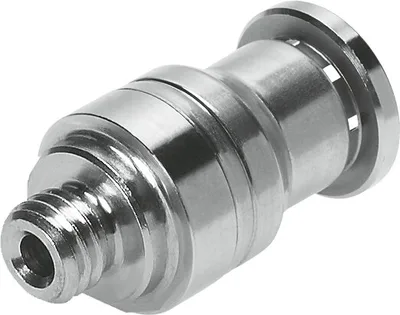

Photo may not represent actual item. Refer to name and product specs for all details.

FESTO CRQS-M5-4-I

Push-in fitting. Maximum corrosion resistance (corrosion resistance class CRC 4 to Festo standard 940 070) and chemical resistance. Food grade see www.festo.com/certificates/CRQS. Operating media: compressed air, vacuum, (water). Stainless steel. Straight shape, L-shape, T-shape, Y-shape, push-in bulkhead connector

FESTOMFR # CRQS-M5-4-ISKU # CEY-937FC7825FC0

SizeStandard

Nominal size2

Tubing insertion depth18

Type of seal on screwed plugSealing ring

Mounting positionAny

DesignStraight design

Have questions?Chat on WhatsApp

About This Product

FESTO CRQS-M5-4-I

Genuine, certified FESTO product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

SizeStandard

Nominal size2

Tubing insertion depth18

Type of seal on screwed plugSealing ring

Mounting positionAny

DesignStraight design

Size of pack1

DesignPush-pull principle

Operating pressure complete temperature range-0.095, 1

Operating pressure complete temperature range-0.95, 10

Operating pressure complete temperature range-13.775, 145

Temperature-dependent operating pressure-0.095, 1

Temperature-dependent operating pressure-0.95, 10

Temperature-dependent operating pressure-13.775, 145

Note on operating pressureWater: max. 0.6 MPa at max. 50°C

Operating mediumCompressed air to ISO 8573-1:2010 [7:-:-], Water (liquid, ice-free)

Note on operating and pilot mediumLubricated operation possible

Corrosion resistance class CRC4 - Very high corrosion stress

LABS (PWIS) conformityVDMA24364-B1/B2-L

Suitable for use with foodSee supplementary material information

Ambient temperature-15, 120

Nominal torque1.33

Tolerance for nominal tightening torque±20%

Product weight5

Suitable cablesPFAN

Type of mountingInternal hexagon A/F 2

Pneumatic connection, port 1Male thread M5

Pneumatic connection, port 2For tubing outside diameter of 4 mm

Colour of release ringSilver

Material screwed plugHigh-alloy stainless steel

Note on materialsRoHS compliant

Material housingHigh-alloy stainless steel

Material thread sealFluoro rubber, High-alloy stainless steel

Material release ringHigh-alloy stainless steel

Material tubing sealFluoro rubber

Material tubing clamp componentHigh-alloy stainless steel

Thrust ring materialHigh-alloy stainless steel

Accessories 40

Genuine accessories that can be used with the FESTO CRQS-M5-4-I motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
PFAN-4X0,75-NT	Plastic tubing · Tubes
PLN-4X0,75-NT	Plastic tubing · Tubing
PLN-4X0,75-SW	Plastic tubing · Tubing
PUN-H-4X0,75-NT	Plastic tubing · Tubing
PUN-H-4X0,75-BL	Plastic tubing · Tubing
PUN-H-4X0,75-SW	Plastic tubing · Tubing
PLN-4X0,75-BL	Plastic tubing · Tubing
PLN-4X0,75-SI	Plastic tubing · Tubing
PLN-4X0,75-RT	Plastic tubing · Tubing
PUN-H-4X0,75-SW-500	Plastic tubing · Tubing
PUN-H-4X0,75-BL-500	Plastic tubing · Tubing
PUN-H-4X0,75-NT-500	Plastic tubing · Tubing
PUN-H-4X0,75-SI-500	Plastic tubing · Tubing
PUN-H-4X0,75-SI	Plastic tubing · Tubing
PUN-H-4X0,75-RT	Plastic tubing · Tubing
PUN-H-4X0,75-GN	Plastic tubing · Tubing
PUN-H-4X0,75-GE	Plastic tubing · Tubing
PUN-H-4X0,75-TBL	Plastic tubing · Tubing
PUN-H-4X0,75-TBL-500	Plastic tubing · Tubing
PUN-H-4X0,75-TSW	Plastic tubing · Tubing
PUN-H-4X0,75-TSW-500	Plastic tubing · Tubing
PUN-H-4X0,75-TRT	Plastic tubing · Tubing
PUN-H-4X0,75-TRT-500	Plastic tubing · Tubing
PUN-H-4X0,75-TGN	Plastic tubing · Tubing
PUN-H-4X0,75-TGN-500	Plastic tubing · Tubing
PUN-H-4X0,75-TGE	Plastic tubing · Tubing
PUN-H-4X0,75-TGE-500	Plastic tubing · Tubing
PUN-H-F-4X0,75-NT	Plastic tubing · Tubing
PUN-H-F-4X0,75-RT	Plastic tubing · Tubing
PUN-H-F-4X0,75-BL	Plastic tubing · Tubing
PUN-H-F-4X0,75-TBL	Plastic tubing · Tubing
PUN-H-F-4X0,75-GN	Plastic tubing · Tubing
PUN-H-F-4X0,75-GE	Plastic tubing · Tubing
PUN-H-F-4X0,75-SW	Plastic tubing · Tubing
PUN-H-SF-4X0,85-SW	Plastic tubing · Tubing
PUN-H-SF-4X0,85-BL	Plastic tubing · Tubing
PUN-H-4X0,75-RT-25	Plastic tubing · Tubing
PUN-H-4X0,75-BL-25	Plastic tubing · Tubing
PUN-H-4X0,75-SW-25	Plastic tubing · Tubing
PUN-H-4X0,75-TBL-25	Plastic tubing · Tubing
