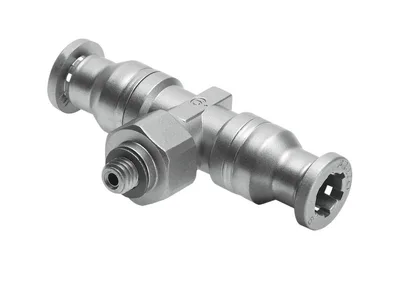

FESTO CRQST-M5-4

Push-in T-fitting. Maximum corrosion resistance (corrosion resistance class CRC 4 to Festo standard 940 070) and chemical resistance. Food grade see www.festo.com/certificates/CRQS. Operating media: compressed air, vacuum, (water). Stainless steel. Straight shape, L-shape, T-shape, Y-shape, push-in bulkhead connector

FESTOMFR # CRQST-M5-4SKU # CEY-937FC78242B0

SizeStandard

Nominal size2

Tubing insertion depth18

Type of seal on screwed plugSealing ring

Mounting positionAny

DesignT-shape

Have questions?Chat on WhatsApp

About This Product

FESTO CRQST-M5-4

Genuine, certified FESTO product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

SizeStandard

Nominal size2

Tubing insertion depth18

Type of seal on screwed plugSealing ring

Mounting positionAny

DesignT-shape

Size of pack1

DesignPush-pull principle

Operating pressure complete temperature range-0.095, 1

Operating pressure complete temperature range-0.95, 10

Operating pressure complete temperature range-13.775, 145

Note on operating pressureWater: max. 0.6 MPa at max. 50°C

Operating mediumCompressed air to ISO 8573-1:2010 [7:-:-], Water (liquid, ice-free)

Note on operating and pilot mediumLubricated operation possible

Corrosion resistance class CRC4 - Very high corrosion stress

LABS (PWIS) conformityVDMA24364-B1/B2-L

Suitable for use with foodSee supplementary material information

Ambient temperature-15, 120

Nominal torque1.33

Tolerance for nominal tightening torque±20%

Product weight17

Number of outputs2

Number of supply lines1

Suitable cablesPFAN

Type of mountingExternal hex SW10

Pneumatic connection, port 1Male thread M5

Pneumatic connection, port 2For tubing outside diameter of 4 mm

Colour of release ringSilver

Material screwed plugHigh-alloy stainless steel

Note on materialsRoHS compliant

Material housingHigh-alloy stainless steel

Material thread sealFluoro rubber, High-alloy stainless steel

Material release ringHigh-alloy stainless steel

Material tubing sealFluoro rubber

Material tubing clamp componentHigh-alloy stainless steel

Thrust ring materialHigh-alloy stainless steel
