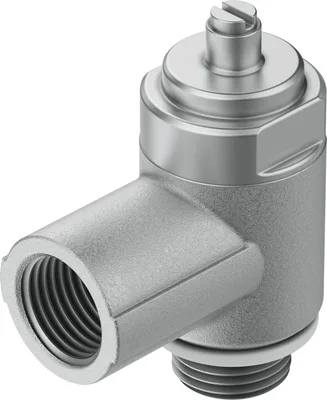

FESTO CRGRLA-M5-B

One-way flow control valve. Functional combination of one-way flow control valve and piloted check valve. Flow control valve, flow control at one end. Polymer, metal or stainless steel design. Standard, mini, in-line variants with different flow rates. Connections: thread at both ends, push-in connector at both ends, thread/push-in connector

FESTOMFR # CRGRLA-M5-BSKU # CEY-937FC7824F87

Valve functionOne-way flow control function

Pneumatic connection, port 1M5

Pneumatic connection, port 2M5

Type of actuationManual

Adjustment componentSlotted head screw

Type of mountingScrew-in

Have questions?Chat on WhatsApp

About This Product

FESTO CRGRLA-M5-B

Genuine, certified FESTO product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Valve functionOne-way flow control function

Pneumatic connection, port 1M5

Pneumatic connection, port 2M5

Type of actuationManual

Adjustment componentSlotted head screw

Type of mountingScrew-in

Standard nominal flow rate in flow control direction95

Standard nominal flow rate in blocked direction77, 95

Operating pressure0.02, 1

Operating pressure0.2, 10

Operating pressure2.9, 145

Ambient temperature-20, 80

Maritime classificationSee certificate

Explosion protectionThe information in the certificate must be observed!, Zone 1 (ATEX), Zone 2 (ATEX), Zone 21 (ATEX), Zone 22 (ATEX)

Mounting positionAny

Symbol00991452

Rotatability360°/no continuous swivelling permissible

Standard flow rate in flow control direction 0.6->0 MPa (6->0 bar, 87->0 psi)165

Standard flow rate in non-return direction 0.6->0 MPa (6->0 bar, 87->0 psi)140, 150

Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]

Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)

LABS (PWIS) conformityVDMA24364-B2-L

Suitability for the production of Li-ion batteriesSuitable for battery production with reduced Cu/Zn/Ni values (F1a)

Cleanroom suitability, measured according to ISO 14644-14Class 4 according to ISO 14644-1

Storage temperature-10, 40

Suitable for use with foodSee supplementary material information

Media temperature-10, 60

Nominal size2

Max. tightening torque1.5

Permissible actuation moment, regulating screw0.2

Product weight10.2

Note on materialsRoHS compliant

Material sealsFluoro rubber, PVC

Material hollow boltHigh-alloy steel

Material adjusting screwHigh-alloy stainless steel

Material swivel fittingHigh-alloy stainless steel

Accessories 8

Genuine accessories that can be used with the FESTO CRGRLA-M5-B motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
CRQS-M5-6-I	Push-in fitting · Fittings
CRQS-M5-6	Push-in fitting · Fittings
CRQSL-M5-6	Push-in L-fitting · Fittings
CRQS-M5-4-I	Push-in fitting · Stainless-steel fittings
CRQS-M5-4	Push-in fitting · Stainless-steel fittings
CRQSL-M5-4	Push-in L-fitting · Stainless-steel fittings
CRQST-M5-4	Push-in T-fitting · Stainless-steel fittings
CRQST-M5-6	Push-in T-fitting · Stainless-steel fittings
