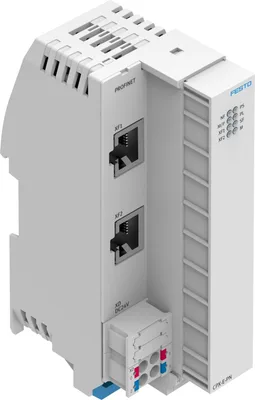

Festo CPX-E-PN

Bus module. Individual components for the automation system CPX-E

FestoMFR # CPX-E-PNSKU # YLSL16PYRGJ3T5

Dimensions (W x L x H)42.2 mm x 76.5 mm x 125.8 mm

Grid dimension18.9

Type of mountingvia DIN rail

Max. number of modules10

Product weight145

Mounting positionVertical, Horizontal

Have questions?Chat on WhatsApp

About This Product

Bus module. Individual components for the automation system CPX-E

Festo CPX-E-PN

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Dimensions (W x L x H)42.2 mm x 76.5 mm x 125.8 mm

Grid dimension18.9

Type of mountingvia DIN rail

Max. number of modules10

Product weight145

Mounting positionVertical, Horizontal

Ambient temperature-5, 50

Note on ambient temperature-5 - 60°C for vertical installation

Storage temperature-20, 70

Relative air humidity95%, Non-condensing

Degree of protectionIP20

Corrosion resistance class CRC0 - No corrosion stress

Vibration resistanceTransport application test with severity level 1 to FN 942017-4 and EN 60068-2-6

Shock resistanceShock test with severity level 1 to FN 942017-5 and EN 60068-2-27

Protection against direct and indirect contactPELV

LABS (PWIS) conformityVDMA24364 zone III

CE mark (see declaration of conformity)To EU EMC Directive

UKCA marking (see declaration of conformity)To UK RoHS instructions

KC markKC-EMV

ApprovalRCM, c UL us - Listed (Oil)

Certificate issuing authorityUL E239998

Note on materialsRoHS compliant

Material housingPA

Diagnostics via LEDForce mode, Network error, Network status port 1, Network status port 2, Power supply, electronics/sensors, Load power supply, System errors, Maintenance required

Diagnostics via busWire breakage, Short circuit, PROFIsafe addresses different, Parameterisation error, Upper limit value violated, Excessive temperature, Lower limit value not observed, Undervoltage

Fieldbus interfaceEthernet

Field bus, protocolPROFINET IRT, PROFINET RT

Fieldbus interface, functionBus connection incoming/outgoing

Field bus, connection type2x socket

Field bus, connection systemRJ45

Fieldbus interface, connection pattern00995789

Field bus, connection pattern8

Field bus interface, electrical isolationYes

Field bus interface, transmission rate100 Mbit/s

Max. address volume, inputs64

Fieldbus interface, max. address volume for inputs64

Note on inputs62 bytes with I/O diagnostic interface, 62 bytes with status bits, 64 bytes without diagnostics

Max. address volume, outputs64

Fieldbus interface, max. address volume for outputs64

Note on outputs62 bytes with I/O diagnostic interface, 64 bytes with status bits, 64 bytes without diagnostics

System parametersDiagnostic memory, Fail-safe response, Force mode, System start

Module parametersChannel alarms for undervoltage, Process value representation of analogue modules

Configuration supportGSDML file

Additional functionsLLDP, Manufacturing Resource Planning, MRPD, PROFINET FSU, PROFINET I&MO..3, 1..3 retentive memory possible, PROFINET shared device, S2 system redundancy, SNMP

Power supply, functionElectronic system and sensors

Power supply, connection typeTerminal strip

Power supply, note on connection type> 4 A and UL 2x terminal strip for power supply

power supply, connection systemSpring-loaded terminal

Power supply, connection pattern00995847

Power supply, number of pins/wires4

Nominal DC operating voltage, electronics/sensors24

Permissible voltage fluctuations for electronics/sensors±25%

Power supply, conductor diameter0.2, 1.5

Power supply, note on conductor diameter0.2 - 2.5 mm² for flexible conductors without wire ferrule

Max. power supply8

Intrinsic current consumption at nominal operating voltage for electronics/sensoTypically 75 mA

Power failure bridging20

Reverse polarity protection24 V sensor supply against 0 V sensor supply

Accessories 3

Genuine accessories that can be used with the Festo CPX-E-PN motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
NEAC-M-S-BD-R3SCPP	Dummy plug · Electrical accessories
NRH-35-2000	DIN mounting rail · Mounting accessories
NECC-M-S-R3G8PP-HX-PN	Plug · Electrical accessories
