How can I get a price quote for Festo CPX-E-CEC-C1?

You can request a fast quote for Festo CPX-E-CEC-C1 from Yılsa Engineering. Reference part number YLS92MJXBAF4NFR. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Festo CPX-E-CEC-C1 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Festo CPX-E-CEC-C1 genuine and new?

Yes. This Festo product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Festo CPX-E-CEC-C1?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

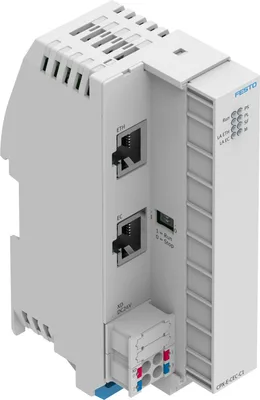

Festo CPX-E-CEC-C1

Controller. Individual components for the automation system CPX-E

FestoMFR # CPX-E-CEC-C1SKU # YLS92MJXBAF4NFR

Dimensions (W x L x H)42.2 mm x 76.5 mm x 125.8 mm

Grid dimension18.9

Type of mountingvia DIN rail

Max. number of modules10

Product weight145

Mounting positionVertical, Horizontal

Have questions?Chat on WhatsApp

About This Product

Controller. Individual components for the automation system CPX-E

Festo CPX-E-CEC-C1

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Dimensions (W x L x H)42.2 mm x 76.5 mm x 125.8 mm

Grid dimension18.9

Type of mountingvia DIN rail

Max. number of modules10

Product weight145

Mounting positionVertical, Horizontal

Ambient temperature-5, 50

Note on ambient temperature-5 - 60°C for vertical installation

Storage temperature-20, 70

Relative air humidity95%, Non-condensing

Degree of protectionIP20

Corrosion resistance class CRC0 - No corrosion stress

Vibration resistanceTransport application test with severity level 1 to FN 942017-4 and EN 60068-2-6

Shock resistanceShock test with severity level 1 to FN 942017-5 and EN 60068-2-27

Protection against direct and indirect contactPELV

LABS (PWIS) conformityVDMA24364 zone III

CE mark (see declaration of conformity)To EU EMC Directive, In accordance with EU RoHS Directive

UKCA marking (see declaration of conformity)To UK RoHS instructions

KC markKC-EMV

ApprovalRCM, c UL us - Listed (Oil)

Certificate issuing authorityUL E239998

Note on materialsRoHS compliant

Material housingPA

Diagnostics via LEDForce mode, Module status, Network status, engineering port 1, Network status EtherCAT®, Run, Power supply, electronics/sensors, Load power supply, System errors

Operator controlsDIP switch for RUN/STOP

IP address settingDHCP, Via CODESYS

Fieldbus interfaceEthernet

Field bus, protocolEtherCAT®, EtherCAT CoE, EtherCAT EoE, EtherCAT FoE, EtherCAT master

Fieldbus interface, functionBus connection continuing

Field bus, connection typeSocket

Field bus, connection systemRJ45

Fieldbus interface, connection pattern00995789

Field bus, connection pattern8

Field bus interface, electrical isolationYes

Field bus interface, transmission rate100 Mbit/s

Ethernet interface, connection typeSocket

Ethernet interface, protocolEasyIP, Modbus TCP, OPC-UA, TCP/IP

Ethernet interface, functionDiagnostics

Ethernet interface, connection systemRJ45

Ethernet interface, connection pattern00995789

Ethernet interface, number of pins/wires8

Ethernet interface, transmission rate10 Mbit/s, 100 Mbit/s

Max. address volume, inputs64

Max. address volume, outputs64

System parametersDiagnostic memory, Fail-safe response, System start

Module parametersChannel alarms for undervoltage, Process value representation of analogue modules

Configuration supportCODESYS V3

Additional functionsCODESYS V3

CPU dataDual core 650 MHz

Power supply, functionElectronic system and sensors

Power supply, connection typeTerminal strip

Power supply, note on connection type> 4 A and UL 2x terminal strip for power supply

power supply, connection systemSpring-loaded terminal

Power supply, connection pattern00995847

Power supply, number of pins/wires4

Nominal DC operating voltage, electronics/sensors24

Permissible voltage fluctuations for electronics/sensors±25%

Power supply, conductor diameter0.2, 1.5

Power supply, note on conductor diameter0.2 - 2.5 mm² for flexible conductors without wire ferrule

Max. power supply8

Intrinsic current consumption at nominal operating voltage for electronics/sensoTypically 65 mA

Power failure bridging20

Reverse polarity protection24 V sensor supply against 0 V sensor supply

Programming softwareCODESYS provided by Festo

Program memory12 MB user program

Processing timeApprox. 200 µs/1 k instruction

Function modulesAnd others, Read CPX-E module diagnostics, CPX-E diagnostic status, Copy CPX-E diagnostic trace

Buffering time real-time clock3

Flag120 kB remanent data, CODESYS variable concept

Accessories 3

Genuine accessories that can be used with the Festo CPX-E-CEC-C1 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
NEAC-M-S-BD-R3SCPP	Dummy plug · Electrical accessories
NRH-35-2000	DIN mounting rail · Mounting accessories
NECC-M-S-R3G8PP-HX-PN	Plug · Electrical accessories
