How can I get a price quote for Festo CPX-AP-I-PB-M12?

You can request a fast quote for Festo CPX-AP-I-PB-M12 from Yılsa Engineering. Reference part number YLSAH4SEMAW9E5H. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Festo CPX-AP-I-PB-M12 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Festo CPX-AP-I-PB-M12 genuine and new?

Yes. This Festo product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Festo CPX-AP-I-PB-M12?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

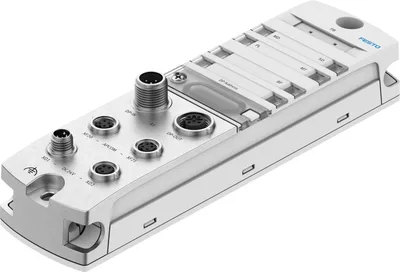

Festo CPX-AP-I-PB-M12

PROFIBUS interface. Decentralised and lightweight I/O system in IP65/IP67. Highly flexible remote IO system with maximum performance. Can be expanded and easily combined with CPX-AP-I and CPX-AP-A to form an integrated system. Seamless connectivity along with advanced diagnostics option increase the machine availability and productivity. Easy to integrate into the control system of your choice: PROFINET, EtherCAT®, EtherNet/IP, ModbusTCP, CC-LINK®. Module for IO-Link® available. Powerful remote I/O system that flexibly links 80 modules at a data rate of 200 Mbaud in real-time. Cable lengths of up to 50 m between every module enable vast system dimensions. Fits perfectly into our comprehensive product portfolio of electromechanical actuators, motors, servo drives and control systems

FestoMFR # CPX-AP-I-PB-M12SKU # YLSAH4SEMAW9E5H

Dimensions (W x L x H)45 mm x 170 mm x 35 mm

Max. number of modules56

Product weight186

Ambient temperature-20, 60

Storage temperature-40, 70

Relative air humidity5 - 95%, Non-condensing

Have questions?Chat on WhatsApp

About This Product

Festo CPX-AP-I-PB-M12

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Dimensions (W x L x H)45 mm x 170 mm x 35 mm

Type of mountingOn DIN rail via accessories, With through-hole

Max. number of modules56

Product weight186

Ambient temperature-20, 60

Storage temperature-40, 70

Relative air humidity5 - 95%, Non-condensing

Degree of protectionIP65, IP67

Note on degree of protectionUnused connections sealed

Corrosion resistance class CRC1 - Low corrosion stress

Max. cable length50 m system communication

LABS (PWIS) conformityVDMA24364-B2-L

Cleanroom suitability, measured according to ISO 14644-14Element installed statically, no meaningful evaluation possible according to ISO 14644-1

CE mark (see declaration of conformity)To EU EMC Directive

UKCA marking (see declaration of conformity)To UK instructions for EMC

KC markKC-EMV

ApprovalRCM, c UL us - Listed (Oil)

Certificate issuing authorityUL E239998

Note on materialsRoHS compliant

Material housingMakrolon®, Nickel-plated die-cast zinc

Material o-ringFluoro rubber

Diagnostics via LEDDiagnostics per module, Power supply, electronics/sensors, Load power supply, System diagnostics, Maintenance required

Diagnostics via busAPDD invalid, Switch-off load supply, Communication with AP module interrupted, Electronics/sensors overvoltage, Load overvoltage, Electronics/sensors undervoltage, Load undervoltage

Note on fieldbus interfaceTerminating resistor at socket possible

Fieldbus interfacePROFIBUS

Field bus, protocolPROFIBUS DP-V1

Fieldbus interface, functionIncoming bus connection

Field bus, connection typePlug

Field bus, connection systemM12x1, B-encoded to EN 61076-2-101

Field bus, connection pattern5

Field bus interface, electrical isolationYes

Field bus interface, transmission rate1.5 Mbps, 12 Mbit/s, 187.5 kbps, 19.2 kbps, 3 Mbit/s, 500 kbps, 6 Mbit/s, 9.6 kbps, 93.75 kbps

Fieldbus interface 2, typePROFIBUS

Fieldbus interface 2, protocolPROFIBUS DP-V1

Fieldbus interface 2, functionBus connection continuing

Fieldbus interface 2, connection typeSocket

Fieldbus interface 2, connection technologyM12x1, B-encoded to EN 61076-2-101

Fieldbus interface 2, number of pins/wires5

Fieldbus interface 2, galvanic isolationYes

Fieldbus interface 2, transmission rate1.5 Mbps, 12 Mbit/s, 187.5 kbps, 19.2 kbps, 3 Mbit/s, 500 kbps, 6 Mbit/s, 9.6 kbps, 93.75 kbps

Max. address volume, inputs244

Max. address volume, outputs244

Configuration supportGSD file

Communication interface, functionSystem communication XF20 OUT / XF21 OUT

Communication interface, connection type2x socket

Communication interface, connection technologyM8x1, D-coded according to EN 61076-2-114

Communication interface, number of pins/cores4

Communication interface, protocolAP

Communication interface, screenedYes

Power supply, functionIncoming electronics/sensors and load

Power supply, connection typePlug

power supply, connection systemM8x1, A-coded to EN 61076-2-104

Power supply, number of pins/wires4

Power transmission, functionOutgoing electronics/sensors and load

Power transmission, connection typeSocket

Power transmission, connection technologyM8x1, A-coded to EN 61076-2-104

Power transmission, number of pins/wires4

Note regarding operating voltageSELV/PELV fixed power supplies required, Note the voltage drop

Nominal operating voltage DC of load24

Permissible voltage fluctuation of load±25%

Nominal DC operating voltage, electronics/sensors24

Permissible voltage fluctuations for electronics/sensors±25%

Max. power supply2 x 4 A (external fuse required)

Intrinsic current consumption at nominal operating voltage for electronics/sensoTypically 80 mA

Intrinsic current consumption at nominal operating voltage loadTypically 5 mA

Power failure bridging10

Reverse polarity protectionYes

Accessories 49

Genuine accessories that can be used with the Festo CPX-AP-I-PB-M12 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
ASLR-L-X4-612-P240	Inscription label · General accessories
CAFM-X4-H	DIN rail attachment · Mounting accessories
ISK-M12	Cover cap · General accessories
ISK-M8	Cover cap · General accessories
NECU-M-B12G5-C2-PB	Plug socket · Electrical accessories
NECU-M-S-B12G5-C2-PB	Plug · Electrical accessories
NEBL-M8W4-E-2-N-M8W4	Connecting cable · Connecting cables
NEBL-M8G4-E-5-N-M8G4	Connecting cable · Connecting cables
NEBL-M8G4-E-0.5-N-M8G4	Connecting cable · Connecting cables
NEBL-M8W4-E-5-N-M8W4	Connecting cable · Connecting cables
NEBL-M8W4-E-0.5-N-M8W4	Connecting cable · Connecting cables
NEBL-M8G4-E-1-N-M8G4	Connecting cable · Connecting cables
NEBL-M8W4-E-1-N-M8W4	Connecting cable · Connecting cables
NEBL-M8G4-E-2-N-M8G4	Connecting cable · Connecting cables
NEBC-D8G4-ES-2-N-S-D8G4-ET	Connecting cable · Connecting cables
NEBC-D8W4-ES-2-N-S-D8W4-ET	Connecting cable · Connecting cables
NEBC-D8G4-ES-5-N-S-D8G4-ET	Connecting cable · Connecting cables
NEBC-D8G4-ES-0.5-N-S-D8G4-ET	Connecting cable · Connecting cables
NEBC-D8W4-ES-0.5-N-S-D8W4-ET	Connecting cable · Connecting cables
NEBC-D8G4-ES-1-N-S-D8G4-E	Connecting cable · Connecting cables
NEBC-D8W4-ES-1-N-S-D8W4-ET	Connecting cable · Connecting cables
NEBL-M8G4-E-5-N-LE4	Connecting cable · Connecting cables
NEBC-D8W4-ES-5-N-S-D8W4-ET	Connecting cable · Connecting cables
NEBC-D8G4-ES-10-N-S-D8G4-ET	Connecting cable · Connecting cables
NEBC-D8W4-ES-10-N-S-D8W4-ET	Connecting cable · Connecting cables
NEBC-D8G4-ES-15-N-S-D8G4-ET	Connecting cable · Connecting cables
NEBC-D8W4-ES-15-N-S-D8W4-ET	Connecting cable · Connecting cables
NEBC-D8G4-ES-0.3-N-S-D8G4-ET	Connecting cable · Connecting cables
NEBL-M8G4-E-0.3-N-M8G4	Connecting cable · Connecting cables
NEBL-M8W4-E-0.3-N-M8W4	Connecting cable · Connecting cables
NEBL-M8G4-E-7.5-N-M8G4	Connecting cable · Connecting cables
NEBL-M8W4-E-7.5-N-M8W4	Connecting cable · Connecting cables
NEBL-M8G4-E-7.5-N-LE4	Connecting cable · Connecting cables
NEBL-M8W4-E-7.5-N-LE4	Connecting cable · Connecting cables
NEBL-M8G4-E-10-N-M8G4	Connecting cable · Connecting cables
NEBL-M8W4-E-10-N-M8W4	Connecting cable · Connecting cables
NEBL-M8G4-E-10-N-LE4	Connecting cable · Connecting cables
NEBL-M8W4-E-10-N-LE4	Connecting cable · Connecting cables
NEBL-M8G4-E-15-N-M8G4	Connecting cable · Connecting cables
NEBL-M8W4-E-15-N-M8W4	Connecting cable · Connecting cables
NEBL-M8G4-E-15-N-LE4	Connecting cable · Connecting cables
NEBL-M8W4-E-15-N-LE4	Connecting cable · Connecting cables
NEBC-D8G4-ES-7.5-N-S-D8G4-ET	Connecting cable · Connecting cables
NEBC-D8W4-ES-7.5-N-S-D8W4-ET	Connecting cable · Connecting cables
NEBC-D8G4-ES-20-N-S-D8G4-ET	Connecting cable · Connecting cables
NEBC-D8G4-ES-25-N-S-D8G4-ET	Connecting cable · Connecting cables
NEBC-D8G4-ES-30-N-S-D8G4-ET	Connecting cable · Connecting cables
NEBC-D8G4-ES-40-N-S-D8G4-ET	Connecting cable · Connecting cables
NEBC-D8G4-ES-50-N-S-D8G4-ET	Connecting cable · Connecting cables
