How can I get a price quote for Festo NEBL-M8G4-E-15-N-LE4?

You can request a fast quote for Festo NEBL-M8G4-E-15-N-LE4 from Yılsa Engineering. Reference part number YLSOSGUD2IP3CG. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Festo NEBL-M8G4-E-15-N-LE4 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Festo NEBL-M8G4-E-15-N-LE4 genuine and new?

Yes. This Festo product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Festo NEBL-M8G4-E-15-N-LE4?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

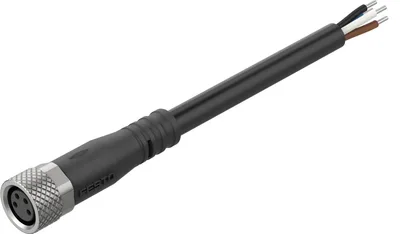

Festo NEBL-M8G4-E-15-N-LE4

Connecting cable. For power supply. Suitable for use with energy chains

FestoMFR # NEBL-M8G4-E-15-N-LE4SKU # YLSOSGUD2IP3CG

Conforms to standardEN 61076-2-104

Approvalc UL us - Listed (Oil)

Certificate issuing authorityUL E253748

Cable designationWithout inscription label holder

Product weight528

Electrical connection 1, functionField device side

Have questions?Chat on WhatsApp

About This Product

Connecting cable. For power supply. Suitable for use with energy chains

Festo NEBL-M8G4-E-15-N-LE4

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Conforms to standardEN 61076-2-104

Approvalc UL us - Listed (Oil)

Explosion protectionThe information in the certificate must be observed!, Zone 2 (ATEX), Zone 22 (ATEX)

Certificate issuing authorityUL E253748

Cable designationWithout inscription label holder

Product weight528

Electrical connection 1, functionField device side

Electrical connection 1, designRound

Electrical connection 1, connection typeSocket

Electrical connection 1, cable outletStraight

Electrical connection 1, connector systemM8x1, A-coded, to EN 61076-2-104

Electrical connection 1, number of connections/cores4

Electrical connection 1, used connections/cores4

Electrical connection 1, type of mountingScrew-type lock with hexagon A/F 9 mm and longitudinal knurl

Electrical connection 1, connection pattern00991872

Electrical connection 2, functionControl side

Electrical connection 2, connection typeCable

Electrical connection 2, connector systemOpen end

Electrical connection 2, number of connections/cores4

Electrical connection 2, used connections/cores4

Operational voltage range DC0, 30

Nominal operating voltage DC24

Operational voltage range AC0, 30

Nominal operating voltage AC24

Current rating at 40° C5.2

Immunity to surge0.8

Protective conductor connectionNot provided

ShieldingNo

Cable length15

Cable characteristicSuitable for energy chains

Test conditions cableTest conditions on request

Bending radius, fixed cable15

Bending radius, moving cable50

Cable diameter4.8

Cable diameter tolerance±0.15 mm

Cable structure4 x 0.5 mm²

Nominal cross section conductor0.5

Wire endsStripped, Cut off bluntly

Degree of protectionIP65, IP67, IP69K

Note on degree of protectionIn mounted state

Special characteristicsOil-resistant

Ambient temperature-40, 90

Ambient temperature with moving cable-20, 90

Storage temperature-40, 90

CE mark (see declaration of conformity)In accordance with EU RoHS Directive

UKCA marking (see declaration of conformity)To UK RoHS instructions

LABS (PWIS) conformityVDMA24364-B2-L

Note on materialsRoHS compliant, Free of halogen

Pollution degree3

Corrosion resistance class CRC2 - Moderate corrosion stress

Material cable sheathTPE-U(PUR)

Cable sheath colourBlack

Material housingTPE-U(PUR)

Housing colourBlack

Material screw-type lockBrass, nickel-plated

Material sealsFluoro rubber

Material electrical contactGold-plated copper alloy

Material insulating sheathPP
