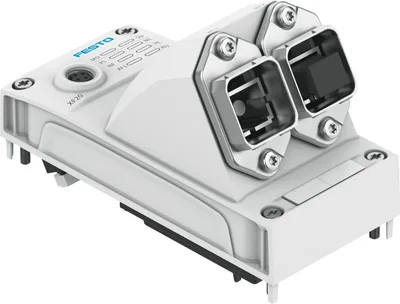

Festo CPX-AP-A-PN-FO

PROFINET interface

FestoMFR # CPX-AP-A-PN-FOSKU # YLSGE7ZYLJ21K

Dimensions (W x L x H)50.1 mm x 107.3 mm x 94.2 mm

Grid dimension50.1

Type of mountingScrew-clamped

Max. number of modules80

Product weight182

Mounting positionAny

Have questions?Chat on WhatsApp

About This Product

Festo CPX-AP-A-PN-FO (PROFINET interface) is supplied genuine and fast by Yılsa Engineering. Get an instant quote for Festo CPX-AP-A-PN-FO — price, stock availability and technical specifications.

Festo CPX-AP-A-PN-FO

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Dimensions (W x L x H)50.1 mm x 107.3 mm x 94.2 mm

Grid dimension50.1

Type of mountingScrew-clamped

Max. number of modules80

Product weight182

Mounting positionAny

Ambient temperature-20, 50

Note on ambient temperatureObserve ambient temperature derating according to IEC 61131-2:2017

Storage temperature-20, 70

Relative air humidity5 - 95%, Non-condensing

Nominal altitude of use<= 2000 m ASL (> 79.5 kPa)

Max. installation height3500

Note on max. installation heightObserve ambient temperature derating according to IEC 61131-2:2017

Corrosion resistance class CRC1 - Low corrosion stress

Vibration resistanceTransport application test with severity level 2 to FN 942017-4 and EN 60068-2-6

Note on vibration resistanceSG1 on DIN rail, SG2 on direct mounting, Transport application test with severity class 1 to FN 942017-4 and EN 60068-2-6

Shock resistanceShock test with severity level 2 to FN 942017-5 and EN 60068-2-27

Note on shock resistance30 g/11 ms to EN 60068-2-27, SG1 on DIN rail, SG2 on direct mounting, Shock test with severity level 1 to FN 942017-5 and EN 60068-2-27

Protection classIII

Pollution degree2

Overvoltage categoryII

Max. cable length50 m PROFINET

LABS (PWIS) conformityVDMA24364-B2-L

Fire test materialUL94 V-0 (housing)

Note on materialsRoHS compliant, Free of halogen, Free of phosphoric acid ester

Material coverReinforced PBT

Material flangeNickel-plated die-cast zinc

Material screwsNickel-plated steel

Material threaded sleeveHigh-alloy stainless steel

Material sealsNBR

Material o-ringFluoro rubber

Diagnostics via LEDDiagnostics per module, PROFINET communication, Power supply, electronics/sensors, Load power supply, System diagnostics, Maintenance required

Diagnostics via busAPDD invalid, Switch-off load supply, Communication error, Electronics/sensors overvoltage, Load overvoltage, Electronics/sensors undervoltage, Load undervoltage

Fieldbus interfaceEthernet

Field bus, protocolLLDP, MRP, MRPD (ring redundancy), PROFINET FSU, PROFINET I&M0 .. 3, PROFINET IRT, PROFINET RT, PROFINET shared device, S2 system redundancy, SNMP

Fieldbus interface, functionBus connection incoming/outgoing

Field bus, connection type2x socket

Field bus, connection systemSCRJ according to IEC 61754-24-21

Fieldbus interface, connection pattern00995771

Field bus, connection pattern2

Field bus interface, electrical isolationYes

Field bus interface, transmission rate100 Mbit/s

Fieldbus interface, note on transmission rate100 Mbit, fast switching Ethernet

Max. address volume, inputs1024

Max. address volume, outputs1024

Module parametersConfiguration of voltage monitoring load supply PL

Internal cycle time< 1 ms

Configuration supportGSDML file

Communication interface, functionSystem communication XF20 OUT

Communication interface, connection typeSocket

Communication interface, connection technologyM8x1, D-coded according to EN 61076-2-114

Communication interface, number of pins/cores4

Communication interface, plug pattern00995937

Communication interface, protocolAP

Communication interface, screenedYes

Note regarding operating voltageSELV/PELV fixed power supplies required, Note the voltage drop

Note on nominal operating voltage DCProtected Extra-Low-Voltage to IEC 60204-1

Nominal operating voltage DC of load24

Permissible voltage fluctuation of load±25%

Nominal DC operating voltage, electronics/sensors24

Permissible voltage fluctuations for electronics/sensors±25%

Intrinsic current consumption at nominal operating voltage for electronics/sensoTypically 115 mA

Intrinsic current consumption at nominal operating voltage loadTypically 4 mA

Power failure bridging10

Potential separation between the supply voltages electronics/sensor technology aYes

Reverse polarity protectionYes
