How can I get a price quote for Festo CPV18-VI?

You can request a fast quote for Festo CPV18-VI from Yılsa Engineering. Reference part number YLS4A0D0IMLZZHM. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Festo CPV18-VI in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Festo CPV18-VI genuine and new?

Yes. This Festo product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Festo CPV18-VI?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

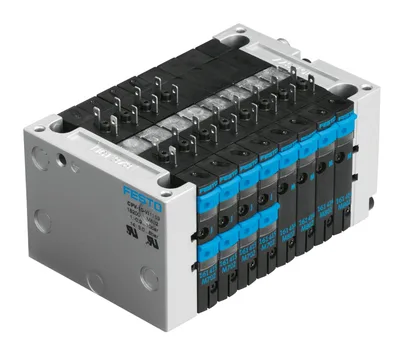

Festo CPV18-VI

Valve terminal. Maximum performance in the smallest of spaces. Three sizes. Wide range of connection and mounting options. Multi-pin or fieldbus control. IO-Link® capable

FestoMFR # CPV18-VISKU # YLS4A0D0IMLZZHM

Electrical I/O systemYes

Terminal type10

Media temperature-5, 50

Ambient temperature-5, 50

Storage temperature-20, 40

Degree of protectionIP65

Have questions?Chat on WhatsApp

About This Product

Valve terminal. Maximum performance in the smallest of spaces. Three sizes. Wide range of connection and mounting options. Multi-pin or fieldbus control. IO-Link® capable

Festo CPV18-VI

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Electrical controlAS-i, CPI installation system, Individual connection, Fieldbus, Multi-pin

Electrical I/O systemYes

Terminal type10

Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]

Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)

Media temperature-5, 50

Ambient temperature-5, 50

Storage temperature-20, 40

Degree of protectionIP65

Corrosion resistance class CRC1 - Low corrosion stress, 2 - Moderate corrosion stress

Operating pressure-0.09, 1

Operating pressure-0.9, 10

Note on operating pressure0 - 0.8 MPa with ext. pilot air, 0 - 8 bar with external pilot air

Pilot pressure0.3, 0.8

Pilot pressure3, 8

LABS (PWIS) conformityVDMA24364-B1/B2-L

CE mark (see declaration of conformity)To EU EMC Directive, To EU Explosion Protection Directive (ATEX), In accordance with EU RoHS Directive

UKCA marking (see declaration of conformity)To UK RoHS instructions

KC markKC-EMV

ApprovalRCM, c UL us - Recognised (Oil)

Explosion protectionClass I, Div. 2 (US), Zone 2 (ATEX), Zone 2 (UKEX)

ATEX category gasII 3G

Explosion protection certification outside the EUEPL Gc (GB), NEC 500 Class I, Div. 2

Explosion ignition protection type for gasEx ec IIC T4 Gc X

Explosion ambient temperature-5°C <= Ta <= +50°C

Note on materialsRoHS compliant

Valve terminal structureFixed grid

Max. number of valve positions8

Max. number of valve functions16

Max. number of pressure zones2

Type of actuationElectrical

Valve functionVacuum generator, Vacuum generator + 2/2-way, closed, monostable

DesignPiston gate valve

Sealing principleSoft

Valve size18

Pilot air supplyExternal, Internal

Max. standard nominal flow rate1600 l/min at 18 mm

Width18 mm

Suitability for vacuumYes

pneumatic working portG1/4, QS-8, QS-10

Pneumatic connection, port 1Common line

Pneumatic connection, port 2G1/4

Pneumatic connection, port 3Common line

Pneumatic connection, port 4G1/4

Pilot air port 12/14Common line

Pilot exhaust port 82/84Common line

Signal status displayLED

Nominal operating voltage DC24

Accessories 61

Genuine accessories that can be used with the Festo CPV18-VI motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
KMP4-25P-10-PUR	Connecting cable · Electrical accessories
B-1/4	Blanking plug · Fittings
KMP6-09P-8-10	Connecting cable · Electrical accessories
NECU-M-B12G5-C2-PB	Plug socket · Electrical accessories
IBS-6X10	Inscription label · General accessories
KMP6-09P-8-5	Connecting cable · Electrical accessories
KMP4-25P-10-PVC	Connecting cable · Electrical accessories
CPV18-HV	Locking clip · General accessories
KMP6-25P-20-10	Connecting cable · Electrical accessories
NECU-M-S-B12G5-C2-PB	Plug · Electrical accessories
U-1/4-B	Silencer · Silencer
U-1/2-B	Silencer · Silencer
B-1/2	Blanking plug · Fittings
KMP4-25P-5-PVC	Connecting cable · Electrical accessories
FBA-2-M12-5POL	Bus connection · Electrical accessories
B-3/8	Blanking plug · Fittings
QS-3/8-12-I	Push-in fitting · Fittings
KMP6-25P-20-5	Connecting cable · Electrical accessories
QS-1/4-10-I	Push-in fitting · Fittings
KMP6-09P-8-2,5	Connecting cable · Electrical accessories
KMP6-25P-20-2,5	Connecting cable · Electrical accessories
KMP4-25P-5-PUR	Connecting cable · Electrical accessories
NECB-M12G4-C2	Socket · Electrical accessories
NECB-M12W4-C2	Socket · Electrical accessories
NRH-35-2000	DIN mounting rail · Mounting accessories
NECB-M12W5-C2	Socket · Electrical accessories
KMP3-9P-08-10	Connecting cable · Electrical accessories
KMP3-25P-16-5	Connecting cable · Electrical accessories
KMP3-25P-16-10	Connecting cable · Electrical accessories
KMP3-9P-08-	Connecting cable · Electrical accessories
KMP3-9P-08-5	Connecting cable · Electrical accessories
KMP3-25P-16-	Connecting cable · Electrical accessories
SD-SUB-D-BU9	Plug socket · Electrical accessories
SD-SUB-D-BU25	Plug socket · Electrical accessories
ASI-SD-FK	Cable socket · Electrical accessories
ASI-KVT-FK	Cable distributor · Electrical accessories
ASI-KVT-FK-S	Cable distributor · Electrical accessories
P.BE-CPV-DE	Description · General accessories
P.BE-CPV-FR	Description · General accessories
P.BE-CPV-IT	Description · General accessories
P.BE-CPV-EN	Description · General accessories
P.BE-CPV-ES	Description · General accessories
CP-TS-HS-35	Mounting · Mounting accessories
KMEB-2-24-2,5-LED	Plug socket with cable · Electrical accessories
KMEB-2-24-5-LED	Plug socket with cable · Electrical accessories
KMEB-2-24-M12-0,5-LED	Plug socket with cable · Electrical accessories
ASI-SD-FK180	Cable socket · Electrical accessories
FBA-1-SL-5POL	Bus connection · Electrical accessories
FBSD-KL-2X5POL	Bus connection · Electrical accessories
FBS-SUB-9-GS-DP-B	Plug · Electrical accessories
FBS-SUB-9-GS-IB-B	Plug · Electrical accessories
FBS-SUB-9-BU-IB-B	Plug · Electrical accessories
FBS-SUB-9-BU-2X5POL-B	Plug · Electrical accessories
FBS-SUB-9-GS-2X4POL-B	Plug · Electrical accessories
FBA-2-M12-5POL-RK	Bus connection · Electrical accessories
FBS-SUB-9-WS-PB-K	Plug · Electrical accessories
FBS-SUB-9-WS-CO-K	Plug · Electrical accessories
FBS-SUB-9-GS-1X9POL-B	Plug · Electrical accessories
P.BE-CPV-DI-IP-DE	Description · General accessories
P.BE-CPV-DI-IP-EN	Description · General accessories
NECB-M12G5-C2	Socket · Electrical accessories
