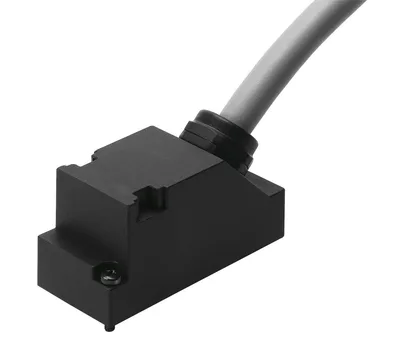

Photo may not represent actual item. Refer to name and product specs for all details.

Festo KMP4-25P-5-PUR

Connecting cable. Plug socket with cable for multi-pin plug connection. Pre-assembled. Mounting via union nut, with 2 screws

FestoMFR # KMP4-25P-5-PURSKU # CEY-937FC7821D15

Based on standardDIN 41652

Cable designationWith accessories

Frequency of connection50

Product weight702

Electrical connection 1, functionField device side

Electrical connection 1, designSquare

Have questions?Chat on WhatsApp

About This Product

Connecting cable. Plug socket with cable for multi-pin plug connection. Pre-assembled. Mounting via union nut, with 2 screws

Festo KMP4-25P-5-PUR

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Based on standardDIN 41652

Cable designationWith accessories

Frequency of connection50

Product weight702

Electrical connection 1, functionField device side

Electrical connection 1, designSquare

Electrical connection 1, connection typeSocket

Electrical connection 1, cable outletAngled

Electrical connection 1, connector systemSub-D

Electrical connection 1, number of connections/cores25

Electrical connection 1, used connections/cores25

Electrical connection 1, type of mounting2x screw M3

Electrical connection 1, connection pattern00995642

Electrical connection 2, functionControl side

Electrical connection 2, connection typeCable

Electrical connection 2, connector systemOpen end

Electrical connection 2, number of connections/cores25

Electrical connection 2, used connections/cores25

Operational voltage range DC0, 30

Nominal operating voltage DC24

Current rating at 40° C3

Immunity to surge1

Cable length5

Cable characteristicSuitable for energy chains

Test conditions cableTest conditions on request

Bending radius, fixed cable31

Bending radius, moving cable51

Cable diameter9.8

Cable diameter tolerance±0.4 mm

Cable structure25 x 0.25 mm²

Nominal cross section conductor0.25

Wire endsCut off bluntly

Degree of protectionIP65

Note on degree of protectionIn mounted state

Ambient temperature-40, 70

Ambient temperature with moving cable-40, 70

Storage temperature-25, 75

CE mark (see declaration of conformity)In accordance with EU RoHS Directive

UKCA marking (see declaration of conformity)To UK RoHS instructions

LABS (PWIS) conformityVDMA24364-B2-L

Note on materialsRoHS compliant

Pollution degree3

Material cable sheathTPE-U(PUR)

Cable sheath colourGrey

Material housingPA

Housing colourBlack

Material sealsNBR

Material electrical contactGold-plated copper alloy
