How can I get a price quote for Festo KMP6-09P-8-10?

You can request a fast quote for Festo KMP6-09P-8-10 from Yılsa Engineering. Reference part number YLSWAKDU2TFH0SW. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Festo KMP6-09P-8-10 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Festo KMP6-09P-8-10 genuine and new?

Yes. This Festo product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Festo KMP6-09P-8-10?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

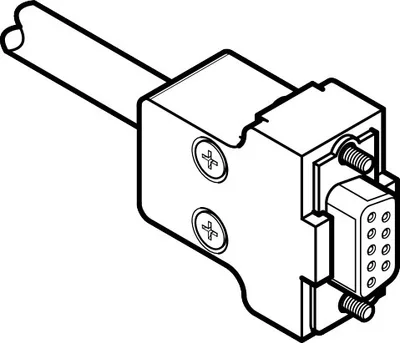

Festo KMP6-09P-8-10

Connecting cable. Plug socket with cable for multi-pin plug connection. Pre-assembled. Mounting via union nut, with 2 screws

FestoMFR # KMP6-09P-8-10SKU # YLSWAKDU2TFH0SW

Conforms to standardDIN 41652

Cable designationWithout inscription label holder

Frequency of connection50

Product weight864

Electrical connection 1, functionField device side

Electrical connection 1, designSquare

Have questions?Chat on WhatsApp

About This Product

Connecting cable. Plug socket with cable for multi-pin plug connection. Pre-assembled. Mounting via union nut, with 2 screws

Festo KMP6-09P-8-10

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Conforms to standardDIN 41652

Cable designationWithout inscription label holder

Frequency of connection50

Product weight864

Electrical connection 1, functionField device side

Electrical connection 1, designSquare

Electrical connection 1, connection typeSocket

Electrical connection 1, cable outletStraight

Electrical connection 1, connector systemSub-D

Electrical connection 1, number of connections/cores9

Electrical connection 1, used connections/cores9

Electrical connection 1, type of mounting2x screw 4-40 UNC

Electrical connection 1, connection pattern00995638

Electrical connection 2, functionControl side

Electrical connection 2, connection typeCable

Electrical connection 2, connector systemOpen end

Electrical connection 2, number of connections/cores9

Electrical connection 2, used connections/cores9

Operational voltage range DC0, 30

Nominal operating voltage DC24

Current rating at 40° C2.8

Immunity to surge1

Cable length10

Cable characteristicStandard

Test conditions cableTest conditions on request

Bending radius, fixed cable76

Bending radius, moving cable114

Cable diameter7.6

Cable diameter tolerance± 0.25 mm

Cable structure8 x 0.34 mm² + 1 x 0.5 mm²

Nominal cross section conductor0.5

Wire endsCut off bluntly

Degree of protectionIP40

Note on degree of protectionIn mounted state

Ambient temperature-25, 70

Ambient temperature with moving cable-5, 70

Storage temperature-25, 75

CE mark (see declaration of conformity)In accordance with EU RoHS Directive

UKCA marking (see declaration of conformity)To UK RoHS instructions

LABS (PWIS) conformityVDMA24364-B2-L

Note on materialsRoHS compliant

Pollution degree2

Material cable sheathPVC

Cable sheath colourGrey

Material housingReinforced PBT

Housing colourGrey

Material screw-type lockBrass, nickel-plated

Material electrical contactGold-plated copper alloy
