How can I get a price quote for Festo CPE10-M1BH-3GLS-QS-4?

You can request a fast quote for Festo CPE10-M1BH-3GLS-QS-4 from Yılsa Engineering. Reference part number CEY-937FC7821879. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Festo CPE10-M1BH-3GLS-QS-4 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Festo CPE10-M1BH-3GLS-QS-4 genuine and new?

Yes. This Festo product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Festo CPE10-M1BH-3GLS-QS-4?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

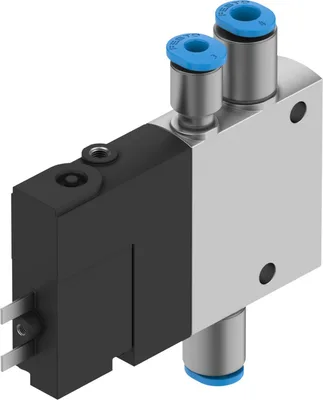

Festo CPE10-M1BH-3GLS-QS-4

Solenoid valve. Universal individual valve. High flow rate relative to its size

FestoMFR # CPE10-M1BH-3GLS-QS-4SKU # CEY-937FC7821879

Valve function3/2-way, single solenoid, closed

Type of actuationElectrical

Construction width10

pneumatic working portQS-4

Operating voltage24 V DC

Operating pressure-0.09, 1

Have questions?Chat on WhatsApp

About This Product

Solenoid valve. Universal individual valve. High flow rate relative to its size

Festo CPE10-M1BH-3GLS-QS-4

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Valve function3/2-way, single solenoid, closed

Type of actuationElectrical

Construction width10

Standard nominal flow rate (standardised to DIN 1343)190

pneumatic working portQS-4

Operating voltage24 V DC

Operating pressure-0.09, 1

Operating pressure-0.9, 10

DesignPiston gate valve

Type of resetPneumatic spring

Approvalc UL us - Recognised (Oil)

Maritime classificationSee certificate

Certificate issuing authorityDNV-TAA000032X, UL MH19482

Degree of protectionIP65, With plug socket, To IEC 60529

Nominal size4

Sealing principleSoft

Mounting positionAny

Manual overrideDetenting via accessory, Non-detenting

Type of pilotingPiloted

Pilot air supplyExternal

Flow directionNon-reversible

Symbol00991405

Valve position codeLabel holder

lapOverlap

Pilot pressure0.25, 0.8

Pilot pressure2.5, 8

Switching time off14

Switching time on14

Duty cycle100% in conjunction with holding current reduction

Max. positive test pulse with 0 signal1200

Max. negative test pulse with 1 signal900

Characteristic coil data24 V DC: 1.28 W

Permissible voltage fluctuations-15% / +10%

Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]

Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)

Vibration resistanceTransport application test with severity level 2 to FN 942017-4 and EN 60068-2-6

Shock resistanceShock test with severity level 2 to FN 942017-5 and EN 60068-2-27

Corrosion resistance class CRC2 - Moderate corrosion stress

LABS (PWIS) conformityVDMA24364-B1/B2-L

Media temperature-5, 50

Pilot mediumCompressed air to ISO 8573-1:2010 [7:4:4]

Ambient temperature-5, 50

Electrical connection2-pin

Type of mountingWith through-hole

Pilot exhaust port 82M3

Pilot air port 12M3

Pneumatic connection, port 1QS-4

Pneumatic connection, port 2QS-4

Pneumatic connection, port 3M7

Note on materialsRoHS compliant

Material sealsNBR

Material housingDie-cast aluminium

Accessories 85

Genuine accessories that can be used with the Festo CPE10-M1BH-3GLS-QS-4 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
PUN-H-4X0,75-SW	Plastic tubing · Tubes
PUN-H-4X0,75-TBL	Plastic tubing · Tubes
PUN-H-4X0,75-TSW	Plastic tubing · Tubes
PUN-H-4X0,75-NT	Plastic tubing · Tubes
PUN-H-4X0,75-BL	Plastic tubing · Tubes
NEBV-Z4WA2L-R-E-2.5-N-LE2-S1	Connecting cable · Connecting cables
NEBV-Z4WA2L-R-E-5-N-LE2-S1	Connecting cable · Connecting cables
IBS-6X10	Inscription label · General accessories
PAN-V0-4X0,75-BL	Plastic tubing · Tubing
PUN-4X0,75-SI	Plastic tubing · Tubing
PAN-4X0,75-SI	Plastic tubing · Tubing
AHB-MZB	Manual override · General accessories
PUN-4X0,75-BL	Plastic tubing · Tubing
PUN-4X0,75-SW	Plastic tubing · Tubing
UC-M7	Silencer · Silencer
PUN-4X0,75-RT	Plastic tubing · Tubing
PUN-4X0,75-GE	Plastic tubing · Tubing
PUN-4X0,75-GN	Plastic tubing · Tubing
PUN-CM-4-SW	Plastic tubing · Tubing
PLN-4X0,75-NT	Plastic tubing · Tubing
PLN-4X0,75-SW	Plastic tubing · Tubing
PFAN-4X0,75-NT	Plastic tubing · Tubing
PUN-4X0,75-SI-500	Plastic tubing · Tubing
PUN-4X0,75-BL-500	Plastic tubing · Tubing
UC-M7-50	Silencer · Silencer
PAN-R-4X0,75-SI	Heavy-duty tubing · Tubing
PEN-4X0,75-SW	Plastic tubing · Tubing
PEN-4X0,75-NT	Plastic tubing · Tubing
PAN-4X0,75-NT	Plastic tubing · Tubing
PEN-4X0,75-SW-500	Plastic tubing · Tubing
PEN-4X0,75-BL-500	Plastic tubing · Tubing
PEN-4X0,75-SI-500	Plastic tubing · Tubing
PEN-4X0,75-BL	Plastic tubing · Tubing
PEN-4X0,75-SI	Plastic tubing · Tubing
PEN-4X0,75-GN	Plastic tubing · Tubing
PEN-4X0,75-RT	Plastic tubing · Tubing
PEN-4X0,75-GE	Plastic tubing · Tubing
PAN-4X0,75-SI-500	Plastic tubing · Tubing
PAN-4X0,75-BL-500	Plastic tubing · Tubing
PAN-4X0,75-SW-500	Plastic tubing · Tubing
PAN-4X0,75-BL	Plastic tubing · Tubing
PAN-4X0,75-SW	Plastic tubing · Tubing
PAN-4X0,75-GN	Plastic tubing · Tubing
PAN-4X0,75-RT	Plastic tubing · Tubing
PAN-4X0,75-GE	Plastic tubing · Tubing
PUN-4X0,75-SW-500	Plastic tubing · Tubing
PLN-4X0,75-BL	Plastic tubing · Tubing
PLN-4X0,75-SI	Plastic tubing · Tubing
PLN-4X0,75-RT	Plastic tubing · Tubing
PUN-H-4X0,75-SW-500	Plastic tubing · Tubing
PUN-H-4X0,75-BL-500	Plastic tubing · Tubing
PUN-H-4X0,75-NT-500	Plastic tubing · Tubing
PUN-H-4X0,75-SI-500	Plastic tubing · Tubing
PUN-H-4X0,75-SI	Plastic tubing · Tubing
PUN-H-4X0,75-RT	Plastic tubing · Tubing
PUN-H-4X0,75-GN	Plastic tubing · Tubing
PUN-H-4X0,75-GE	Plastic tubing · Tubing
PUN-V0-4X1-SW-C	Plastic tubing · Tubing
PUN-V0-4X1-BL-C	Plastic tubing · Tubing
PAN-MF-4X0,75-SW	Plastic tubing · Tubing
PAN-MF-4X0,75-SW-500	Plastic tubing · Tubing
AMTE-M-LH-M3	Silencer · Silencer
NEDY-	Distributor · Electrical accessories
NEDY-L2R1-V1-Z4W2Z-U-0.3L-M12G4-2.5R	Distributor · Electrical accessories
NEBV-Z4WA2L-R-E-10-N-LE2-S1	Connecting cable · Connecting cables
NEBV-Z4WA2-E-0.2-N-Z1W2-S1	Connecting cable · Connecting cables
NEBV-Z4WA2L-R-E-0.2-N-Z1W2-S1	Connecting cable · Connecting cables
NEBV-Z4WA2L-R-E-0.5-N-M8G3-S1	Connecting cable · Connecting cables
NEBV-Z4WA2L-R-E-2.5-N-M8G3-S1	Connecting cable · Connecting cables
PUN-H-4X0,75-TBL-500	Plastic tubing · Tubing
PUN-H-4X0,75-TSW-500	Plastic tubing · Tubing
PUN-H-4X0,75-TRT	Plastic tubing · Tubing
PUN-H-4X0,75-TRT-500	Plastic tubing · Tubing
PUN-H-4X0,75-TGN	Plastic tubing · Tubing
PUN-H-4X0,75-TGN-500	Plastic tubing · Tubing
PUN-H-4X0,75-TGE	Plastic tubing · Tubing
PUN-H-4X0,75-TGE-500	Plastic tubing · Tubing
PTFEN-4X0,5-NT-100	Plastic tubing · Tubing
PUN-H-F-4X0,75-NT	Plastic tubing · Tubing
PUN-H-F-4X0,75-RT	Plastic tubing · Tubing
PUN-H-F-4X0,75-BL	Plastic tubing · Tubing
PUN-H-F-4X0,75-TBL	Plastic tubing · Tubing
PUN-H-F-4X0,75-GN	Plastic tubing · Tubing
PUN-H-F-4X0,75-GE	Plastic tubing · Tubing
PUN-H-F-4X0,75-SW	Plastic tubing · Tubing
