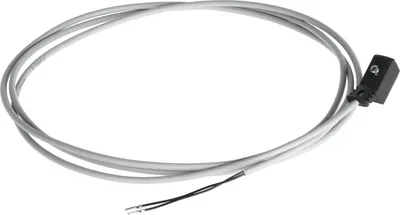

Festo NEBV-Z4WA2L-R-E-2.5-N-LE2-S1

Connecting cable. For solenoid coils form A, form B or form C. For solenoid coils with thread M8x1 or M12x1 A-coded. For solenoid coils ZC or various special connection patterns. Pre-assembled at one or both ends. Cable length 0.1 ... 30 m. With PUR cable. Ambient temperature -25 ... +80 °C

FestoMFR # NEBV-Z4WA2L-R-E-2.5-N-LE2-S1SKU # YLSVOTTROAPXNB2

Signal status displayYellow LED

Additional functionsProtective circuit

Cable designationWithout inscription label holder

Frequency of connection50

Product weight50

Electrical connection 1, functionField device side

Have questions?Chat on WhatsApp

About This Product

Festo NEBV-Z4WA2L-R-E-2.5-N-LE2-S1

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Signal status displayYellow LED

Additional functionsProtective circuit

Cable designationWithout inscription label holder

Frequency of connection50

Product weight50

Electrical connection 1, functionField device side

Electrical connection 1, designSquare

Electrical connection 1, connection typeSocket

Electrical connection 1, cable outletAngled

Electrical connection 1, connector systemPlug pattern ZC, metric screw

Electrical connection 1, number of connections/cores2

Electrical connection 1, used connections/cores2

Electrical connection 1, type of mountingOn solenoid valve via M2 central screw

Electrical connection 1, connection pattern00995625

Electrical connection 2, functionControl side

Electrical connection 2, connection typeCable

Electrical connection 2, connector systemOpen end

Electrical connection 2, number of connections/cores2

Electrical connection 2, used connections/cores2

Operational voltage range DC20.4, 26.4

Nominal operating voltage DC24

Immunity to surge2.4

Reverse polarity protectionBipolar

Protective conductor connectionNot provided

Cable length2.5

Cable characteristicSuitable for energy chains

Test conditions cableTest conditions on request

Bending radius, moving cable29

Cable diameter2.9

Cable diameter tolerance± 0.1 mm

Cable structure2 x 0.14 mm²

Nominal cross section conductor0.14

Degree of protectionIP65

Note on degree of protectionIn mounted state

Ambient temperature-10, 50

CE mark (see declaration of conformity)To EU EMC Directive, In accordance with EU RoHS Directive

UKCA marking (see declaration of conformity)To UK instructions for EMC, To UK RoHS instructions

LABS (PWIS) conformityVDMA24364-B2-L

Note on materialsRoHS compliant

Pollution degree3

Note on the contamination levelIn mounted state

Corrosion resistance class CRC3 - high corrosion stress

Material cable sheathTPE-U(PUR)

Cable sheath colourGrey

Material housingTPE-U(PU)

Housing colourBlack

Material screwsStainless steel

Material electrical contactTin-plated copper alloy

Material insulating sheathPP

Accessories 1

Genuine accessories that can be used with the Festo NEBV-Z4WA2L-R-E-2.5-N-LE2-S1 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.
