How can I get a price quote for Enerpac ZA4208TXQRU105?

You can request a fast quote for Enerpac ZA4208TXQRU105 from Yılsa Engineering. Reference part number CEY-0681555D7CED. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Enerpac ZA4208TXQRU105 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Enerpac ZA4208TXQRU105 genuine and new?

Yes. This Enerpac product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Enerpac ZA4208TXQRU105?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

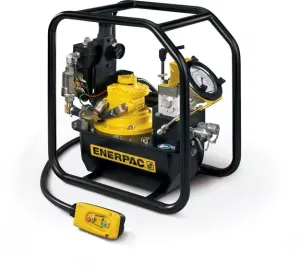

Enerpac ZA4208TX-QRU105 Air Pump & Hose Set

Enerpac ZA4208TX-QRU105; 700 bar, 6.6 litres usable oil, two-speed air hydraulic torque wrench pump and THQ706T twin hose set for S, W, RSL, DSX and HMT Series wrenches.

EnerpacMFR # ZA4208TXQRU105SKU # CEY-0681555D7CED

Maximum Operating Pressure700 bar

Output Flow Rate @ 50 bar4,8 l/min

Relief Valve Adjustment Range124 - 800 bar

Maximum Operating Pressure Range700 bar

Product TypeAir Pump - Torque Wrench

Sound Level85 - 90 dB(A)

Have questions?Chat on WhatsApp

About This Product

ZA4208TX-QRU105 consists of a ZA4T series two-speed air hydraulic torque wrench pump and a 700 bar hose set. Maximum operating pressure is 700 bar, usable oil capacity is 6.6 litres and flow is 0.98 - 1.95 l/min. Air pressure is 7.0 bar and air consumption is 600 - 2840 l/min. It is used with S, W, RSL, DSX and HMT Series torque wrenches. The set comes standard with a THQ706T twin hose. Relief valve range is 124 - 800 bar, weight is 58 kg and sound level is 85 - 90 dBA. Fine air pressure adjustment provides accurate torque control; the heat exchanger warms exhaust air to prevent freezing and cools the oil.

Features and Benefits

Two-speed operation and high by-pass pressure reduce cycle time
Complete 700 bar pump-hose set, standard with THQ706T twin hose
Fine air pressure adjustment for very accurate torque control
Heat exchanger warms exhaust air to prevent freezing and cools the oil
Glycerin-filled pressure gauge with ft.lbs and Nm overlays
Ergonomic pendant for remote operation up to 6 m

Enerpac ZA4208TXQRU105

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Maximum Operating Pressure700 bar

Output Flow Rate @ 50 bar4,8 l/min

Relief Valve Adjustment Range124 - 800 bar

Maximum Operating Pressure Range700 bar

Product TypeAir Pump - Torque Wrench

Sound Level85 - 90 dB(A)

Output Flow Rate @ 7 bar5,4 l/min

SeriesZA4T

Air Pressure Range7,0 bar

For Use With Torque WrenchesFor use with all Enerpac torque wrenches

Output Flow Rate @ 700 bar0,8 l/min

Product LineBolting Tools

Flow Rate Range at Rated Pressure0,98 - 1,95 l/min

Weight58 kg

Reservoir Capacity6600 cm³

Air Consumption600 - 2840 l/min

Output Flow Rate @ 350 bar1,1 l/min

Usable Oil Capacity6,6 l

Documents & CAD

Series documents 1· shared by this product series

BrochureZA4T-Series Air Hydraulic Torque Pumps; EnglishPDF·925 KB
