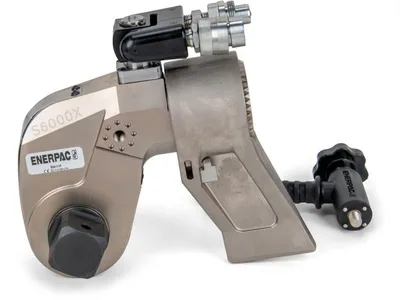

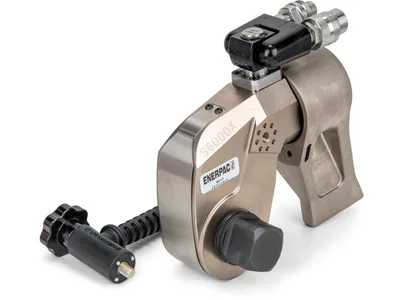

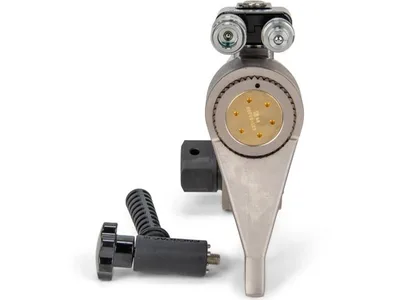

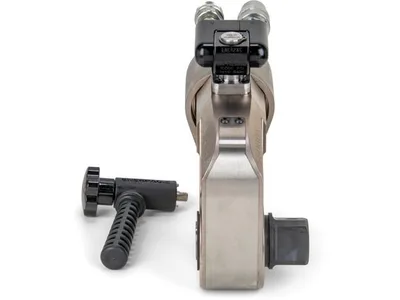

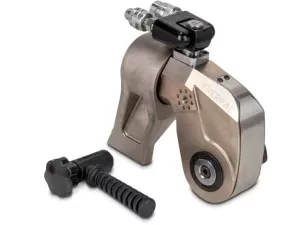

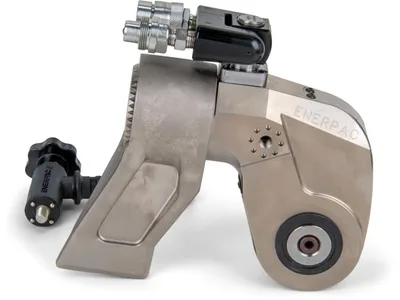

Enerpac S6000PX 8338 Nm Hydraulic Torque Wrench

Enerpac S6000PX; 8338 Nm (6150 ft.lb) maximum torque, 1 1/2 in square drive hydraulic torque wrench with Pro Series swivel.

EnerpacMFR # S6000PXSKU # YLSYQZSR723D8DG

MaterialSteel

Maximum Torque Output8338 Nm (6150 ft-lbs)

Minimum Torque834 Nm (615 ft-lbs)

Square Drive1 1/2 in

Weight9.2 kg (20.2 lbs)

Dimension G110 mm (4.33 in)

Have questions?Chat on WhatsApp

About This Product

S6000PX is a square drive hydraulic torque wrench from the Enerpac S-PX series in the bolting tools range. Maximum torque output is 8338 Nm (6150 ft.lb), minimum torque is 834 Nm (615 ft.lb), the square drive size is 1 1/2 in and the weight is 9.2 kg. It is the model with swivel manifold. The compact, high-strength uni-body construction provides a small operating radius. A 35 degree rotation angle and rapid return stroke allow fast operation. The 360 degree click-on reaction arm and a handle that mounts on both sides make handling easier. The enhanced tilt and swivel TSP300 manifold provides horizontal and vertical maneuverability with greater durability. The tool is used in heavy industrial bolt tightening and loosening.

Features and Benefits

8338 Nm (6150 ft.lb) maximum torque, 834 Nm minimum torque
1 1/2 in square drive with push button release
Enhanced tilt and swivel TSP300 manifold
Compact, high-strength uni-body construction
35 degree rotation angle and rapid return stroke
360 degree click-on reaction arm and double-sided handle mounting

Enerpac S6000PX

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

MaterialSteel

Maximum Torque Output8338 Nm (6150 ft-lbs)

Minimum Torque834 Nm (615 ft-lbs)

Square Drive1 1/2 in

Model Typewith swivel manifold (6150 Ft.Lbs. Torque, 1 1/2 in. Square Drive)

Weight9.2 kg (20.2 lbs)

Dimension G110 mm (4.33 in)

Dimension E192 mm (7.56 in)

Country of OriginUnited Kingdom

Length192 mm (7.56 in)

Dimension F40 mm (1.57 in)

Dimension D157 mm (6.18 in)

Dimension C169 mm (6.65 in)

Dimension B92 mm (3.62 in)

Minimum Torque Rated At1000 psi 69 bar

ApplicationsTorque

Nominal Torque8338 Nm (6150 ft-lbs)

Dimension H188 mm (7.4 in)

Product TypeSquare Drive Torque Wrench

Width92 mm (3.62 in)

Maximum Operating Pressure10,000 psi

SeriesS-PX

Dimension A55 mm (2.17 in)

Product LineBolting Tools

Nominal Torque Rated At10,000 psi 690 bar

Height182 mm (7.18 in)

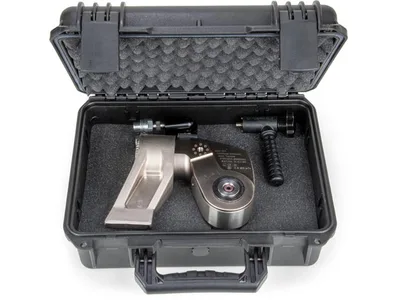

Set IncludesSWH10A,TSP300,SD60108

Documents & CAD

For this product 1

Repair Parts SheetTorque Wrench, Hydraulic, S6000X and S6000PXPDF·858 KB·English

Series documents 3· shared by this product series

Instruction ManualS-Series Hydraulic Torque Wrench, S1500X, S3000X, S6000X, S11000X, S25000XPDF·5.7 MB

Instruction ManualPro Series Swivel, TSP300PDF·13.7 MB 4 languages· in one file

BrochureS-Series Square Drive Torque Wrenches; EnglishPDF·1.0 MB

CAD Files 3

3D Model
