How can I get a price quote for Enerpac S11000X?

You can request a fast quote for Enerpac S11000X from Yılsa Engineering. Reference part number YLSUYSHDSLI8DEQ. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Enerpac S11000X in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Enerpac S11000X genuine and new?

Yes. This Enerpac product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Enerpac S11000X?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

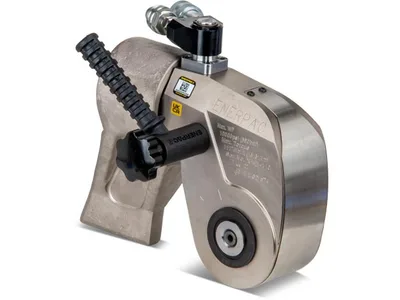

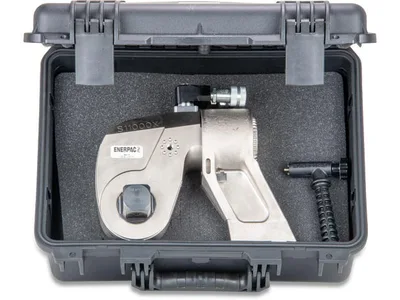

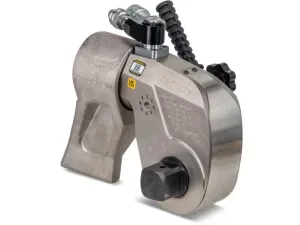

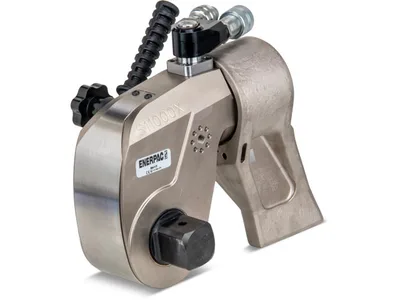

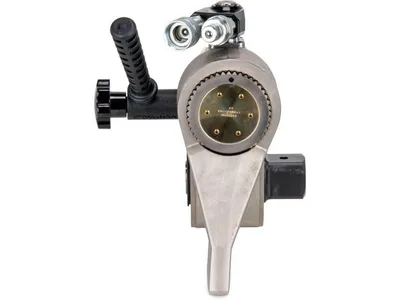

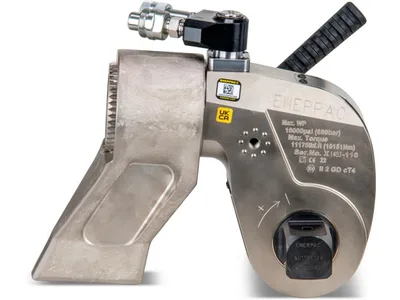

Enerpac S11000X 15151 Nm Hydraulic Torque Wrench

Enerpac S11000X; 15151 Nm (11175 ft-lbs) maximum torque, 1 1/2 in square drive, steel-body hydraulic torque wrench without swivel manifold.

EnerpacMFR # S11000XSKU # YLSUYSHDSLI8DEQ

MaterialSteel

Maximum Torque Output15151 Nm (11175 ft-lbs)

Minimum Torque1515 Nm (1118 ft-lbs)

Square Drive1 1/2 in

Weight15.7 kg (34.7 lbs)

Dimension G133 mm (5.24 in)

Have questions?Chat on WhatsApp

About This Product

The S11000X is an S-Series square drive hydraulic torque wrench. Maximum torque output is 15151 Nm (11175 ft-lbs) and minimum torque is 1515 Nm (1118 ft-lbs). It has a 1 1/2 in square drive, weighs 15.7 kg and is the version without swivel manifold. The single-body steel construction is designed to be more durable for heavy users than aluminum and modular designs. S-Series X-edition tools are CE - ATEX declared and shipped with a calibration certificate. It offers a 35° rotation angle and rapid return stroke. It suits repetitive heavy industrial bolting work, including environments where an explosive atmosphere may be present.

Features and Benefits

15151 Nm (11175 ft-lbs) maximum torque, 1 1/2 in square drive
Compact, high-strength single-body construction with small operating radius
35° rotation angle and rapid return stroke
360° click-on reaction arm and robust handle that mounts on both sides
CE - ATEX declared; calibration certificate included
Available with optional TSP300 tilt and swivel manifold

Enerpac S11000X

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

MaterialSteel

Maximum Torque Output15151 Nm (11175 ft-lbs)

Minimum Torque1515 Nm (1118 ft-lbs)

Square Drive1 1/2 in

Model Typewithout swivel manifold (11175 Ft.Lbs. Torque, 1 1/2 in. Square Drive)

Weight15.7 kg (34.7 lbs)

Dimension G133 mm (5.24 in)

Dimension E228 mm (8.98 in)

Country of OriginUnited Kingdom

Length228 mm (8.98 in)

Dimension F50 mm (1.95 in)

Dimension D190 mm (7.48 in)

Dimension C197 mm (7.76 in)

Dimension B114 mm (4.49 in)

Minimum Torque Rated At1000 psi 69 bar

ApplicationsTorque

Nominal Torque15151 Nm (11175 ft-lbs)

Dimension H229 mm (9.02 in)

Product TypeSquare Drive Torque Wrench

Width169 mm (6.65 in)

Maximum Operating Pressure10,000 psi

SeriesS

Dimension A72 mm (2.83 in)

Product LineBolting Tools

Nominal Torque Rated At10,000 psi 690 bar

Height215 mm (8.48 in)

Set IncludesSWH10A,SD110108

Documents & CAD

For this product 1

Repair Parts SheetTorque Wrench, Hydraulic, S11000X and S11000PX RPSPDF·822 KB·English

Series documents 3· shared by this product series

Instruction ManualS-Series Hydraulic Torque Wrench, S1500X, S3000X, S6000X, S11000X, S25000XPDF·5.7 MB

Instruction ManualPro Series Swivel, TSP300PDF·13.7 MB 4 languages· in one file

BrochureS-Series Square Drive Torque Wrenches; EnglishPDF·1.0 MB

CAD Files 20
