How can I get a price quote for Enerpac S11000PX?

You can request a fast quote for Enerpac S11000PX from Yılsa Engineering. Reference part number YLSWX9ZQEVDU9IJ. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Enerpac S11000PX in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Enerpac S11000PX genuine and new?

Yes. This Enerpac product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Enerpac S11000PX?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

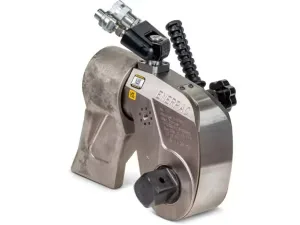

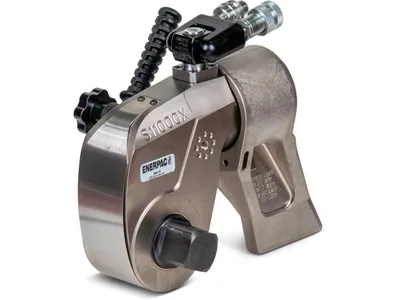

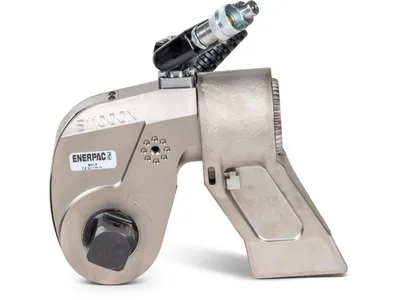

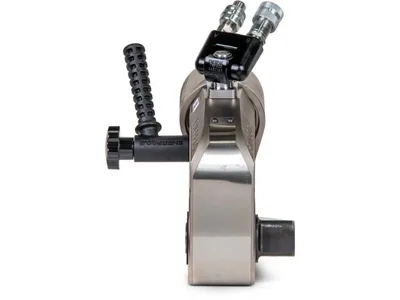

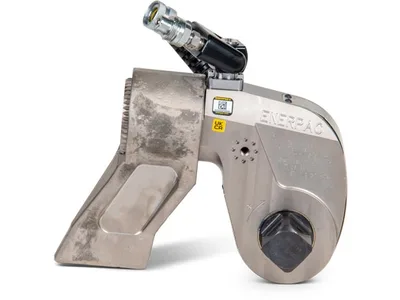

Enerpac S11000PX 15151 Nm Hydraulic Torque Wrench

Enerpac S11000PX; 15151 Nm (11175 ft-lbs) maximum torque, 1 1/2 in square drive, Pro Series hydraulic torque wrench with swivel manifold.

EnerpacMFR # S11000PXSKU # YLSWX9ZQEVDU9IJ

MaterialSteel

Maximum Torque Output15151 Nm (11175 ft-lbs)

Minimum Torque1516 Nm (1,118 ft-lbs)

Square Drive1 1/2 in

Weight15,8 kg (34.7 lbs)

Dimension G133 mm (5.24 in)

Have questions?Chat on WhatsApp

About This Product

The S11000PX is a square drive hydraulic torque wrench from the S-PX series, fitted with the Pro Series swivel manifold. Maximum torque output is 15151 Nm (11175 ft-lbs) and minimum torque is 1516 Nm (1118 ft-lbs). It has a 1 1/2 in square drive, weighs 15.8 kg and is made of steel. The compact, high-strength uni-body construction gives a small operating radius. A 35° rotation angle and rapid return stroke allow fast operation. The TSP300 tilt and swivel manifold provides maneuverability in horizontal and vertical positions. It is used in heavy industrial maintenance and assembly work where large bolts and studs must be tightened and loosened.

Features and Benefits

15151 Nm (11175 ft-lbs) maximum torque, 1 1/2 in square drive
Compact, high-strength uni-body construction with small operating radius
35° rotation angle and rapid return stroke
360° click-on reaction arm with quick release lever for easy handling, even with gloves
Push button square drive release for quick reversal between tightening and loosening
TSP300 tilt and swivel manifold for horizontal and vertical maneuverability

Enerpac S11000PX

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

MaterialSteel

Maximum Torque Output15151 Nm (11175 ft-lbs)

Minimum Torque1516 Nm (1,118 ft-lbs)

Square Drive1 1/2 in

Model Typewith swivel manifold (11175 Ft.Lbs. Torque, 1 1/2 in. Square Drive)

Weight15,8 kg (34.7 lbs)

Dimension G133 mm (5.24 in)

Dimension E228 mm (8.98 in)

Country of OriginUnited Kingdom

Dimension F50 mm (1.95 in)

Dimension D190 mm (7.48 in)

Dimension C197 mm (7.76 in)

Dimension B114 mm (4.49 in)

Minimum Torque Rated At1000 psi 69 bar

ApplicationsTorque

Dimension H229 mm (9.02 in)

Product TypeSquare Drive Torque Wrench

SeriesS-PX

Dimension A72 mm (2.83 in)

Product LineBolting Tools

Nominal Torque Rated At10,000 psi 690 bar

Set IncludesSWH10A,TSP300,SD110108

Documents & CAD

For this product 2

Instruction ManualS-Series Hydraulic Torque Wrench, S1500X, S3000X, S6000X, S11000X, S25000XPDF·5.7 MB

Repair Parts SheetTorque Wrench, Hydraulic, S11000X and S11000PX RPSPDF·822 KB·English

Series documents 2· shared by this product series

Instruction ManualPro Series Swivel, TSP300PDF·13.7 MB 4 languages· in one file

BrochureS-Series Square Drive Torque Wrenches; EnglishPDF·1.0 MB
