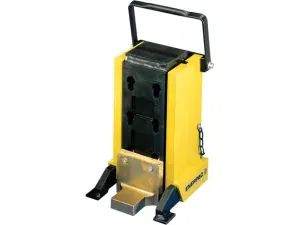

Enerpac SOH236 178 kN Machine Lift

Enerpac SOH236; 178 kN (20 ton) capacity, 157 mm stroke, 30 mm minimum toe clearance, hydraulic machine lift (toe jack).

EnerpacMFR # SOH236SKU # CEY-55221B13F606

Country of OriginNetherlands

Dimension F65 mm (2.56 in)

Capacity178 kN (20 ton)

Toe Clearance, Cylinder Retracted A2110 mm

ApplicationsLift

Dimension K80 mm (3.15 in)

Have questions?Chat on WhatsApp

About This Product

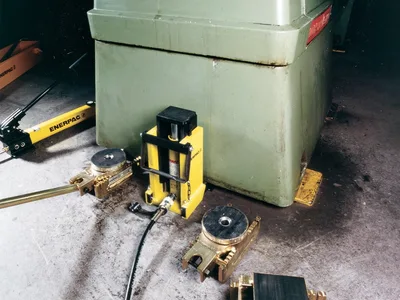

The SOH236 is a hydraulic machine lift (toe jack) from the Enerpac SOH series. It offers 178 kN (20 ton) capacity, a 157 mm (6.18 in) stroke and a minimum toe clearance of 30 mm (1.18 in). Total body height is 320 mm, extended height is 472 mm, oil capacity is 525 cm³ and weight is 45 kg. The unit comes with an RC256 cylinder and CR400 coupler. A low-height lifting toe raised by the integral hydraulic cylinder fits into small clearance gaps for lifting factory machinery. Precision guiding reduces side loads, and two extendable support feet add stability. When used with load skates, it provides a safe way to move heavy machinery around a facility.

Features and Benefits

For lifting heavy equipment with minimum access
Remote operation of the hydraulic pump enhances safety
Precision guided to reduce friction and prevent side loads
Two extendable support feet provide extra stability
Includes RC-Series cylinder with CR400 coupler

Enerpac SOH236

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

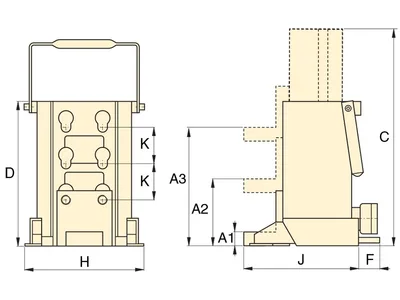

Specifications

Country of OriginNetherlands

Dimension F65 mm (2.56 in)

Toe Clearance, Cylinder Retracted, Central (A2)4.33 in

Capacity178 kN (20 ton)

Toe Clearance, Cylinder Retracted A2110 mm

ApplicationsLift

Dimension K80 mm (3.15 in)

Oil Capacity525 cm³ (32 in³)

Dimension J250 mm (9.84 in)

Dimension H265 mm (10.24 in)

Product TypeMachine Lift

SeriesSOH

Total Body Height D320 mm (12.4 in)

Total Extended Height C472 mm (18.58 in)

Toe Clearance, Cylinder Retracted, Min. (A1)30 mm (1.18 in)

Toe Clearance, Cylinder Retracted, Max. (A3)190 mm (7.48 in)

Stroke157 mm (6.18 in)

Product LineIndustrial Tools

Weight45 kg (99.2 lbs)

Set IncludesRC256,CR400

Documents & CAD

Series documents 5· shared by this product series

Instruction ManualMachine Jacks, SOH-10-6 and SOH-23-6PDF·362 KB·Norsk

Instruction ManualMachine Jacks, SOH-10-6 and SOH-23-6PDF·2.3 MB 4 languages· in one file

Repair Parts SheetMachine LiftPDF·79 KB·English

CertificateEC2A-HYDMACHINELIFT-SOH_RevC_Jan2023PDF·131 KB

BrochureSOH-Series Hydraulic Machine Lifts; EnglishPDF·201 KB

CAD Files 2

3D Model
