Enerpac SHP421SW 4-Outlet SyncHoist Pump

Enerpac SHP421SW; 4 outlets, 700 bar (10,000 psi), 400 V 50 Hz, 10 kW motor, SyncHoist hydraulic pump.

EnerpacMFR # SHP421SWSKU # YLSGWUMY72WBR1W

Motor Phases3 Ph

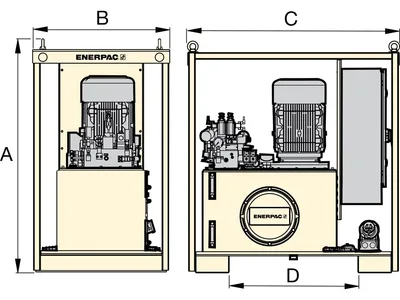

Dimension D760 mm (29.92 in)

Dimension C1250 mm (49.21 in)

Motor Electrical Specification400 V, 3 Ph, 50 Hz

Maximum Operating Pressure700 bar (10,000 psi)

Dimension B805 mm (31.69 in)

Have questions?Chat on WhatsApp

About This Product

SHP421SW is an SHP-series hydraulic pump used to operate up to four SHC-series SyncHoist cylinders. It has 4 lift points, 700 bar (10,000 psi) maximum pressure and OC valves. The pump is supplied with a 10 kW motor running on 400 V, 3 phase, 50 Hz. Reservoir capacity is 250 litres, and oil flow per outlet at 700 bar is 2.10 L/min. Weight is 780 kg. Stroke sensors and pressure transducers at each lifting point provide position and load feedback at the operator control station. It is used in lifting and lowering applications.

Features and Benefits

4 lift points, 4 pump outlets
700 bar (10,000 psi) maximum operating pressure
400 V, 3 phase, 50 Hz, 10 kW motor
2.10 L/min oil flow per outlet (700 bar)
250 litre reservoir capacity
Position and load feedback via integrated sensors
