Enerpac SHC8540S 85 ton SyncHoist Cylinder

Enerpac SHC8540S; 85 ton (833 kN) capacity, 1000 mm stroke, 700 bar double-acting SyncHoist hydraulic cylinder with sensors.

EnerpacMFR # SHC8540SSKU # YLSRAXBUKMWXJ2A

Dimension E72 mm (2.83 in)

Maximum Operating Pressure700 bar (10,000 psi)

ApplicationsLift, Lower

Product TypeSyncHoist Hydraulic Cylinder

SeriesSHC

Dimension D2265 mm (10.43 in)

Have questions?Chat on WhatsApp

About This Product

SHC8540S is a SyncHoist hydraulic cylinder with sensors from the SHC series. As a below-the-hook sling adjuster (hydraulic turnbuckle), it mounts directly in-line with the rigging and allows each lifting point to be monitored and adjusted precisely and independently. It has a capacity of 85 tons (833 kN; 94 imperial tons), 1000 mm (39.37 in) stroke, 700 bar (10,000 psi) maximum operating pressure, and weighs 700 kg. Collapsed height (A) is 1830 mm and extended height (B) is 2830 mm. Integrated stroke sensors and pressure transducers provide position and load feedback at the operator control station. With optional PLC controls, it is used in lifting and lowering applications where a load must be maneuvered precisely in the vertical and horizontal directions using a single crane.

Features and Benefits

Integrated stroke sensors and pressure transducers for position and load feedback
High precision horizontal and vertical load positioning
Precise load maneuvering using a single crane
Double-acting push/pull cylinder with load holding valves for added safety
Optional automatic control with load and stroke monitoring

Enerpac SHC8540S

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

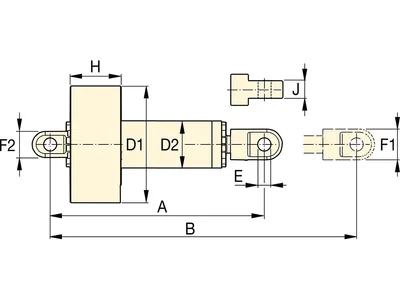

Specifications

Dimension E72 mm (2.83 in)

Maximum Operating Pressure700 bar (10,000 psi)

ApplicationsLift, Lower

Product TypeSyncHoist Hydraulic Cylinder

SeriesSHC

Dimension D2265 mm (10.43 in)

Dimension J100 mm (3.94 in)

Dimension A1830 mm (72.05 in)

Product LineIndustrial Tools

Weight700 kg (1568 lbs)

Dimension F2164 mm (6.46 in)

Dimension D1680 mm (26.77 in)

Capacity833 kN (85 ton · 94 ton)

Dimension B2830 mm (111.42 in)

Dimension H385 mm (15.16 in)

Stroke1000 mm (39.37 in)

Dimension F1164 mm (6.46 in)

Documents & CAD

Series documents 1· shared by this product series

BrochureSHC-SHP-Series_SyncHoist_Load_Positioning_EN-USPDF·716 KB
