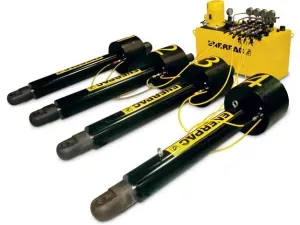

Enerpac SHC11060S 110 ton SyncHoist Cylinder
Enerpac SHC11060S; 110 ton (1078 kN) capacity, 1500 mm stroke, 700 bar double-acting SyncHoist hydraulic cylinder with sensors.
Dimension E85 mm (3.35 in)
Maximum Operating Pressure700 bar (10,000 psi)
ApplicationsLift, Lower
Product TypeSyncHoist Hydraulic Cylinder
SeriesSHC
Dimension D2315 mm (12.4 in)
About This Product
SHC11060S is a SyncHoist hydraulic cylinder with sensors from the SHC series. As a below-the-hook sling adjuster (hydraulic turnbuckle), it mounts directly in-line with the rigging and allows each lifting point to be monitored and adjusted precisely and independently.
It has a capacity of 110 tons (1078 kN; 120 imperial tons), 1500 mm (59.06 in) stroke, 700 bar (10,000 psi) maximum operating pressure, and weighs 1235 kg. Collapsed height (A) is 2355 mm and extended height (B) is 3855 mm. Integrated stroke sensors and pressure transducers provide position and load feedback at the operator control station.
With optional PLC controls, it is used in lifting and lowering applications where a load must be maneuvered precisely in the vertical and horizontal directions using a single crane.
Features and Benefits
- Integrated stroke sensors and pressure transducers for position and load feedback
- High precision horizontal and vertical load positioning
- Precise load maneuvering using a single crane
- Double-acting push/pull cylinder with load holding valves for added safety
- Reduces the risk of damage from wire rope oscillation and sudden starts/stops
Enerpac SHC11060S
- Genuine, certified Enerpac product
- Fast sourcing through a worldwide supply network
- Product selection and compatibility support from our technical team
- Equivalent and alternative product suggestions
- Quotation and lead time tailored to your request
Specifications
Dimension E85 mm (3.35 in)
Maximum Operating Pressure700 bar (10,000 psi)
ApplicationsLift, Lower
Product TypeSyncHoist Hydraulic Cylinder
SeriesSHC
Dimension D2315 mm (12.4 in)
Dimension J124 mm (4.88 in)
Dimension A2355 mm (92.72 in)
Product LineIndustrial Tools
Weight1235 kg (2766 lbs)
Dimension F2174 mm (6.85 in)
Dimension D1780 mm (30.71 in)
Capacity1078 kN (110 ton · 120 ton)
Dimension B3855 mm (151.77 in)
Dimension H405 mm (15.94 in)
Stroke1500 mm (59.06 in)
Dimension F1205 mm (8.07 in)
Documents & CAD
