How can I get a price quote for Enerpac SHP414SJ?

You can request a fast quote for Enerpac SHP414SJ from Yılsa Engineering. Reference part number YLST6HYS9TWNM3. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Enerpac SHP414SJ in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Enerpac SHP414SJ genuine and new?

Yes. This Enerpac product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Enerpac SHP414SJ?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

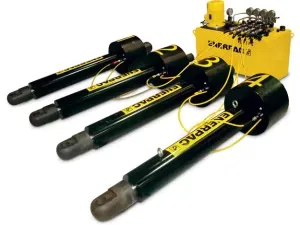

Enerpac SHP414SJ 4-Outlet SyncHoist Pump

Enerpac SHP414SJ; 4 outlets, 700 bar (10,000 psi), 460 V 60 Hz, 10 HP motor, SyncHoist hydraulic pump.

EnerpacMFR # SHP414SJSKU # YLST6HYS9TWNM3

Motor Phases3 Ph

Dimension D760 mm (29.92 in)

Dimension C1250 mm (49.21 in)

Motor Electrical Specification460 V, 3 Ph, 60 Hz

Maximum Operating Pressure700 bar (10,000 psi)

Dimension B805 mm (31.69 in)

Have questions?Chat on WhatsApp

About This Product

SHP414SJ is an SHP-series hydraulic pump used to operate up to four SHC-series SyncHoist cylinders. It has 4 lift points, 700 bar (10,000 psi) maximum pressure and OC valves. The pump is supplied with a 10 HP motor running on 460 V, 3 phase, 60 Hz. Reservoir capacity is 66 gal, and oil flow per outlet at 10,000 psi is 101 in³/min. Weight is 780 kg. Integrated stroke sensors and pressure transducers at each lifting point provide position and load feedback at the operator control station. It is used in lifting and lowering applications.

Features and Benefits

4 lift points, 4 pump outlets
700 bar (10,000 psi) maximum operating pressure
460 V, 3 phase, 60 Hz, 10 HP motor
101 in³/min oil flow per outlet (10,000 psi)
Position and load feedback via integrated stroke sensors and pressure transducers
Optional PLC controls for operator safety
