How can I get a price quote for Enerpac SCH121H?

You can request a fast quote for Enerpac SCH121H from Yılsa Engineering. Reference part number CEY-8EF3B033E0C7. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Enerpac SCH121H in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Enerpac SCH121H genuine and new?

Yes. This Enerpac product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Enerpac SCH121H?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

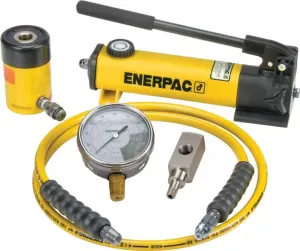

Enerpac SCH121H 12 ton Hollow Cylinder Set

Enerpac SCH121H; 12 ton (125 kN), 42 mm (1.63 in) stroke, 700 bar, hollow hydraulic cylinder and hand pump set.

EnerpacMFR # SCH121HSKU # CEY-8EF3B033E0C7

Country of OriginChina

Collapsed Height120 mm (4.75 in)

Cylinder Capacity & Stroke12 Ton, 1.63" Stroke

Stroke42 mm (1.63 in)

Set Pump TypeHand Pump

Model TypeHand Pump, 12 Ton, 1.63" Stroke

Have questions?Chat on WhatsApp

About This Product

SCH121H is a 12 ton (125 kN) hollow hydraulic cylinder and hand pump set (porta power) from the SCH series, with a 42 mm (1.63 in) stroke. Maximum operating pressure is 700 bar (10,000 psi) and collapsed height is 120 mm (4.75 in). Set contents: P142, RCH121, HB7206, GF120P and GA4. The RCH single-acting hollow cylinder has collar threads in its bore for easy fixturing. The cylinder is supplied with a two-speed pump, a 6 ft (≈1.8 m) hose, a calibrated gauge and a gauge adaptor. It is used across a wide range of pulling, pushing, lifting and tensioning applications.

Features and Benefits

12 ton (125 kN) capacity, 42 mm (1.63 in) stroke
Hollow cylinder with collar threads for easy fixturing
Collapsed height 120 mm (4.75 in)
Includes two-speed pump, hose, calibrated gauge and gauge adaptor
Maximum operating pressure 700 bar (10,000 psi)
Ready set for pulling, pushing, lifting and tensioning

Enerpac SCH121H

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Country of OriginChina

Collapsed Height120 mm (4.75 in)

Cylinder Capacity & Stroke12 Ton, 1.63" Stroke

Stroke42 mm (1.63 in)

Set Pump TypeHand Pump

Model TypeHand Pump, 12 Ton, 1.63" Stroke

Maximum Operating Pressure700 bar (10,000 psi)

Cylinder Advance Capacity125 kN (12 ton)

ApplicationsLift, Push, Pull, Tension

Product LineIndustrial Tools

Product TypeCylinder and Hand Pump Set

SeriesSCH

Set IncludesP142,RCH121,HB7206,GF120P,GA4

Documents & CAD

Series documents 4· shared by this product series

Instruction ManualHydraulic CylinderPDF·271 KB

Instruction ManualHydraulic CylinderPDF·3.7 MB 4 languages· in one file

Repair Parts SheetCylinder - HollowPDF·42 KB·English

BrochureSC-Series Cylinder Pump Sets; EnglishPDF·471 KB
