How can I get a price quote for Enerpac HB7206?

You can request a fast quote for Enerpac HB7206 from Yılsa Engineering. Reference part number CEY-8EF3B033F864. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Enerpac HB7206 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Enerpac HB7206 genuine and new?

Yes. This Enerpac product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Enerpac HB7206?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

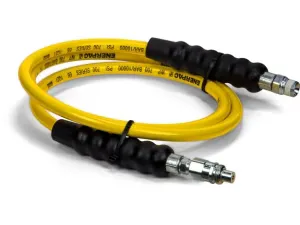

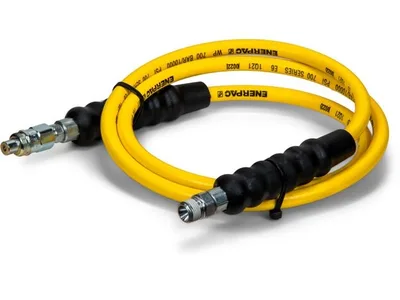

Enerpac HB7206 1.8 m Thermoplastic Hose

Enerpac HB7206; 1.8 m (6 ft), 6.4 mm ID, 700 bar (10,000 psi) thermoplastic high pressure hydraulic hose with 3/8 NPTF and AH630 ends.

EnerpacMFR # HB7206SKU # CEY-8EF3B033F864

Country of OriginGermany

End Two CouplerAH630

Maximum Operating Pressure700 bar (10,000 psi)

Length1,8 m (6 ft)

Capacity57,91 cm³

Internal Diameter6,4 mm (0.25 in)

Have questions?Chat on WhatsApp

About This Product

HB7206 is a 1.8 m (6 ft) thermoplastic high pressure hydraulic hose from the Enerpac H700 series. It has a 6.4 mm (0.25 in) internal diameter and a maximum operating pressure of 700 bar (10,000 psi). One end is 3/8 NPTF and the other end is an AH630 coupler. The hose is designed with a 4:1 safety factor and has two layers of steel wire braid under a polyurethane outer jacket. It weighs 1.0 kg and has an oil capacity of about 57.91 cm³ (3.54 in³).

Features and Benefits

Designed for demanding applications with a 4:1 safety factor
Maximum working pressure of 700 bar (10,000 psi)
Polyurethane outer jacket provides high abrasion resistance
Low volumetric expansion under pressure supports system efficiency
Vinyl strain relief on both ends improves hose life and durability

Enerpac HB7206

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Country of OriginGermany

End Two CouplerAH630

Maximum Operating Pressure700 bar (10,000 psi)

Length1,8 m (6 ft)

Capacity57,91 cm³

Internal Diameter6,4 mm (0.25 in)

Product TypeThermo-plastic Hose

SeriesH700

Oil Capacity3.54 in³

End Two AssemblyAH630

Model Type6 ft., 0.25 in Int. Diam., 3/8" NPTF, AH630 Ends

Product LineIndustrial Tools

End One Coupler3/8" NPTF

Weight1,0 kg (2.2 lbs)

End One Assembly3/8" NPTF

Documents & CAD

Series documents 6· shared by this product series

Instruction ManualHydraulic Hose / FittingsPDF·386 KB

Instruction ManualHose, HydraulicPDF·4.1 MB 4 languages· in one file

BrochureH700-H900-Series High-Pressure Hydraulic Hoses; EnglishPDF·458 KB

BrochureH700-Series High-Pressure Hydraulic Hoses; EnglishPDF·458 KB

BrochureHigh_Pressure_Hydraulic_Hoses_EN-SGPDF·279 KB·English

BrochureSystem Components & Control ValvesPDF·2.8 MB·English
