How can I get a price quote for Enerpac GA4?

You can request a fast quote for Enerpac GA4 from Yılsa Engineering. Reference part number CEY-937FC7807BA7. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Enerpac GA4 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Enerpac GA4 genuine and new?

Yes. This Enerpac product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Enerpac GA4?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

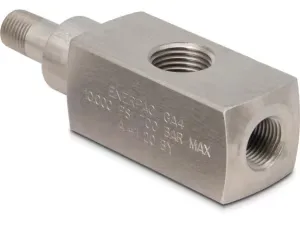

Enerpac GA4 700 bar Gauge Adaptor

Enerpac GA4; 700 bar (10,000 psi) gauge adaptor with 1/2 NPTF gauge port, 1/4 NPTF male and 3/8 NPTF female ends, 111 mm length.

EnerpacMFR # GA4SKU # CEY-937FC7807BA7

Dimension E3/8" NPTF mm

Country of OriginChina

Dimension F32 mm (1.25 in)

Dimension D1/4" NPTF mm

Dimension C1/2" NPTF mm

Maximum Operating Pressure700 bar (10,000 psi)

Have questions?Chat on WhatsApp

About This Product

The GA4 is a gauge adaptor for mounting a pressure gauge into a hydraulic system. Maximum operating pressure is 700 bar (10,000 psi) and the gauge port is 1/2 NPTF. The 1/4 NPTF male end screws into the pump or cylinder port, the 3/8 NPTF female end accepts a hose or coupler, and the third port is for the gauge. Dimensions: A 111 mm, B 35 mm, F 32 mm. It is used on hydraulic pump, cylinder and hose lines to make gauge installation and pressure reading easier.

Features and Benefits

Simplifies mounting a pressure gauge into the system
1/4 NPTF male end screws into the pump or cylinder port
3/8 NPTF female end accepts a hose or coupler
700 bar (10,000 psi) maximum operating pressure
1/2 NPTF gauge port, 111 mm length (A)

Enerpac GA4

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Dimension E3/8" NPTF mm

Country of OriginChina

Dimension F32 mm (1.25 in)

Dimension D1/4" NPTF mm

Dimension C1/2" NPTF mm

Maximum Operating Pressure700 bar (10,000 psi)

Dimension B35 mm (1.38 in)

Dimension A111 mm (4.38 in)

Gauge Port1/2" NPTF

Product LineIndustrial Tools, Workholding Tools

Product TypeGauge Adaptor

Male End1/4" NPTF

SeriesGA

Female End3/8" NPTF

Documents & CAD

Series documents 3· shared by this product series

Instruction ManualHydraulic Gauges Instruction SheetPDF·1.1 MB 4 languages· in one file

BrochureGA-NV-V-Series Gauge Swivel Adaptors Needle Valves; EnglishPDF·291 KB

BrochureSystem Components & Control ValvesPDF·2.8 MB·English

CAD Files 3

3D Model

Alternative Names & Search Terms

GA4GA-4GA 4Enerpac GA4Enerpac GA-4GA4 gauge adaptorGA4 gauge adapterEnerpac GA seriesgauge adaptor1/2 NPTF gauge adaptor1/4 NPTF male end gauge adaptor700 bar gauge adaptor10,000 psi gauge adapterthree-port hydraulic gauge adaptor111 mm gauge adaptoradaptor to mount gauge on pump or cylinder
