How can I get a price quote for Enerpac RLS502?

You can request a fast quote for Enerpac RLS502 from Yılsa Engineering. Reference part number YLSKPFF2FFYVG. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Enerpac RLS502 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Enerpac RLS502 genuine and new?

Yes. This Enerpac product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Enerpac RLS502?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

Enerpac RLS502 50 ton Low Height Cylinder

Enerpac RLS502; 50 ton (444.8 kN) capacity, 60.5 mm stroke, 700 bar maximum operating pressure, single-acting low height hydraulic cylinder.

EnerpacMFR # RLS502SKU # YLSKPFF2FFYVG

Required Oil Capacity373,6 cm³ (22.8 in³)

Ram Bore Diameter88,9 mm (3.50 in)

Maximum Operating Pressure700 bar (10,000 psi)

Product TypeLow Height Cylinder

SeriesRLS

Pressure at Capacity717 bar (10400 psi)

Have questions?Chat on WhatsApp

About This Product

RLS502 is a 50 ton (444.8 kN) single-acting, low height hydraulic cylinder from the RLS series. Stroke is 60.5 mm and maximum operating pressure is 700 bar (10,000 psi). Collapsed height is 122.2 mm and extended height is 182.6 mm. Ram bore is 88.9 mm, effective area is 62.1 cm², required oil capacity is 373.6 cm³ and weight is approximately 10.9 kg (24 lb). The body is steel with a solid plunger. It is suited to lifting, pushing and positioning work in confined spaces.

Features and Benefits

Compact low-profile design
HD spring for fast retraction
Grooved plunger to stabilize the load
Stop ring for piston blow-out protection
Rod wiper protects inner cylinder from dirt
Plated piston to resist scoring and corrosion

Enerpac RLS502

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Required Oil Capacity373,6 cm³ (22.8 in³)

Ram Bore Diameter88,9 mm (3.50 in)

Maximum Operating Pressure700 bar (10,000 psi)

Product TypeLow Height Cylinder

SeriesRLS

Pressure at Capacity717 bar (10400 psi)

Model Type50 Imperial Ton Capacity, 2.38 in. Stroke

Product LineHydraulic Tools

Weight10,9 kg (24.0 lbs)

Cylinder Class50 ton

Country of OriginChina

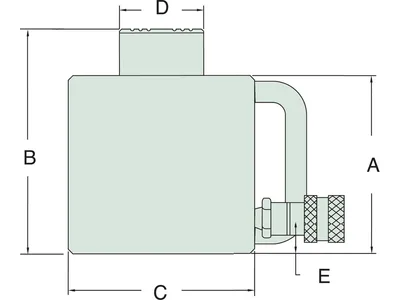

Base to Port Centerline (E)23,6 mm (0.93 in)

Body Outside Diameter (C)123,7 mm (4.87 in)

Cylinder Effective Area62,1 cm² (9.62 in²)

Extended Height (B)182,6 mm (7.19 in)

Capacity444,8 kN (50 ton)

Plunger TypeSolid

Collapsed Height (A)122.2 mm (4.81 in)

Cylinder MaterialSteel

Piston Outside Diameter (D)69,9 mm (2.75 in)

Stroke60.5 mm (2.38 in)

Return TypeSingle-Acting, Spring Return

Documents & CAD

Series documents 1· shared by this product series

CertificateEC2A-CYL-RLS_RevC_June2022PDF·132 KB

Alternative Names & Search Terms

RLS502RLS 502RLS-502rls502Enerpac RLS502Enerpac RLS 502Simplex RLS502Enerpac Simplex RLS502RLS502 hydraulic cylinderRLS502 low height cylinderEnerpac RLS seriesSimplex RLS series50 ton hydraulic cylinder50 ton low height cylinder60.5 mm stroke single-acting cylinder444.8 kN hydraulic cylinder700 bar single-acting cylinder50 ton single-acting cylinderlow profile hydraulic cylinderflat hydraulic cylinderEnerpac 50 ton cylinder
