How can I get a price quote for Enerpac RD2510?

You can request a fast quote for Enerpac RD2510 from Yılsa Engineering. Reference part number CEY-7B4B2D99EB71. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Enerpac RD2510 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Enerpac RD2510 genuine and new?

Yes. This Enerpac product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Enerpac RD2510?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

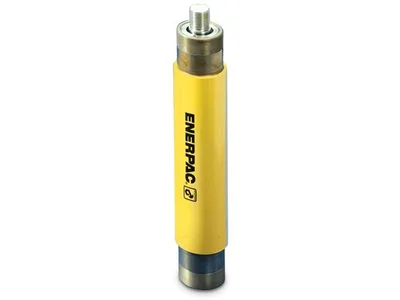

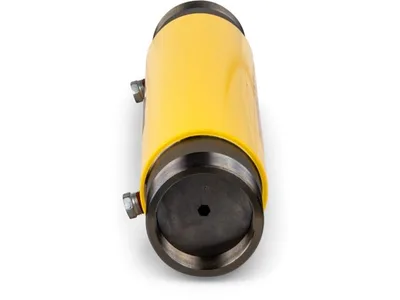

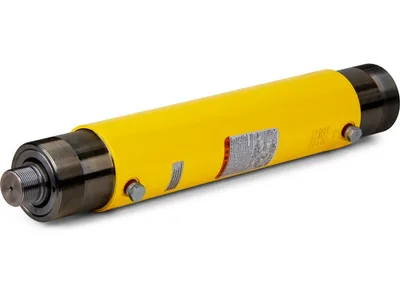

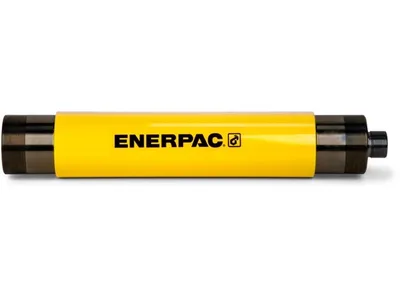

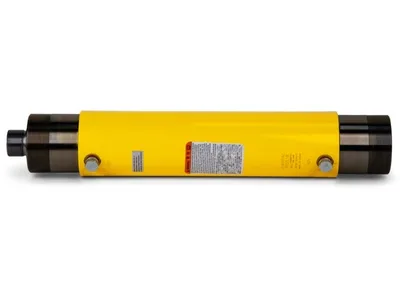

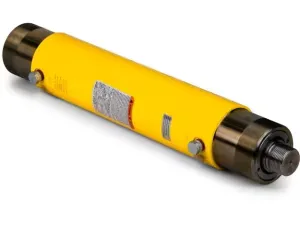

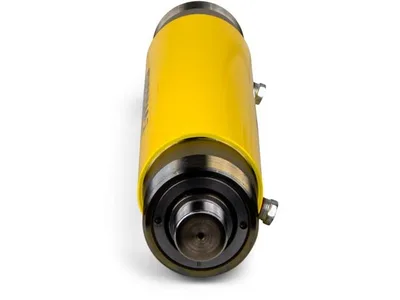

Enerpac RD2510 25 ton Hydraulic Cylinder

Enerpac RD2510; 25 ton (222 kN) capacity, 260 mm (10.25 in) stroke, 700 bar, double-acting general purpose hydraulic cylinder.

EnerpacMFR # RD2510SKU # CEY-7B4B2D99EB71

Oil Capacity (Advance)824 cm³ (50.31 in³)

Clevis Eye Mounting Dimension M53 mm (2.09 in)

Maximum Operating Pressure700 bar (10,000 psi)

Oil Capacity (Retract)356 cm³ (22.01 in³)

ApplicationsLift, Lower, Push, Pull

Maximum Cylinder Capacity (Advance)25 ton

Have questions?Chat on WhatsApp

About This Product

RD2510 is a double-acting general purpose hydraulic cylinder from the Enerpac RD series. It offers 25 ton (222 kN) advance capacity, a 260 mm (10.25 in) stroke and a maximum operating pressure of 700 bar (10,000 psi). Retract capacity is 11 tons. The cylinder has a 63.5 mm bore, 92 mm outside diameter, 499 mm body length and weighs approximately 21 kg (46 lb). Oil capacity is 824 cm³ on advance and 356 cm³ on retract. The plunger outside thread is 1 1/2 in - 12. The surface is painted. It is used for lifting, lowering, pushing and pulling, particularly in production applications and workholding.

Features and Benefits

Designed for long life, a good choice for production applications
Unique mounting configurations simplify fixturing
Baked enamel finish increases corrosion resistance
Double-acting operation develops force in both directions for versatility
Plunger wiper reduces contamination and extends cylinder life
700 bar (10,000 psi) maximum operating pressure

Enerpac RD2510

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Oil Capacity (Advance)824 cm³ (50.31 in³)

Clevis Eye Mounting Dimension M53 mm (2.09 in)

Maximum Operating Pressure700 bar (10,000 psi)

Oil Capacity (Retract)356 cm³ (22.01 in³)

ApplicationsLift, Lower, Push, Pull

Maximum Cylinder Capacity (Advance)25 ton

Outside Diameter D92 mm (3.63 in)

Clevis Eye Mounting Dimension L1892 mm (35.11 in)

Coupler Used-

Cylinder Bore Diameter (E)63,5 mm (2.5 in)

Product TypeGeneral Purpose Cylinder

Neck Length (N)70 mm

Body Length C499 mm (19.61 in)

Plunger Protrusion (K)27 mm

SeriesRD

Bottom to Advance Port (I)89 mm

Top to Retract Port (H)89 mm

Base to Advance Port H85 mm (3.5 in)

Cylinder Capacity Advance at 5000 psi24500 lbs

Max. Cylinder Retract Capacity11 ton

Product LineIndustrial Tools, Workholding Tools

Plunger Outside Thread (Q)1 1/2" - 12

Weight20,3 kg (46 lbs)

Top to Retract Port (I)3.5 in

Surface TreatmentPaint

Cylinder Class25 ton

Country of OriginChina

Neck Length N2.75 in

Clevis Eye Mounting Dimension L631 mm (24.86 in)

Collar Thread Length (X)29 mm (1.13 in)

Plunger External Thread Q1 1/2" - 12

Extended Height (B)786 mm (30.94 in)

Cylinder Effective Area (Advance)31,7 cm² (4.91 in²)

Cylinder Effective Area (Retract)13,7 cm²

Top to Return Port H89 mm (3.5 in)

Plunger TypeSolid

Cylinder Effective Area (Retract)2.15 in²

Collapsed Height (A)526 mm (20.69 in)

Cylinder MaterialSteel

Bottom to Advance Port I3.5 in

Internal Base Thread Length Z11.02 in

Collar Thread (W)3 1/4" - 16

Retract Capacity at 350 bar47,8 kN

Internal Base Thread Length (Z1)26 mm

Stroke260 mm (10.25 in)

Cylinder Retract Capacity (5000 psi)10750 lbs

Cylinder Capacity at 350 bar (Advance)109,0 kN

Minimum Operating Pressure35 bar

Plunger Thread Length (P)25 mm (1 in)

Internal Base Thread Z2 3/4"-16

Return TypeDouble-Acting, Hydraulic Return

Plunger Diameter F47,8 mm (1.88 in)

Link Width N2.75 in

Plunger Protrusion K1.08 in

Internal Base Thread (Z)2 3/4"-16

Saddle Protrusion from Plunger K1.08 in

Documents & CAD

Series documents 5· shared by this product series

Instruction ManualRD & BRD Series JacksPDF·109 KB·English

Instruction ManualRD / BRD Hydraulic CylindersPDF·2.4 MB 4 languages· in one file

Repair Parts SheetParts Kits (Europe Only)PDF·237 KB·English

Repair Parts SheetCylinder - 25 TonPDF·52 KB·English

BrochureRD-AD-Series Precision Production Cylinders; EnglishPDF·255 KB
