How can I get a price quote for Enerpac G2535L?

You can request a fast quote for Enerpac G2535L from Yılsa Engineering. Reference part number CEY-55221B12C37F. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Enerpac G2535L in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Enerpac G2535L genuine and new?

Yes. This Enerpac product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Enerpac G2535L?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

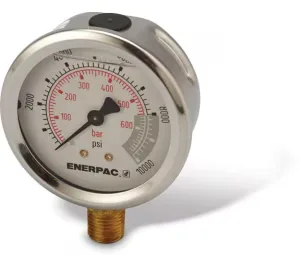

Enerpac G2535L 700 bar Pressure Gauge

Enerpac G2535L; 700 bar (10,000 psi) maximum, 63 mm (2.5 in) face, lower mount, 1/4 NPTF thread, glycerine-filled hydraulic pressure gauge.

EnerpacMFR # G2535LSKU # CEY-55221B12C37F

Dimension EN/A mm

Accuracy (Full Scale)1.5 %

Country of OriginChina

Dimension D84 mm (3.31 in)

Dimension C1/4" NPTF mm

Maximum Operating Pressure700 bar (10,000 psi)

Have questions?Chat on WhatsApp

About This Product

The G2535L is a glycerine-filled hydraulic pressure gauge from the Enerpac G series. The glycerine fill protects the pressure sensing parts from vibration, sudden pressure changes and moisture. The face is calibrated with dual bar and psi scales. It has a maximum operating pressure of 700 bar (10,000 psi), a 63 mm (2.5 in) face and an accuracy of ±1.5% of full scale. Major graduation is 100 bar / 2,000 psi and minor graduation is 10 bar / 200 psi. The gauge is lower mounted with a 1/4 NPTF thread. It is used for pressure monitoring on 700 bar industrial hydraulic pumps, cylinders and workholding systems. For high-cycle applications, a gauge snubber or needle valve is recommended.

Features and Benefits

Calibrated dual scale reading in bar and psi
Pressure sensing parts sealed and dampened by glycerine for long life
Safety blow-out disk and pressure equalizing membrane
±1.5% accuracy of full scale
Lower mount with 1/4 NPTF thread

Enerpac G2535L

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Dimension EN/A mm

Accuracy (Full Scale)1.5 %

Country of OriginChina

Dimension D84 mm (3.31 in)

Dimension C1/4" NPTF mm

Maximum Operating Pressure700 bar (10,000 psi)

Dimension B37 mm (1.46 in)

Minor Graduation10 bar (200 psi)

StyleGlycerine Filled

Major Graduation100 bar (2000 psi)

Product TypePressure Gauge

SeriesG

Dimension A63 mm (2.5 in)

Product LineIndustrial Tools, Workholding Tools

Port Thread1/4 NPTF

Face Diameter63 mm

MountingLower Mount

Documents & CAD

For this product 1

DocumentGaugePDF·225 KB·English

Series documents 6· shared by this product series

Instruction ManualHydraulic Gauges Instruction SheetPDF·1.1 MB 4 languages· in one file

CertificateEC2A-HYDPULLERSLGH_RevD_Oct2022PDF·394 KB

BrochureG-H-Series Hydraulic Pressure Gauges; EnglishPDF·298 KB

BrochureSystem Components & Control ValvesPDF·2.8 MB·English

CAD Files 3

3D Model
