How can I get a price quote for Enerpac AD153?

You can request a fast quote for Enerpac AD153 from Yılsa Engineering. Reference part number CEY-55221B118358. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Enerpac AD153 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Enerpac AD153 genuine and new?

Yes. This Enerpac product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Enerpac AD153?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

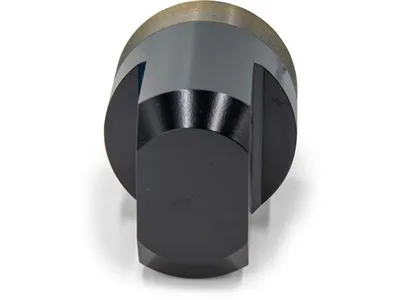

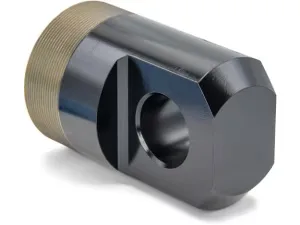

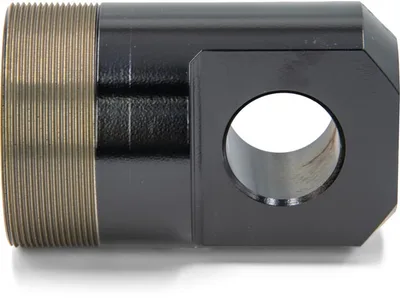

Enerpac AD153 25 ton Clevis Eye

Enerpac AD153; 25 ton class clevis eye with 1.500-12 UNF and 2.750-16 threads for RD series cylinders, threads onto plunger or into cylinder base.

EnerpacMFR # AD153SKU # CEY-55221B118358

Dimension E38 mm (1.5 in)

Country of OriginUnited States

Dimension F25 mm (1 in)

Dimension D31.8 mm (1.25 in)

Compatible Cylinder SeriesRD

Dimension C77.7 mm (3.06 in)

Have questions?Chat on WhatsApp

About This Product

AD153 is a clevis eye from the Enerpac AD series of cylinder accessories. It is designed for 25 ton class RD series cylinders. It threads onto the plunger or into the cylinder base to create a pinned connection point. Dimensions are as follows: A 1.500-12 UNF, B 2.750-16, C 77.7 mm (3.06 in), D 31.8 mm (1.25 in), E 38 mm (1.5 in), F 25 mm (1 in), H 26.9 mm (1.06 in). Country of origin is the United States. It is used in industrial tool and workholding applications. It is a common choice for connecting the cylinder to pivoting mechanisms in push or pull setups.

Features and Benefits

Compatible with 25 ton class RD series cylinders
Threads onto plunger or into cylinder base
Enables pinned, pivoting connections
1.500-12 UNF and 2.750-16 thread sizes
Made in the United States

Enerpac AD153

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Dimension E38 mm (1.5 in)

Country of OriginUnited States

Dimension F25 mm (1 in)

Dimension D31.8 mm (1.25 in)

Compatible Cylinder SeriesRD

Dimension C77.7 mm (3.06 in)

Dimension B2.750-16 mm

Dimension H26.9 mm (1.06 in)

Product TypeClevis Eye

SeriesAD

Capacity Class25 ton

For Use with Cylinder Capacity25 ton

Dimension A1.500-12 UNF mm

Product LineIndustrial Tools, Workholding Tools

Documents & CAD

For this product 1

2D DrawingAD153 drawingPDF·46 KB

Series documents 1· shared by this product series

BrochureRD-AD-Series Precision Production Cylinders; EnglishPDF·255 KB

CAD Files 3

3D Model

Alternative Names & Search Terms

AD153AD-153AD 153ad153Enerpac AD153Enerpac AD-153Enerpac AD 153AD153 clevis eyeEnerpac AD seriesEnerpac RD cylinder accessoryRD cylinder clevis eye25 ton cylinder clevis eyehydraulic cylinder clevisplunger clevis eyecylinder base clevisEnerpac clevis eye
