How can I get a price quote for Enerpac FZ1660?

You can request a fast quote for Enerpac FZ1660 from Yılsa Engineering. Reference part number CEY-55221B117462. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Enerpac FZ1660 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Enerpac FZ1660 genuine and new?

Yes. This Enerpac product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Enerpac FZ1660?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

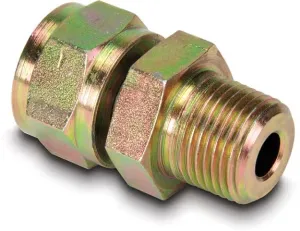

Enerpac FZ1660 700 bar Swivel Fitting

Enerpac FZ1660; high pressure swivel fitting rated 700 bar (10,000 psi), 3/8" NPTF male to 3/8" NPSM female connection.

EnerpacMFR # FZ1660SKU # CEY-55221B117462

Country of OriginUnited States

Connection From3/8" NPTF Male

Dimension D3/8" -18 NPSM

Connection To3/8" NPSM Female

Dimension C3/8" -18 NPTF mm

Maximum Operating Pressure700 bar (10,000 psi)

Have questions?Chat on WhatsApp

About This Product

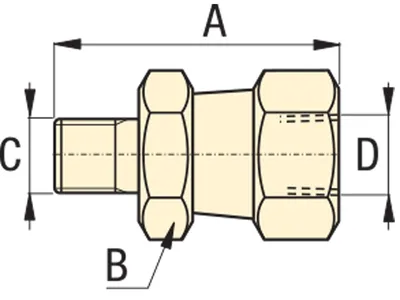

FZ1660 is a high pressure swivel fitting from the Enerpac FZ series. One end is 3/8" NPTF male and the other is 3/8" NPSM female. Maximum operating pressure is 700 bar (10,000 psi). Dimensions are listed as 40 mm (A) and 22 mm (B). The swivel design makes it easier to orient hoses or components during connection. It is used in hydraulic systems to connect hoses, cylinders, components, power sources, tubes and gauges, and is designed to provide flexible, safe and leak-free connections.

Features and Benefits

Maximum operating pressure of 700 bar (10,000 psi)
Swivel-type fitting design
3/8" NPTF male to 3/8" NPSM female connection
Dimensions: 40 mm (A) × 22 mm (B)
Flexible, safe and leak-free hydraulic connection

Enerpac FZ1660

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Country of OriginUnited States

Connection From3/8" NPTF Male

Dimension D3/8" -18 NPSM

Connection To3/8" NPSM Female

Dimension C3/8" -18 NPTF mm

Maximum Operating Pressure700 bar (10,000 psi)

Dimension B22 mm (0.88 in)

Dimension A40 mm (1.59 in)

Product LineIndustrial Tools

Product TypeSwivel

SeriesFZ

Documents & CAD

For this product 1

2D DrawingFZ1660 drawingPDF·1.4 MB

Series documents 3· shared by this product series

CertificateEC2B-C-F_RevH_Oct2022PDF·430 KB

BrochureFZ-BFZ-XSC-Series Fittings; EnglishPDF·333 KB

BrochureSystem Components & Control ValvesPDF·2.8 MB·English

CAD Files 3

3D Model

Alternative Names & Search Terms

FZ1660FZ-1660FZ 1660Enerpac FZ1660Enerpac FZ-1660Enerpac FZ 1660FZ1660 fittingFZ1660 swivel fittingFZ1660 swivelEnerpac FZ seriesEnerpac FZ series fittingEnerpac hydraulic fitting700 bar swivel fitting3/8 NPTF male to 3/8 NPSM female fitting10,000 psi high pressure swivel fitting3/8 NPTF NPSM swivel adapter
