How can I get a price quote for Enerpac RCS101?

You can request a fast quote for Enerpac RCS101 from Yılsa Engineering. Reference part number CEY-8EF3B033E94A. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Enerpac RCS101 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Enerpac RCS101 genuine and new?

Yes. This Enerpac product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Enerpac RCS101?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

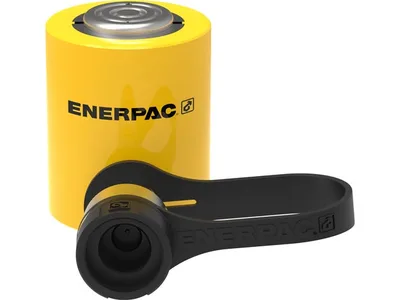

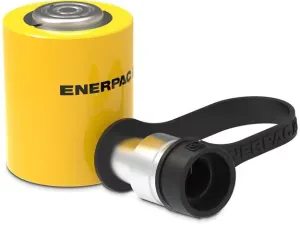

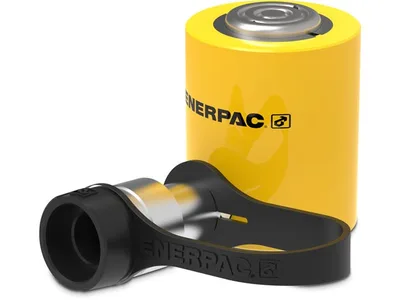

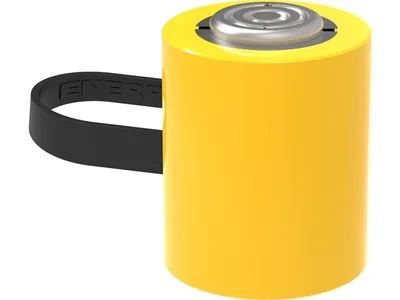

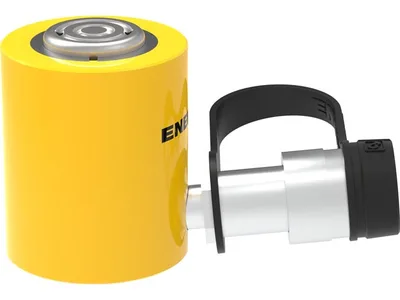

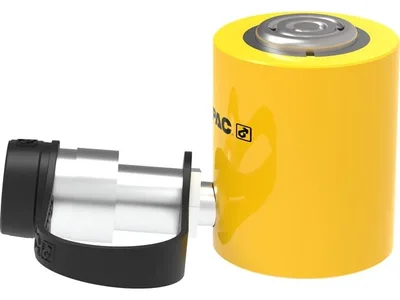

Enerpac RCS101 11.2 ton 38 mm Hydraulic Cylinder

Enerpac RCS101; 11.2 ton capacity, 38 mm (1.50 in) stroke, 88 mm collapsed height, single-acting spring-return low height hydraulic cylinder.

EnerpacMFR # RCS101SKU # CEY-8EF3B033E94A

Cylinder Class10 ton

Stroke38 mm (1.5 in)

Collapsed Height (A)88 mm (3.47 in)

Outside Diameter D69 mm (2.75 in)

Return TypeSingle-Acting, Spring Return

Surface TreatmentPaint

Have questions?Chat on WhatsApp

About This Product

RCS101 is a low height hydraulic cylinder from the RCS series. It offers 11.2 ton capacity and a 38 mm (1.50 in) stroke. It is single-acting with spring return. Collapsed height is 88 mm, outside diameter is 69 mm and weight is 2.7 kg. It has a painted finish and ships with a CR-400 coupler and dust cap. The grooved plunger end with threaded holes accepts tilt saddles. It is used for general lifting, pushing and production applications in confined spaces, in vertical or horizontal orientation.

Features and Benefits

Lightweight, low profile design for confined spaces
Spring return for faster plunger retraction
Baked enamel finish for increased corrosion resistance
Plunger wiper reduces contamination and extends cylinder life
CR-400 coupler and dust cap included
Grooved plunger end with threaded holes for tilt saddles

Enerpac RCS101

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Cylinder Class10 ton

Stroke38 mm (1.5 in)

Collapsed Height (A)88 mm (3.47 in)

Outside Diameter D69 mm (2.75 in)

Return TypeSingle-Acting, Spring Return

Surface TreatmentPaint

Weight2,7 kg (6 lbs)

Oil Capacity (Advance)55 cm³ (3.35 in³)

Maximum Operating Pressure700 bar (10,000 psi)

ApplicationsLift, Push

Maximum Cylinder Capacity (Advance)101 kN (11.2 ton)

Coupler UsedCR400 Coupler

Cylinder Bore Diameter (E)42,9 mm (1.69 in)

Product TypeLow Height Cylinder

SeriesRCS

Bolt Circle U26 mm (1.03 in)

Plunger Internal ThreadM4

Base to Advance Port H17 mm (0.69 in)

Model Type11.2 Ton Capacity, 1.50 in. Stroke

Product LineIndustrial Tools

Saddle Maximum Tilt Angle5 degrees

Saddle Diameter J35 mm (1.38 in)

Country of OriginChina

Saddle Diameter J135 mm

Extended Height (B)126 mm (4.97 in)

Cylinder Effective Area (Advance)14,5 cm² (2.24 in²)

Plunger TypeSolid

Cylinder MaterialSteel

Optional Tilt Saddle Addition to Collapsed Height (A1)20 mm (0.79 in)

Saddle Protrusion from Plunger K5 mm (0.2 in)

Saddle Protrusion from Plunger K15 mm

Plunger Thread Length (P)8 mm (0.32 in)

Plunger Diameter F38,1 mm (1.5 in)

Documents & CAD

Series documents 6· shared by this product series

Instruction ManualHydraulic CylinderPDF·271 KB

Instruction ManualHydraulic CylinderPDF·3.7 MB 4 languages· in one file

Repair Parts SheetHydraulic Cylinders - RCS - 101, 201, 302, 502, 1002PDF·73 KB·English

Repair Parts SheetHydraulic Cylinders - RCS101, RCS201, RCS302, RCS502, RCS1002PDF·194 KB·Español

Repair Parts SheetHydraulic Cylinders - RCS101, RCS201, RCS302, RCS502, RCS100224PDF·319 KB 3 languages· in one file

BrochureRSM-RCS-Series Low-Height Cylinders; EnglishPDF·310 KB

CAD Files 3

3D Model
