How can I get a price quote for Enerpac RCH302?

You can request a fast quote for Enerpac RCH302 from Yılsa Engineering. Reference part number CEY-8EF3B033E97B. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Enerpac RCH302 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Enerpac RCH302 genuine and new?

Yes. This Enerpac product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Enerpac RCH302?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

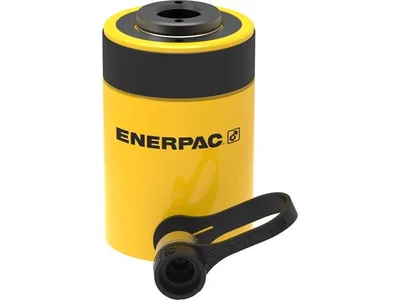

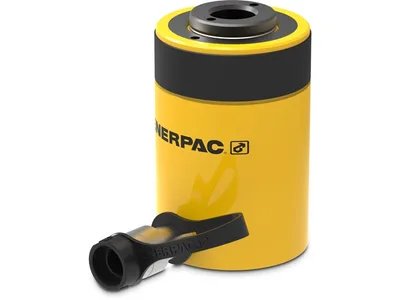

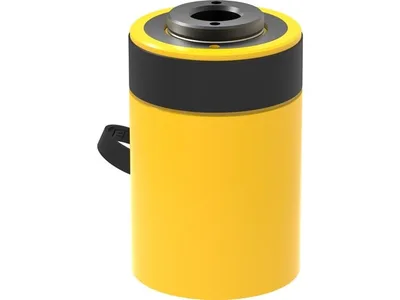

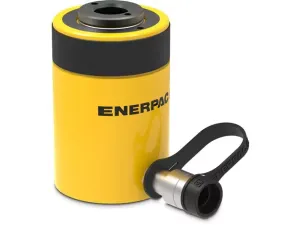

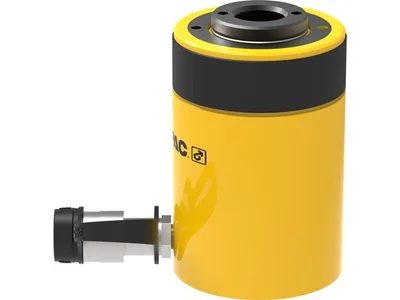

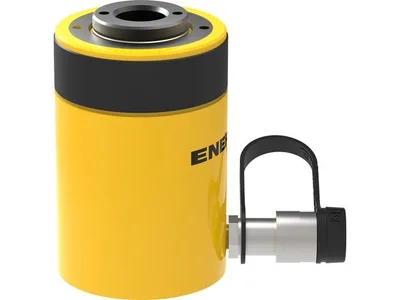

Enerpac RCH302 36.1 ton Hollow Plunger Cylinder

Enerpac RCH302; 36.1 ton capacity, 64 mm stroke, 700 bar, single-acting spring-return hollow plunger hydraulic cylinder.

EnerpacMFR # RCH302SKU # CEY-8EF3B033E97B

Cylinder Class30 ton

Stroke64 mm (2.5 in)

Collapsed Height (A)178 mm (7.03 in)

Outside Diameter D114 mm (4.5 in)

Return TypeSingle-Acting, Spring Return

Base Mounting Holes Bolt Circle U92,2 mm (3.63 in)

Have questions?Chat on WhatsApp

About This Product

RCH302 is a single-acting hydraulic cylinder from the RCH hollow plunger series, with 36.1 ton capacity and 64 mm (2.50 in) stroke. It uses a spring return and is rated for 700 bar (10,000 psi). The hollow plunger design supports pushing, pulling and lifting. Collapsed height is 178 mm, outside diameter is 114 mm and weight is 10.9 kg. Base mounting holes (92.2 mm bolt circle) and a 4 1/2"-12 collar thread ease fixturing. The nickel-plated floating center tube used on models over 20 tons reduces side load damage. It is used in testing, maintenance and tensioning applications. It comes with a CR400 coupler.

Features and Benefits

36.1 ton capacity, 64 mm stroke, 700 bar pressure rating
Hollow plunger design for push and pull force
Single-acting with spring return
Nickel-plated floating center tube increases product life
Base mounting holes (92.2 mm bolt circle) and collar threads
Baked enamel finish for corrosion resistance

Enerpac RCH302

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Cylinder Class30 ton

Stroke64 mm (2.5 in)

Collapsed Height (A)178 mm (7.03 in)

Outside Diameter D114 mm (4.5 in)

Return TypeSingle-Acting, Spring Return

Base Mounting Holes Bolt Circle U92,2 mm (3.63 in)

Collar Thread (W)4 1/2" - 12

Surface TreatmentPaint

Weight10,9 kg (24 lbs)

Oil Capacity (Advance)298 cm³ (18.05 in³)

Base Mounting Holes Thread Depth Z14,0 mm (0.55 in)

Maximum Operating Pressure700 bar (10,000 psi)

ApplicationsLift, Push, Pull, Tension

Base Mounting Holes Thread V3/8"-16 unc

Maximum Cylinder Capacity (Advance)326 kN (36.1 ton)

Coupler UsedCR400 Coupler

Cylinder Bore Diameter (E)88,9 mm (3.5 in)

Product TypeHollow Plunger Cylinder

SeriesRCH

Plunger Internal Thread1 13/16" - 16 un

Base to Advance Port H21 mm (0.85 in)

Model Type36.1 Ton, 2.5" Stroke, 1.31" Hole Diam.

Product LineIndustrial Tools

Plunger Internal Thread O1 13/16" - 16 un

Saddle Diameter J63 mm (2.5 in)

Country of OriginChina

Collar Thread Length (X)42 mm (1.66 in)

Center Hole Diameter Y33,3 mm (1.31 in)

Saddle Diameter J163 mm

Extended Height (B)242 mm (9.53 in)

Cylinder Effective Area (Advance)46,6 cm² (7.22 in²)

Plunger TypeHollow

Cylinder MaterialSteel

Saddle Protrusion from Plunger K9,0 mm (0.38 in)

Saddle Protrusion from Plunger K19,0 mm

Plunger Thread Length (P)22 mm (0.88 in)

Plunger Diameter F63,5 mm (2.5 in)

Set IncludesCR400

Documents & CAD

Series documents 5· shared by this product series

Instruction ManualHydraulic CylinderPDF·271 KB

Instruction ManualHydraulic CylinderPDF·3.7 MB 4 languages· in one file

Repair Parts SheetHollow Cylinders, RCH-202 / 302; RWH-202 / 302; RCH-206 / 306PDF·360 KB·English

Repair Parts SheetCylinder - 30 TonPDF·380 KB·English

BrochureRCH-Series Hollow Plunger Cylinders; EnglishPDF·323 KB

CAD Files 3

3D Model
